Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 1.85 mm |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Coupling | Threaded |
| Mounting Type | PCB Edge Launch |
| Termination Style | Solder |
| Number of Ports | Single |
| Finish | Gold |
| Body Style | Jamnut/Bulkhead |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 67 GHz |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 5 - 7 in - lbs |
| Inter-mate ability | 2.4mm |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 1.85 mm |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Coupling | Threaded |
| Mounting Type | PCB Edge Launch |
| Termination Style | Solder |
| Number of Ports | Single |
| Finish | Gold |
| Body Style | Jamnut/Bulkhead |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 67 GHz |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 5 - 7 in - lbs |
| Inter-mate ability | 2.4mm |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
3321-00003
1.85mm Connectors 3321-00003
Part # 1521-00010

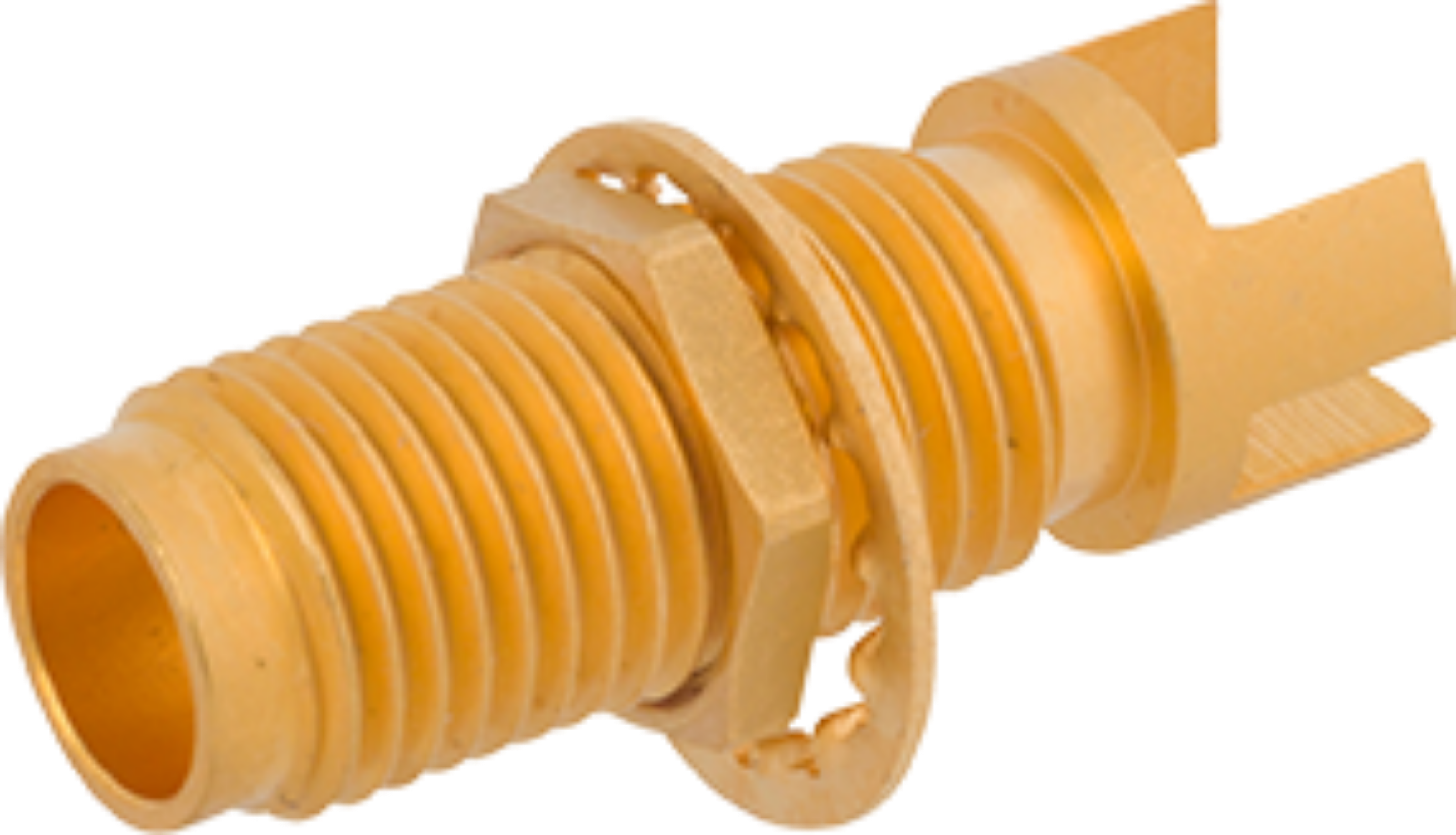

2.92mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness
Available Inventory: 146
1521-00010
2.92mm Connectors 1521-00010
Part # 1621-00003

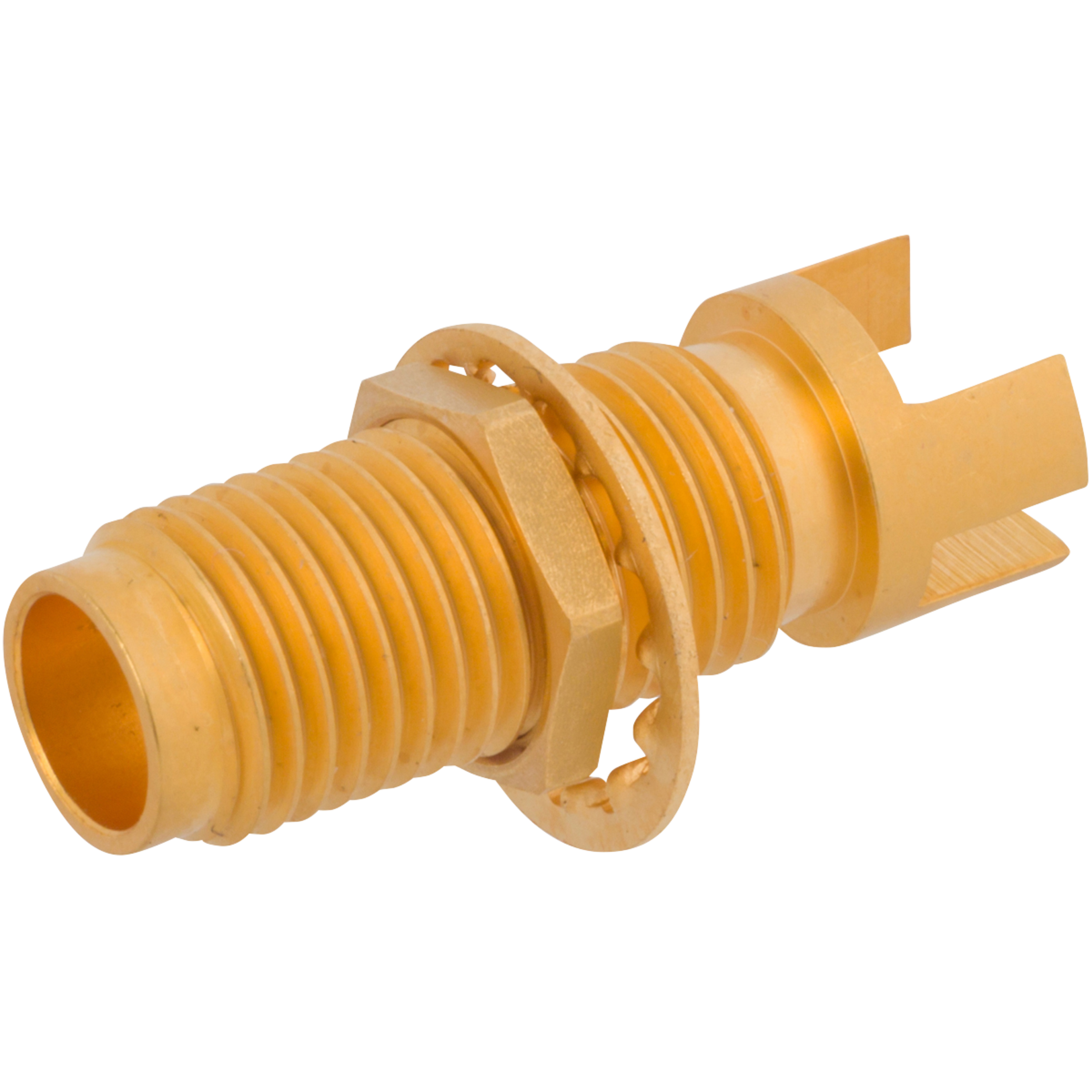

2.4mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness
