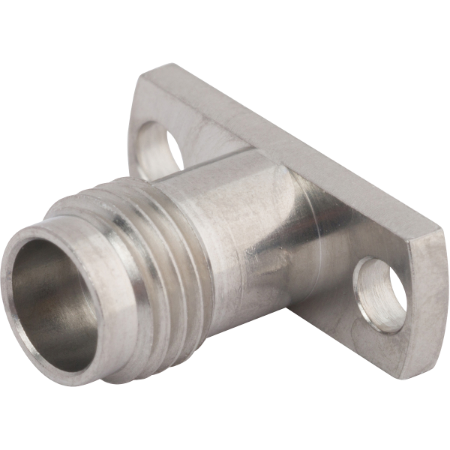

Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 1.85 mm |
| Coupling | Threaded |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Mounting Type | Panel |
| Body Style | 2 Hole |
| Number of Ports | Single |
| Finish | Passivated |
| Electrical | |
| Frequency | 65 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Inter-mate ability | 2.4mm |
| Mating Torque | 5 - 7 in - lbs |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 1.85 mm |
| Coupling | Threaded |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Mounting Type | Panel |
| Body Style | 2 Hole |
| Number of Ports | Single |
| Finish | Passivated |
| Electrical | |
| Frequency | 65 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Inter-mate ability | 2.4mm |
| Mating Torque | 5 - 7 in - lbs |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed

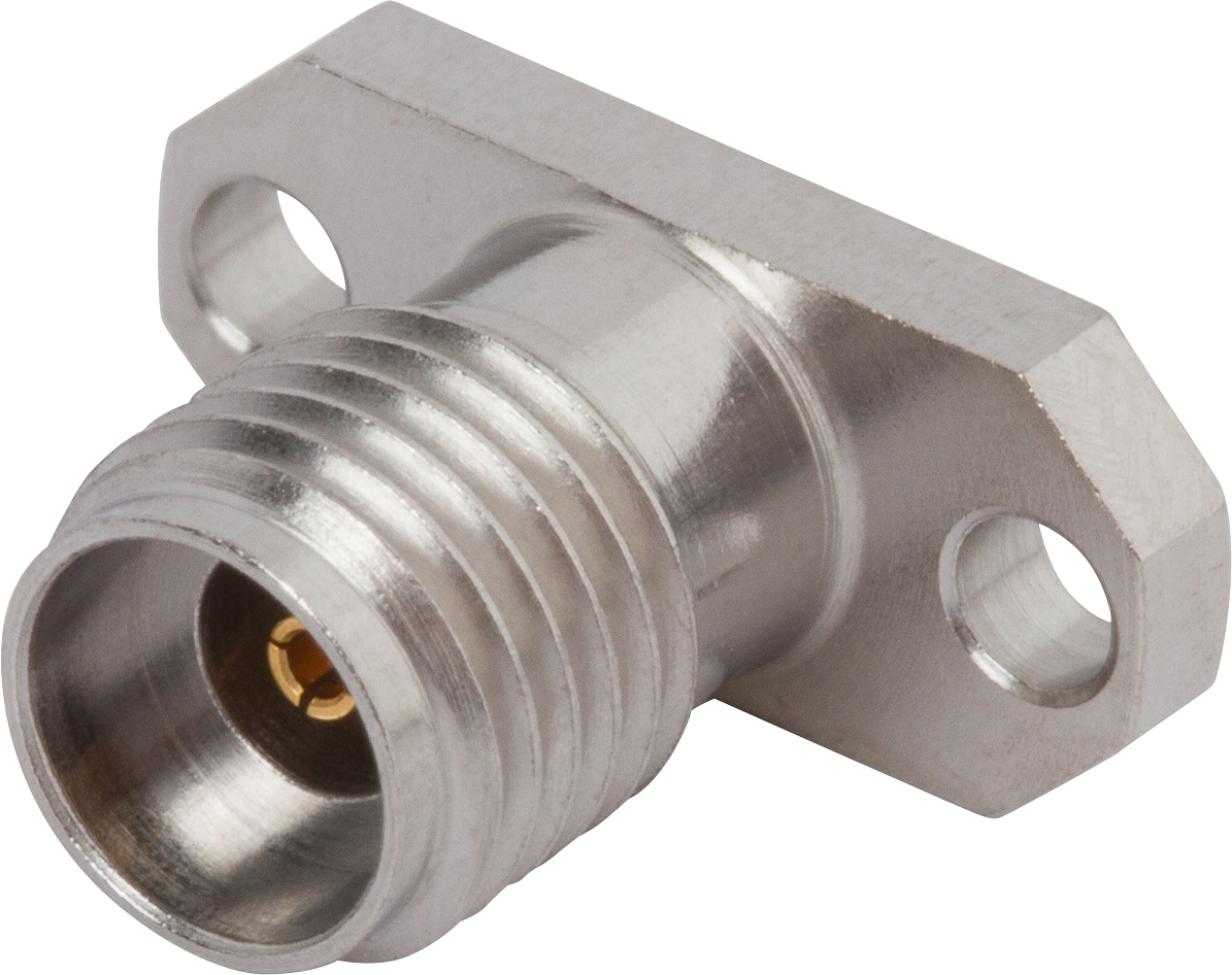

Part # SF1552-6002
2.92mm Female Flange Mount Connector, 2 Hole (Accepts Ø.012 Pin)
Available Inventory: 876
SF1552-6002
2.92mm Connectors SF1552-6002

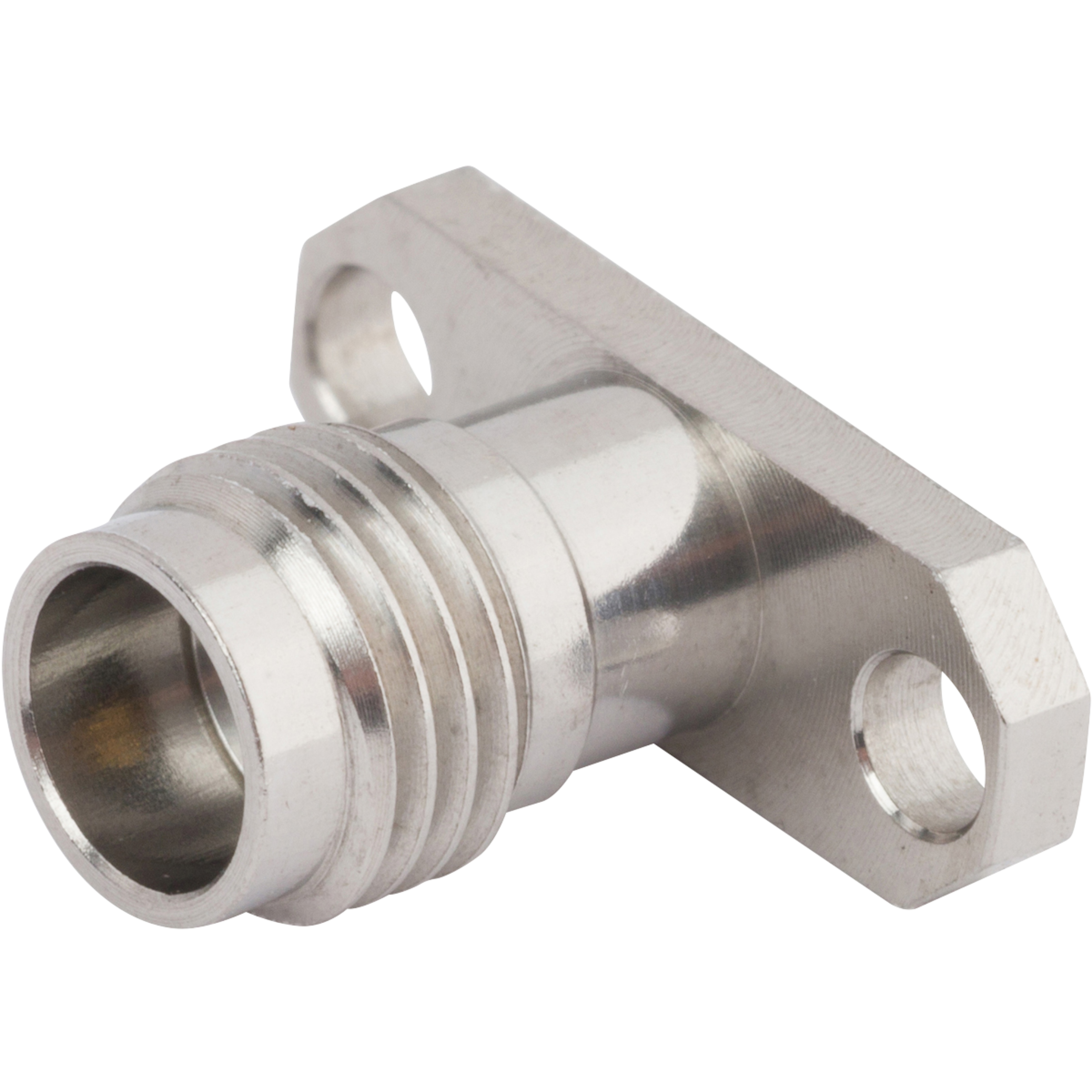

Part # SF1621-60017
2.4mm Female Flange Mount Connector, 2 Hole (Accepts Ø.012 Pin)
Available Inventory: 27
SF1621-60017
2.4mm Connectors SF1621-60017

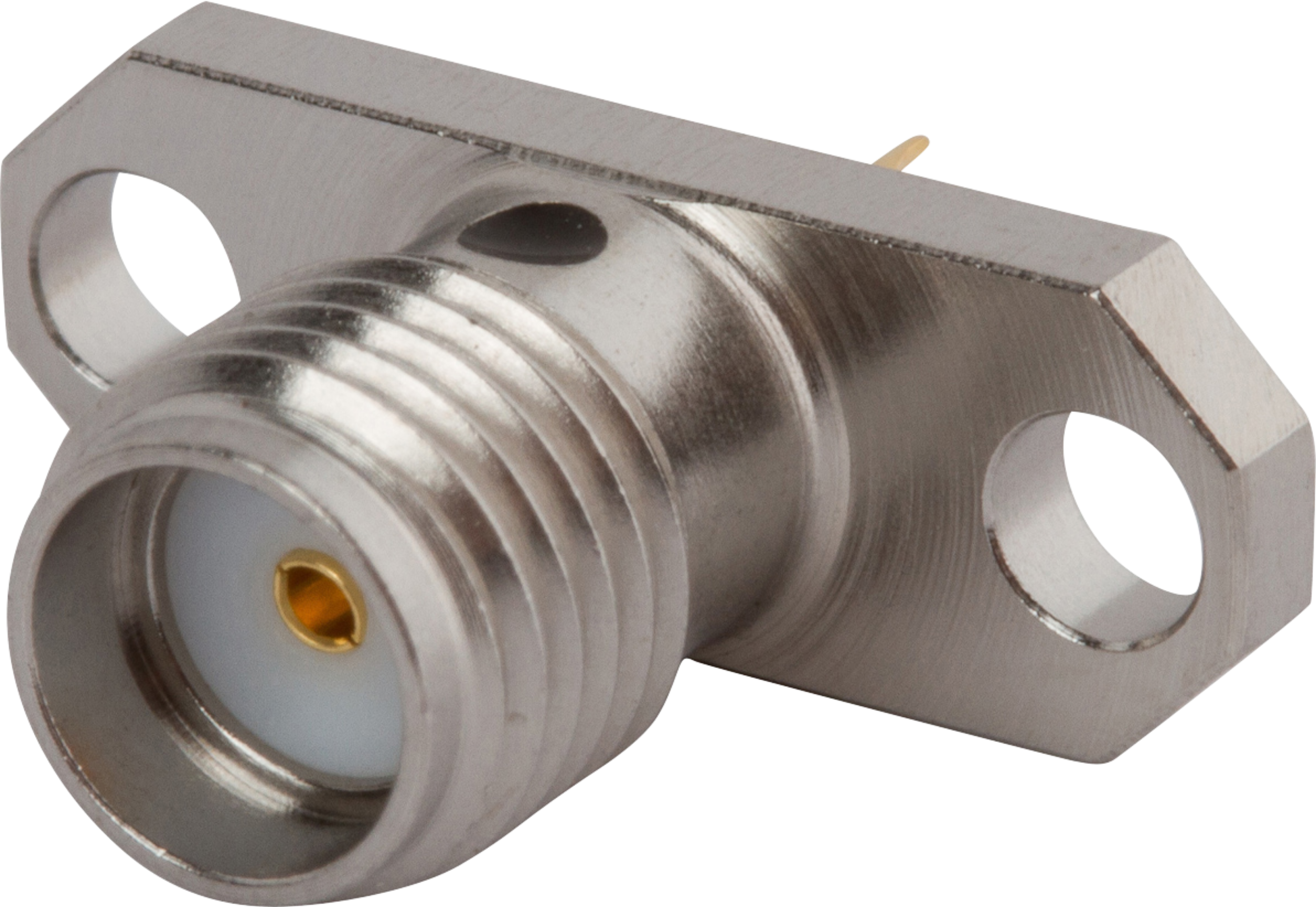

SF2950-6062
