Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | Solderless |
| RF Series | 1.85 mm |
| Gender | Plug (Male) |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| Mounting Type | PCB Vertical Launch |
| Body Style | 2 Hole |
| Termination Style | Solder-free |
| Finish | Passivated |
| Electrical | |
| Frequency | 65 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Torque | 5 - 7 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | 2.4mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | Solderless |
| RF Series | 1.85 mm |
| Gender | Plug (Male) |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| Mounting Type | PCB Vertical Launch |
| Body Style | 2 Hole |
| Termination Style | Solder-free |
| Finish | Passivated |
| Electrical | |
| Frequency | 65 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Torque | 5 - 7 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | 2.4mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Customers Also Viewed
Part # SF3321-60024-1S
1.85mm Female Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (CPW / Microstrip)
Available Inventory: 344
SF3321-60024-1S
1.85mm Connectors SF3321-60024-1S
Part # SF3311-60014-2S
1.85mm Male Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (CPW / Microstrip)
Available Inventory: 0
SF3311-60014-2S
1.85mm Connectors SF3311-60014-2S

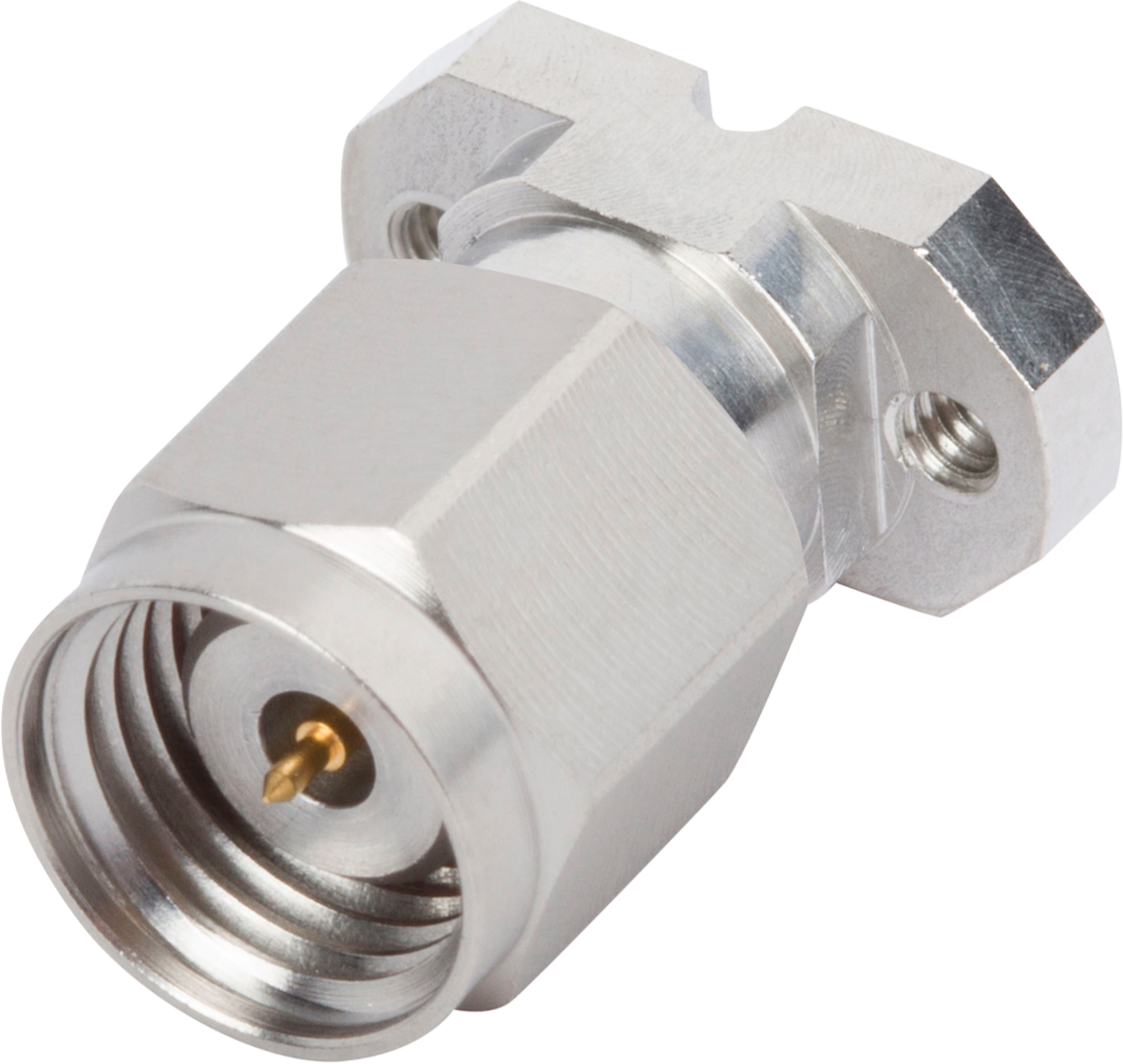

Part # SF3311-60014
