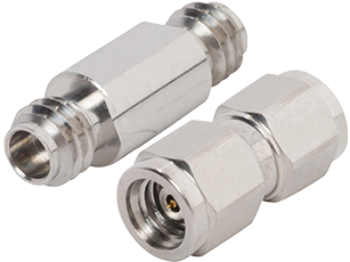

1mm Adapters

SV Microwave has just released a set of high-performance 1mm adapters. Ideal for test and measurement and semiconductor markets, these adapters are designed for ultra-broadband RF performance from DC to 110 GHz. Ruggedized and durable, SV's 1mm adapters are a perfect complement to our millimeter-wave product line.

Features / Benefits & Applications
Technical Specs
Additional Resources

Features / Benefits:

Rugged, durable
Overall small footprint
DC – 110 GHz

Applications:

Test and Measurement
High Speed Digital
Instrumentation

1mm

Impedance (Ω)	50
Frequency GHz	110 GHz
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Mating Torque	3-5 in-lbs
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
