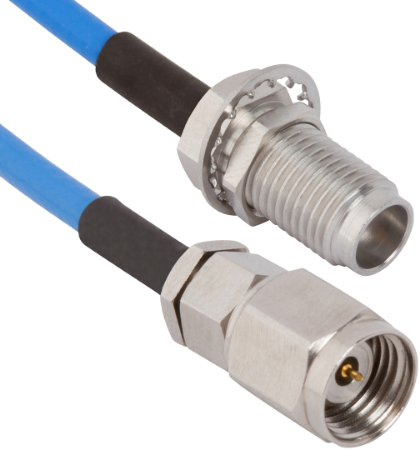

Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 2.4 mm |
| Coupling | Threaded |
| Orientation (Body) | Straight |
| RF Series 2 | 2.4 mm |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.085 Flexible Coax |
| Gender | Jack (Female) |
| Gender 2 | Plug (Male) |
| Cable Length | 6" |
| Body Style | Jamnut/Bulkhead |
| Electrical | |
| Frequency | 50 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Torque | 5 - 7 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | 1.85mm |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 2.4 mm |
| Coupling | Threaded |
| Orientation (Body) | Straight |
| RF Series 2 | 2.4 mm |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.085 Flexible Coax |
| Gender | Jack (Female) |
| Gender 2 | Plug (Male) |
| Cable Length | 6" |
| Body Style | Jamnut/Bulkhead |
| Electrical | |
| Frequency | 50 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Torque | 5 - 7 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | 1.85mm |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed

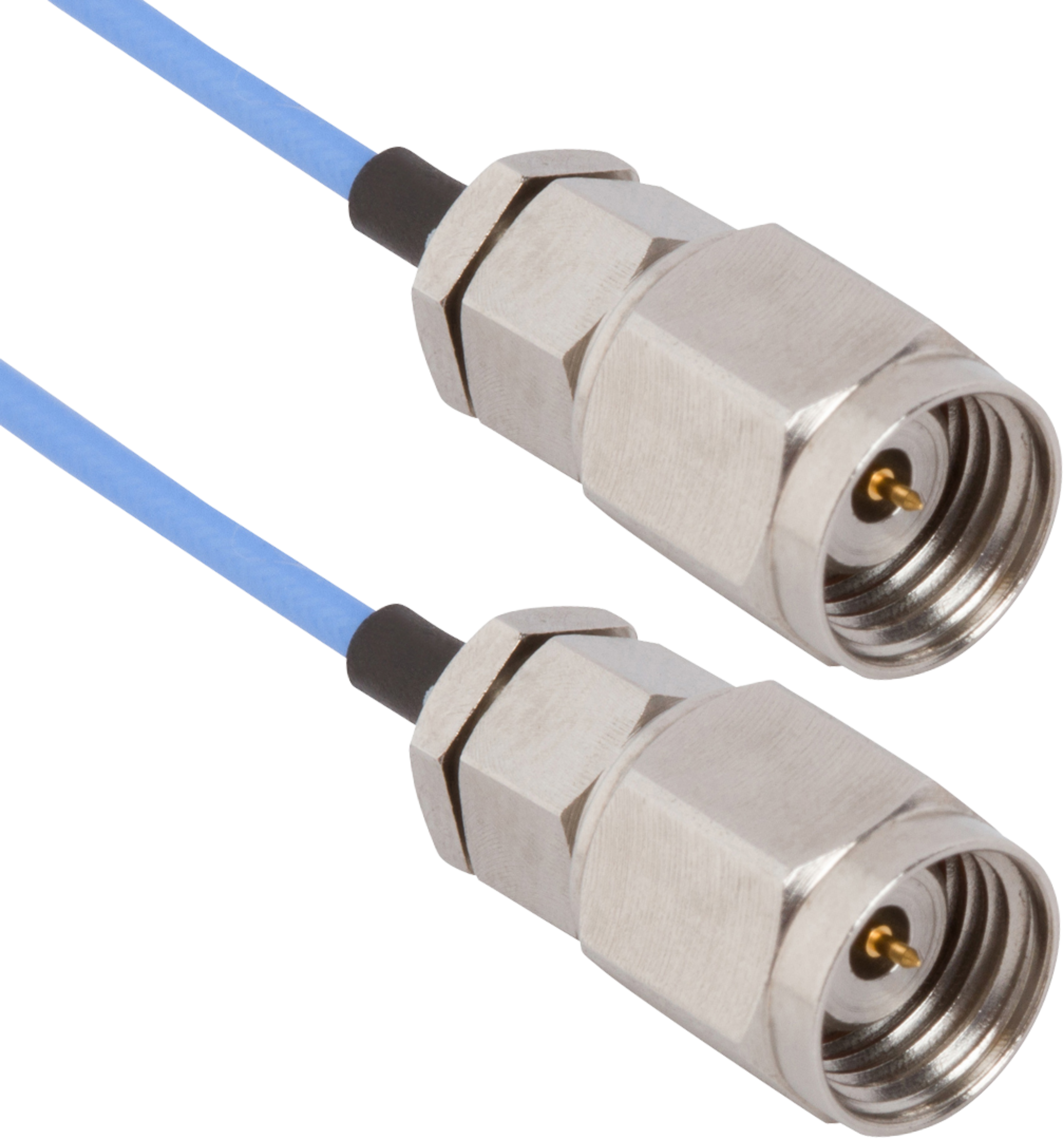

7016-0056
2.4mm Cable Assemblies 7016-0056
7016-0059
2.4mm Cable Assemblies 7016-0059

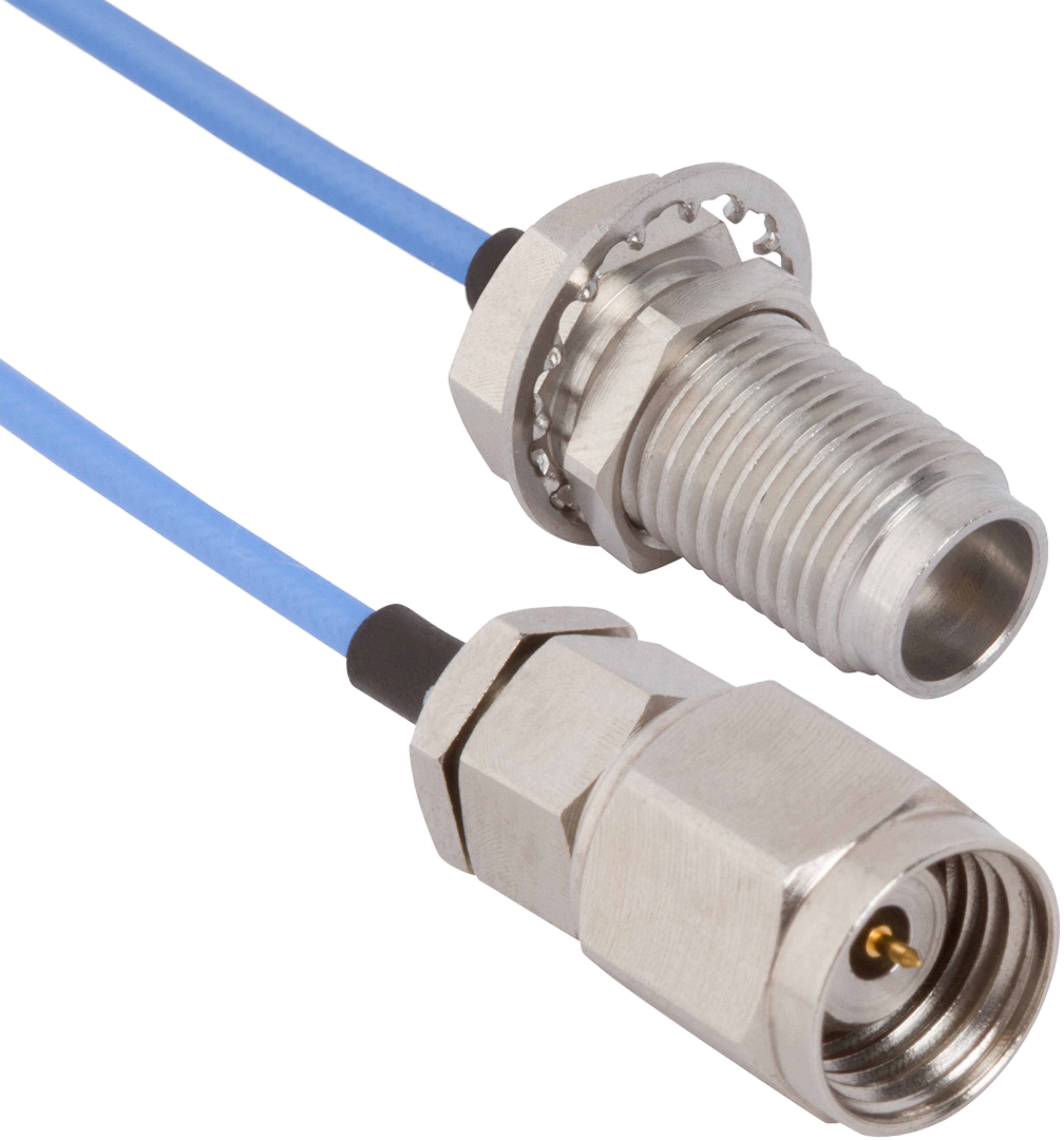

Part # 7016-0128
