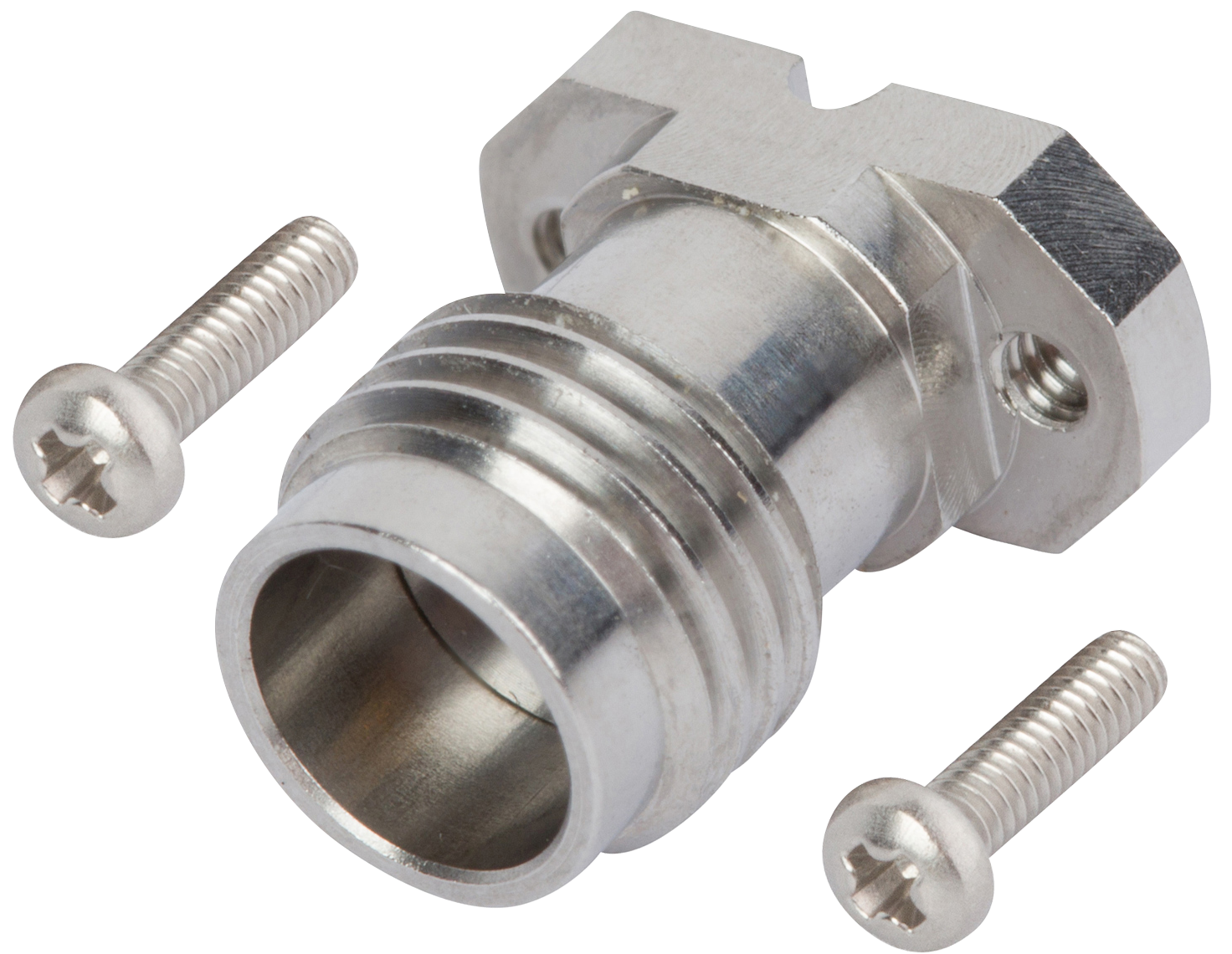

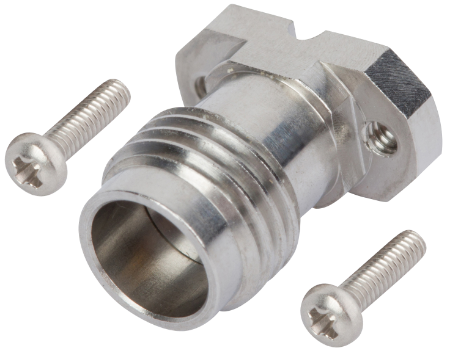

2.4mm Female Solderless LiteTouch PCB Connector, 2 Hole, with 4.76mm Screws (CPW / Microstrip)
P/N: SF1621-60048-1S

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family LiteTouch
RF Series 2.4 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 50 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family LiteTouch
RF Series 2.4 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 50 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
SF1621-60048
2.4mm Connectors SF1621-60048
Datasheet
Part #   SF1621-60049

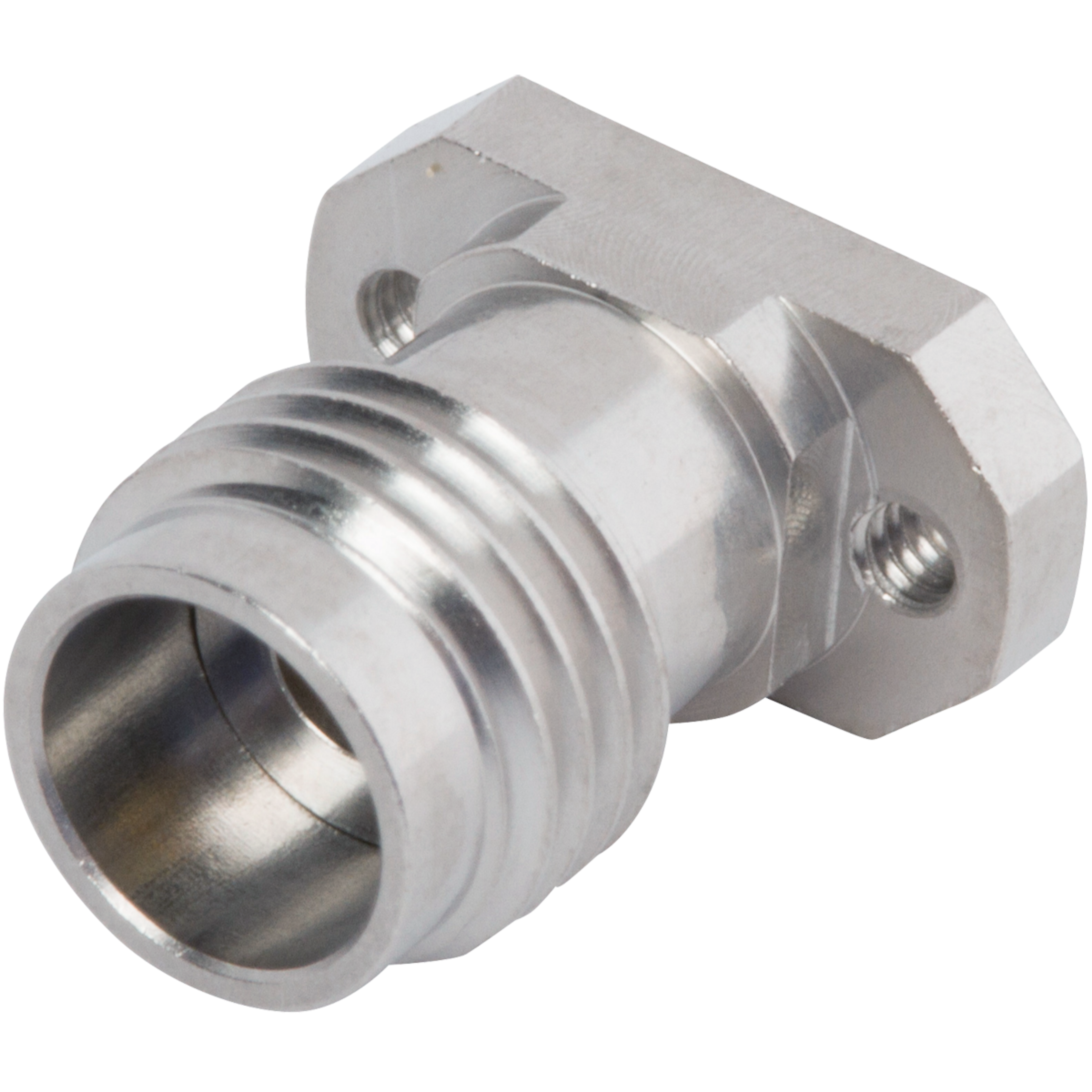

2.4mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)

Available Inventory: 1130
SF1621-60049
2.4mm Connectors SF1621-60049
Datasheet

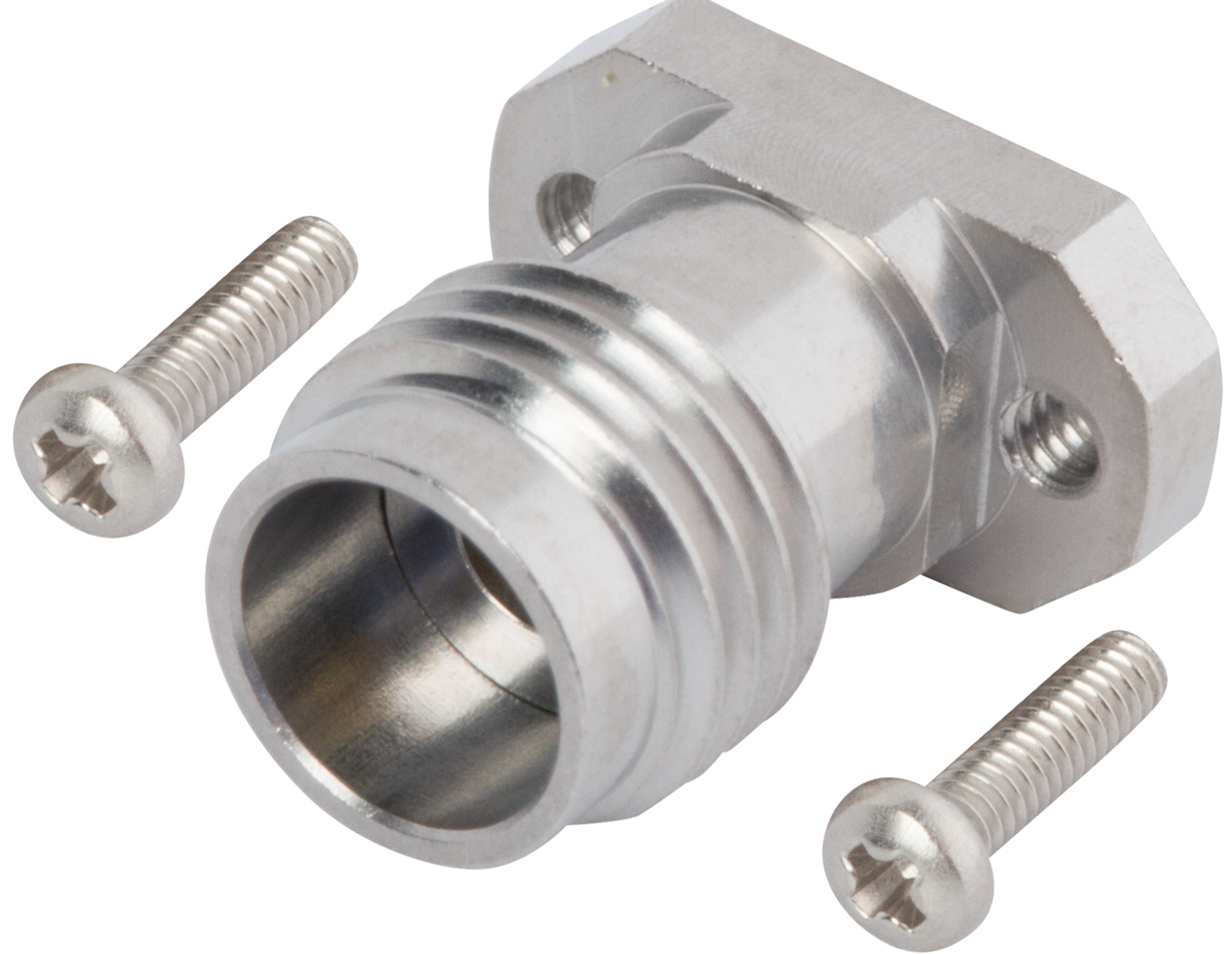

SF1621-60049-1S
