Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 2.4 mm |
| Coupling | Threaded |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Detent | Full Detent |
| Finish | Passivated |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMPM |
| Orientation 2 (Body) | Straight |
| Electrical | |
| Frequency | 50 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 5 - 7 in - lbs |
| Inter-mate ability | 1.85mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| EU REACH Regulation (EC) No. 1907/2006 | SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. | |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 2.4 mm |
| Coupling | Threaded |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Detent | Full Detent |
| Finish | Passivated |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMPM |
| Orientation 2 (Body) | Straight |
| Electrical | |
| Frequency | 50 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 5 - 7 in - lbs |
| Inter-mate ability | 1.85mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
SF1133-6008

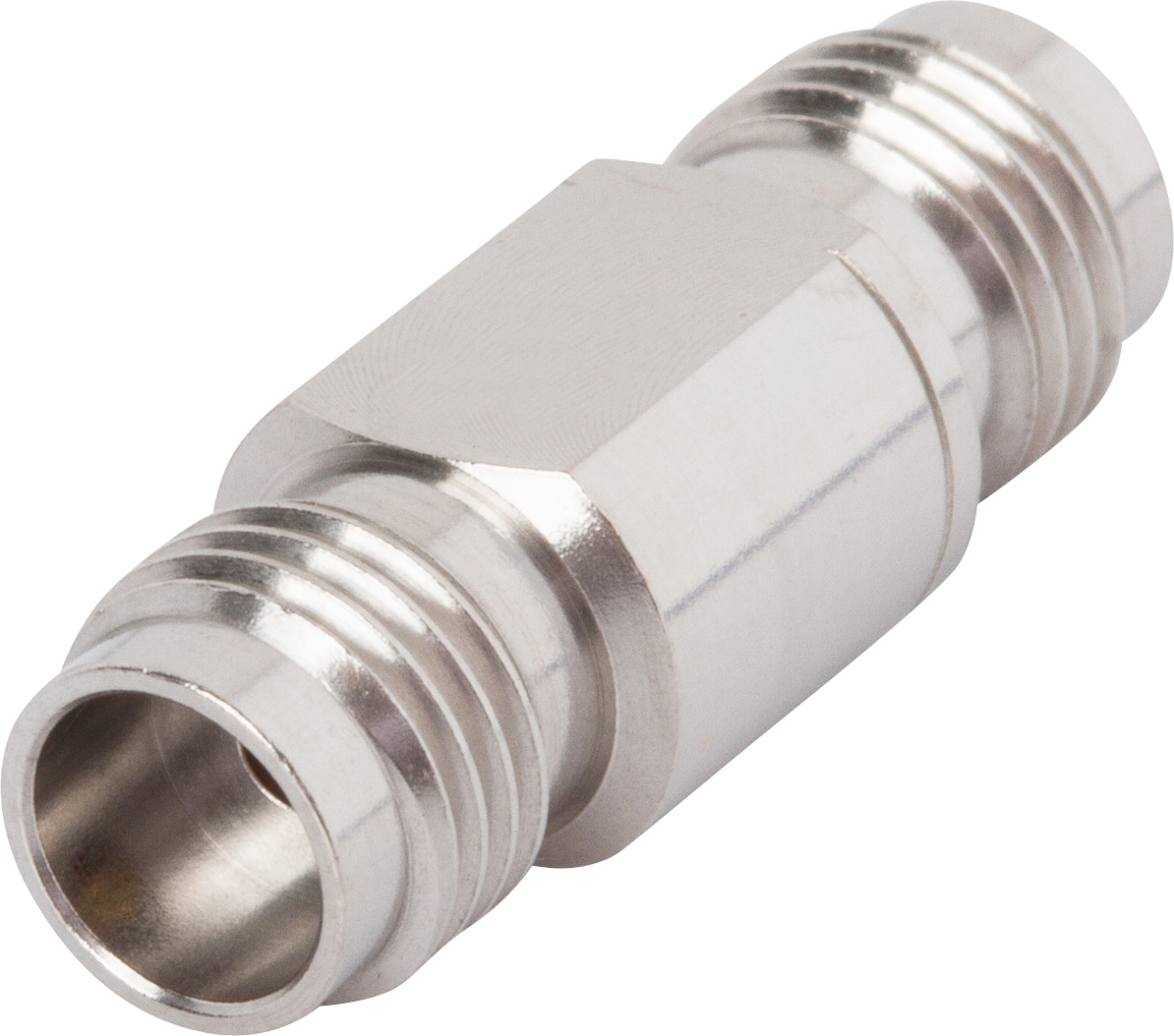

1.85mm Adapters SF1133-6008
1138-6009
SMPS Adapters 1138-6009
SF1116-6070

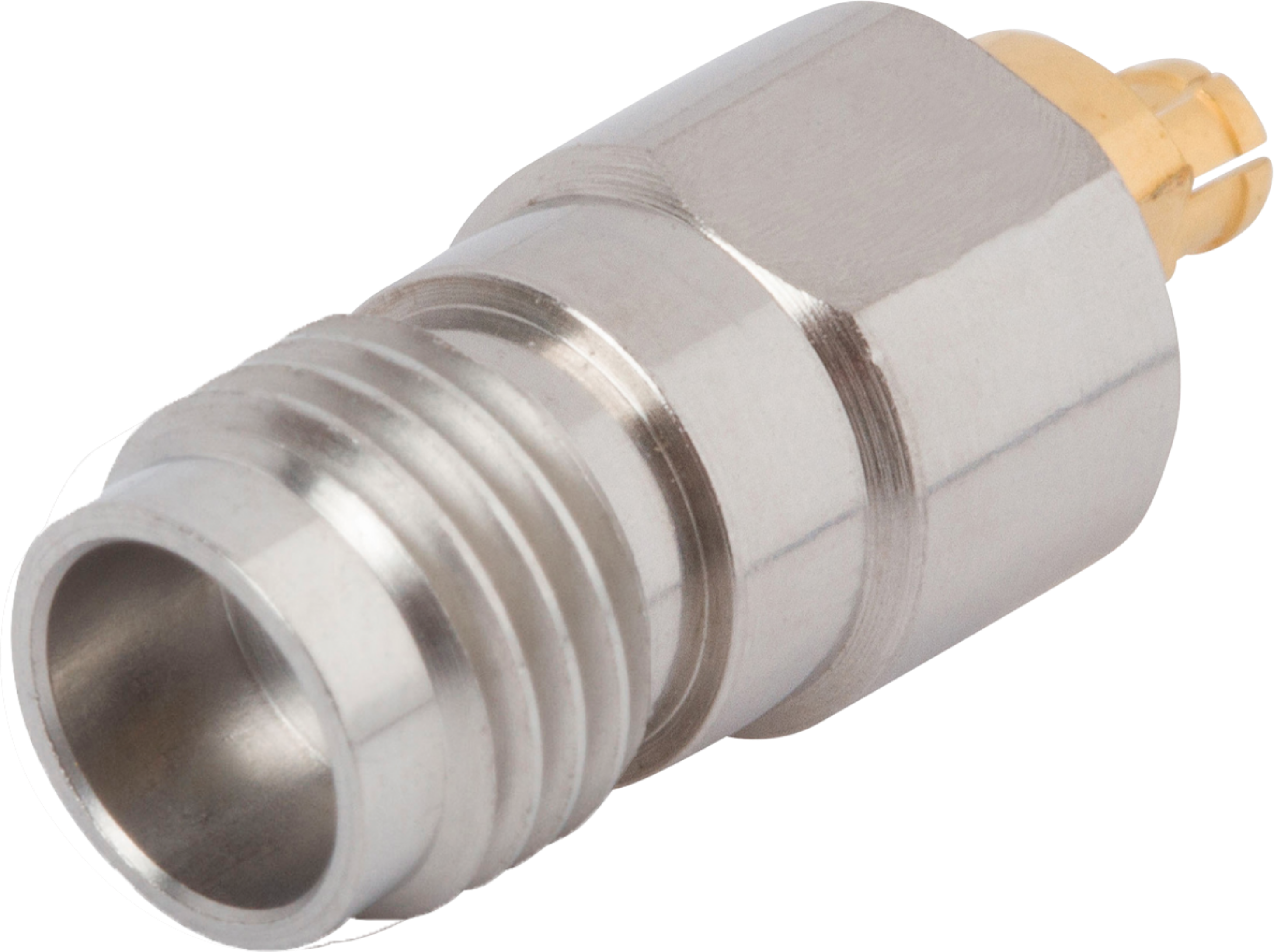

2.4mm Adapters SF1116-6070
