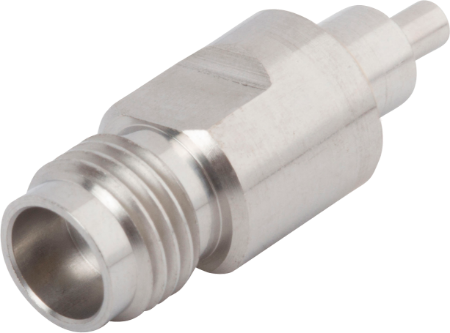

Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 2.4 mm |
| Coupling | Threaded |
| Gender | Jack (Female) |
| Detent | Smooth Bore |
| Finish | Passivated |
| RF Series 2 | SMPS |
| Gender 2 | Plug (Male) |
| Orientation 2 (Body) | Straight |
| Orientation (Body) | Straight |
| Electrical | |
| Frequency | 50 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Inter-mate ability | 1.85mm |
| Mating Cycles | 500 |
| Mating Torque | 5 - 7 in - lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | 2.4 mm |
| Coupling | Threaded |
| Gender | Jack (Female) |
| Detent | Smooth Bore |
| Finish | Passivated |
| RF Series 2 | SMPS |
| Gender 2 | Plug (Male) |
| Orientation 2 (Body) | Straight |
| Orientation (Body) | Straight |
| Electrical | |
| Frequency | 50 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Inter-mate ability | 1.85mm |
| Mating Cycles | 500 |
| Mating Torque | 5 - 7 in - lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
Customers Also Viewed

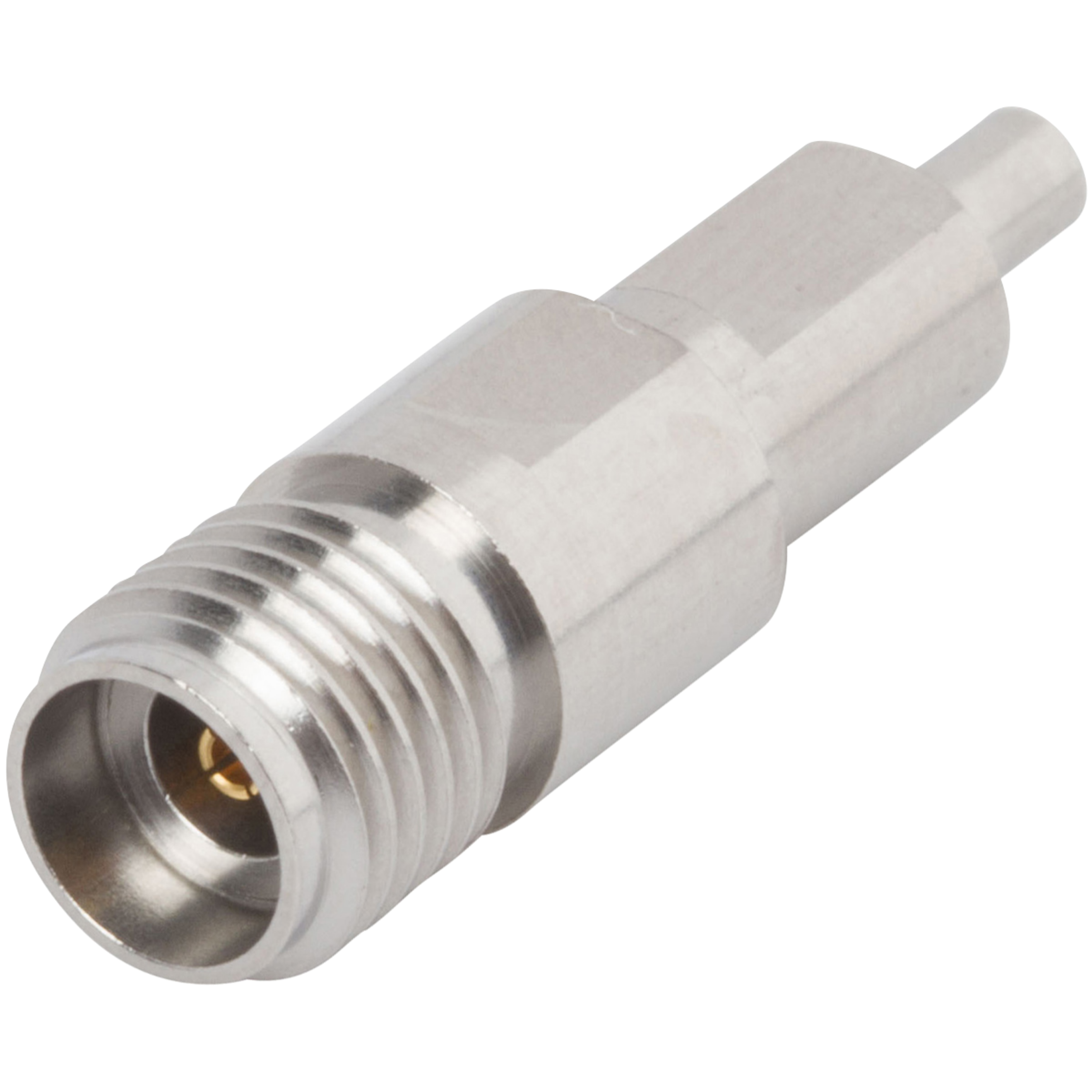

SF1138-6015
