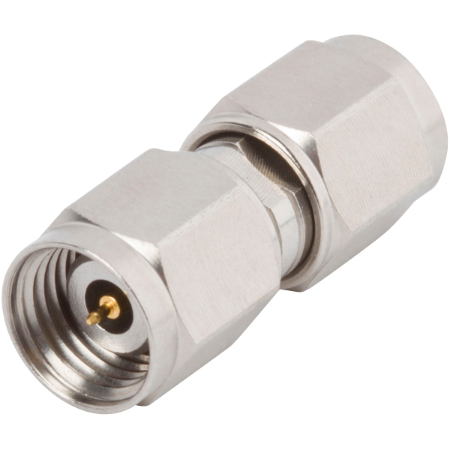

Name: 2.4mm Male to Male Adapter SF1116-6039
SKU: SF1116-6039
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	2.4 mm
Orientation (Body)	Straight
Gender	Plug (Male)
Coupling	Threaded
Finish	Passivated
RF Series 2	2.4 mm
Gender 2	Plug (Male)
Orientation 2 (Body)	Straight
Electrical
Frequency	50 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	500 VRMS
Mechanical
Mating Cycles	500
Mating Torque	5 - 7 in - lbs
Intermateability	1.85mm
Environmental
Temperature Rating	-65°C to +165°C
Shock	MIL-STD-202, Method 213, Condition I
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock	MIL-STD-202, Method 107, Condition B

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:04:57 AM

2.4mm Male to Male Adapter
P/N: SF1116-6039

2.4mm Male to 2.92mm Male Adapter
