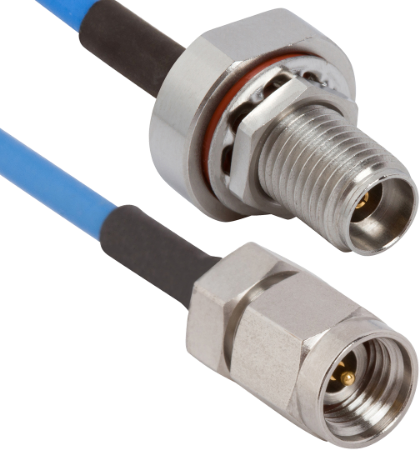

Products specifications
| Attribute name | Attribute value |
|---|---|
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| RF Series | 2.92 mm |
| Coupling | Threaded |
| Mounting Type | Panel |
| Body Style | Jamnut/Bulkhead |
| Gender 2 | Plug (Male) |
| Cable Type | 0.085 Flexible Coax |
| RF Series 2 | 2.92 mm |
| Orientation 2 (Body) | Straight |
| Cable Length | 6" |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 40 GHz |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | SMA |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| RF Series | 2.92 mm |
| Coupling | Threaded |
| Mounting Type | Panel |
| Body Style | Jamnut/Bulkhead |
| Gender 2 | Plug (Male) |
| Cable Type | 0.085 Flexible Coax |
| RF Series 2 | 2.92 mm |
| Orientation 2 (Body) | Straight |
| Cable Length | 6" |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 40 GHz |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | SMA |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed

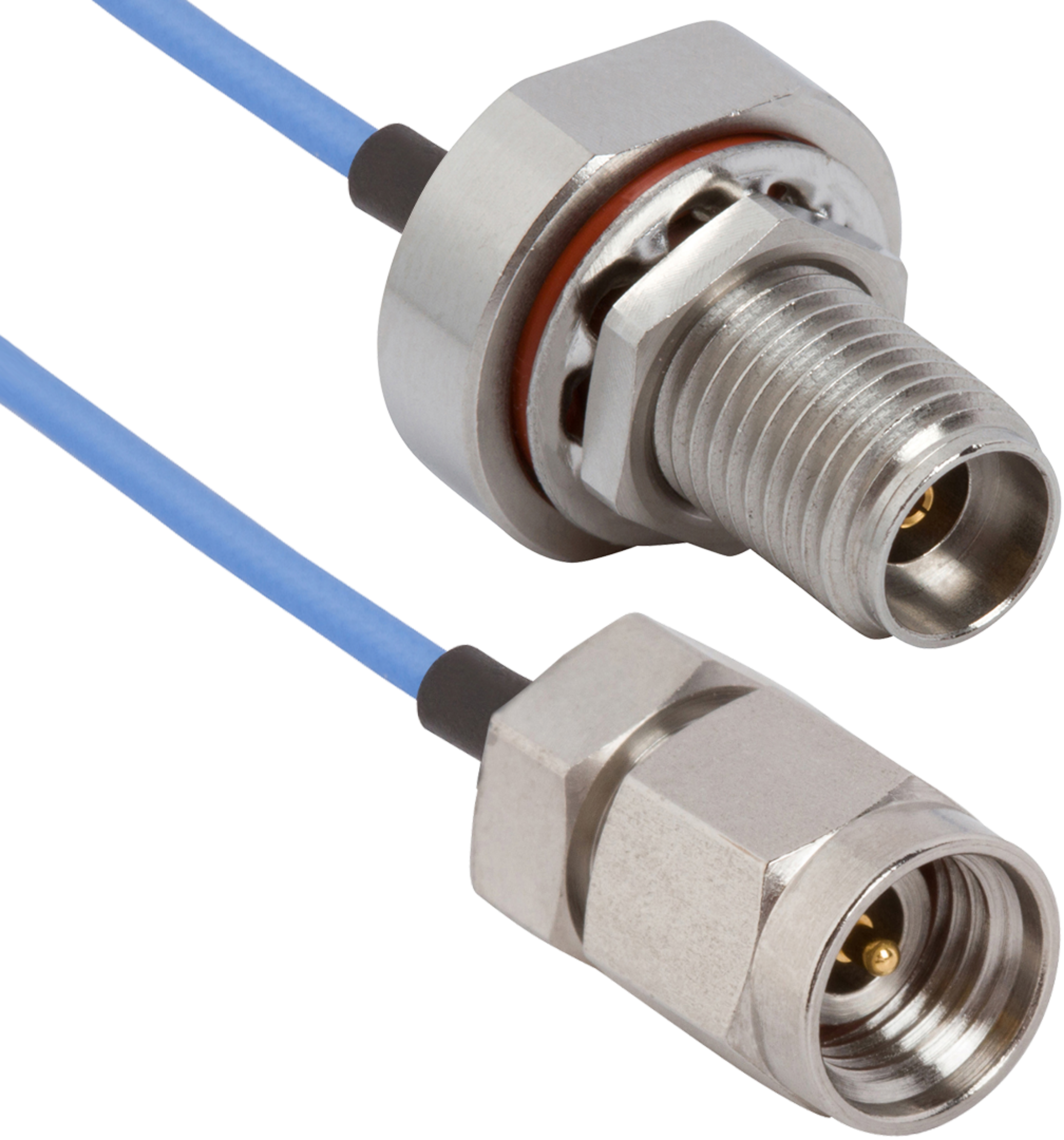

Part # 7015-1064
2.92mm Female Bulkhead to 2.92mm Male 6" Cable Assembly for .047 Cable
Available Inventory: 86
7015-1064
2.92mm Cable Assemblies 7015-1064

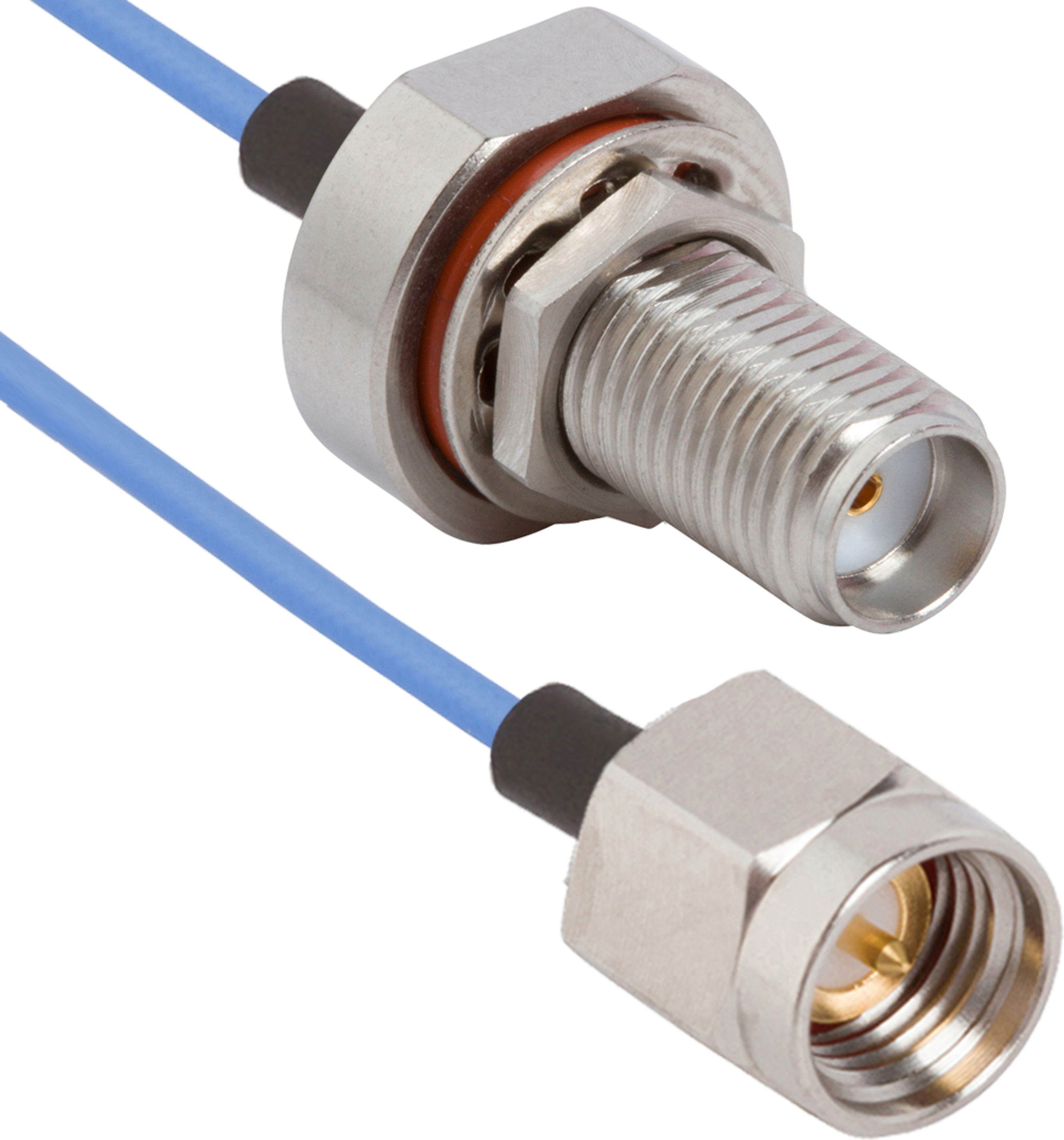

Part # 7029-3540
