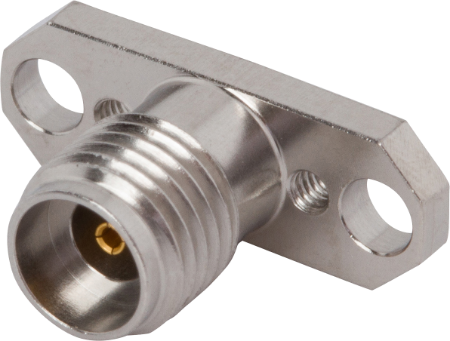

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole (Stripline)
P/N: SF1521-60013

Loading...
Products specifications
Attribute name Attribute value
Family Solderless
Gender Jack (Female)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Products specifications
Attribute name Attribute value
Family Solderless
Gender Jack (Female)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
