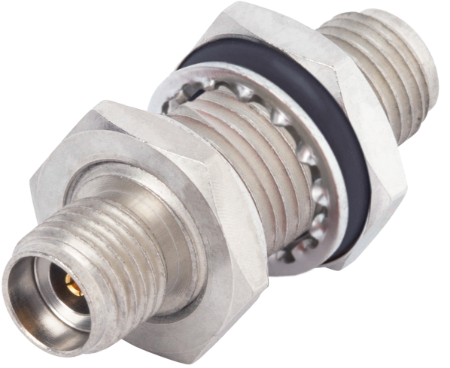

2.92mm Female to Female Bulkhead (EMI Gasket) Adapter
P/N: 1115-6131

Name: 2.92mm Female to Female Bulkhead (EMI Gasket) Adapter
SKU: 1115-6131
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
RF Series	2.92 mm
Gender	Jack (Female)
Orientation (Body)	Straight
Body Style	Jamnut/Bulkhead
Mounting Type	Panel
Coupling	Threaded
Gender 2	Jack (Female)
RF Series 2	2.92 mm
Finish	Passivated
Electrical
Impedance	50 ohms
Frequency	40 GHz
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	750 VRMS
Mechanical
Mating Torque	7 - 10 in - lbs
Inter-mate ability	SMA
Mating Cycles	500
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
