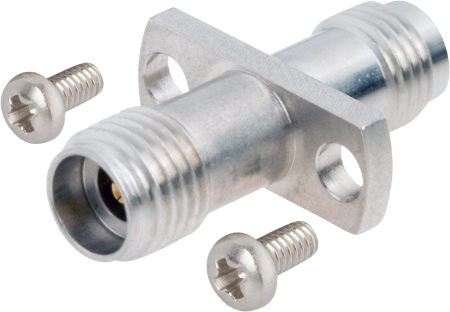

Name: 2.92mm Female to Female Flange Mount Adapter, 2 Hole, with Screws
SKU: 1115-6128
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	2.92 mm
Gender	Jack (Female)
Orientation (Body)	Straight
Coupling	Threaded
Mounting Type	Panel
Body Style	2 Hole
RF Series 2	2.92 mm
Finish	Gold
Gender 2	Jack (Female)
Orientation 2 (Body)	Straight
Electrical
Impedance	50 ohms
Frequency	40 GHz
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	750 VRMS
Mechanical
Mating Cycles	500
Intermateability	SMA
Mating Torque	7 - 10 in - lbs
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:03:51 AM

2.92mm Female to Female Flange Mount Adapter, 2 Hole, with Screws
P/N: 1115-6128

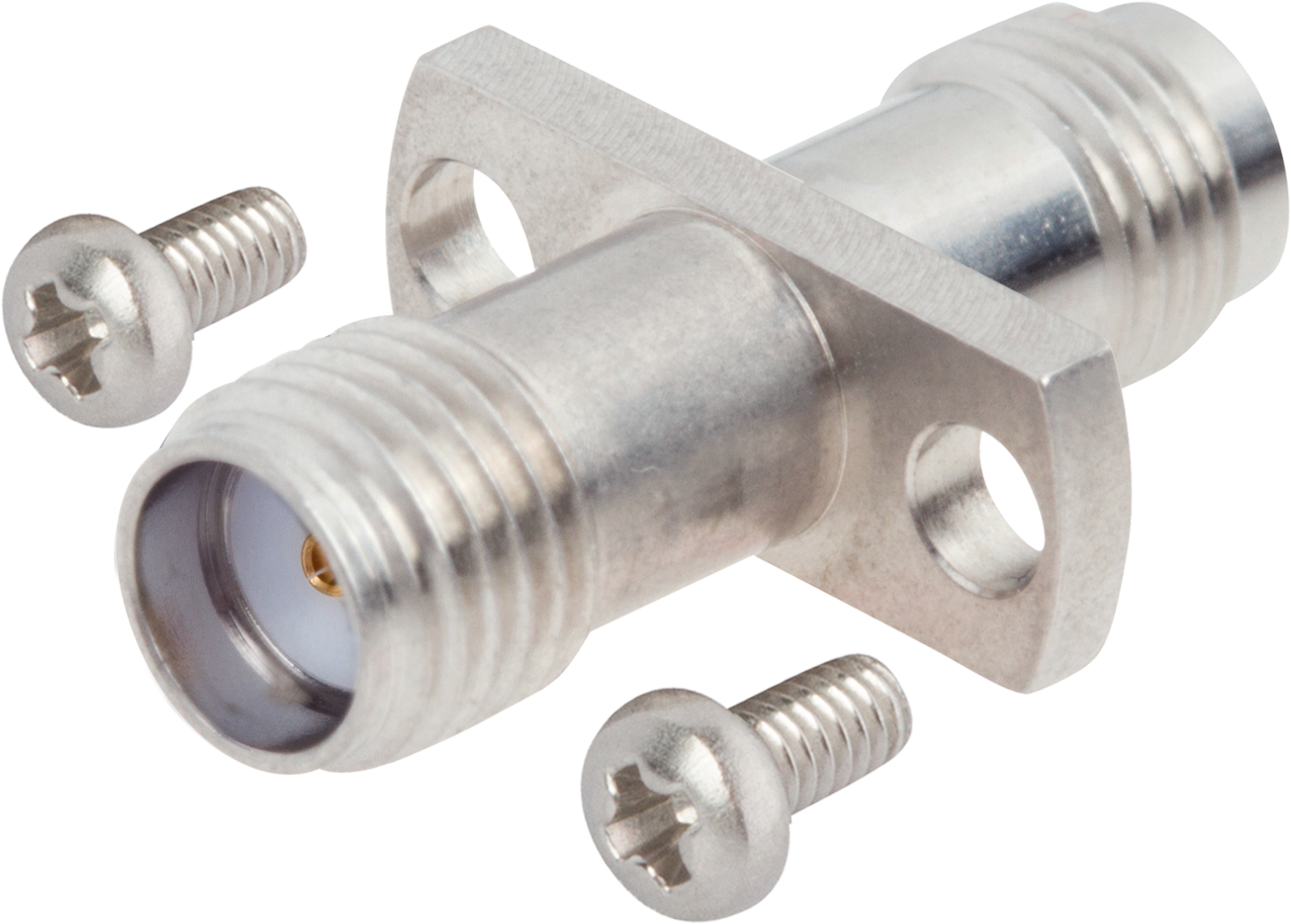

SMA Female to Female Flange Mount Adapter, 2 Hole, with Screws
