Name: 2.92mm Male Connector for .047 Cable SF1511-60069
SKU: SF1511-60069
Price: 70.00 USD
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	2.92 mm
Orientation (Body)	Straight
Gender	Plug (Male)
Coupling	Threaded
Termination Style	Solder
Number of Ports	Single
Finish	Passivated
Cable Type	0.047 Flexible Coax
Cable Builder Attributes
Mating Connector	SF1521-60124, SF1521-60115
Electrical
Impedance	50 ohms
Frequency	40 GHz
Dielectric withstanding Voltage	750 VRMS
Shielding Effectiveness	≥ -100 dB
Mechanical
Mating Cycles	500
Intermateability	SMA
Mating Torque	7 - 10 in - lbs
Environmental
Temperature Rating	-65°C to +165°C
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:19:40 AM

2.92mm Male Connector for .047 Cable
P/N: SF1511-60069

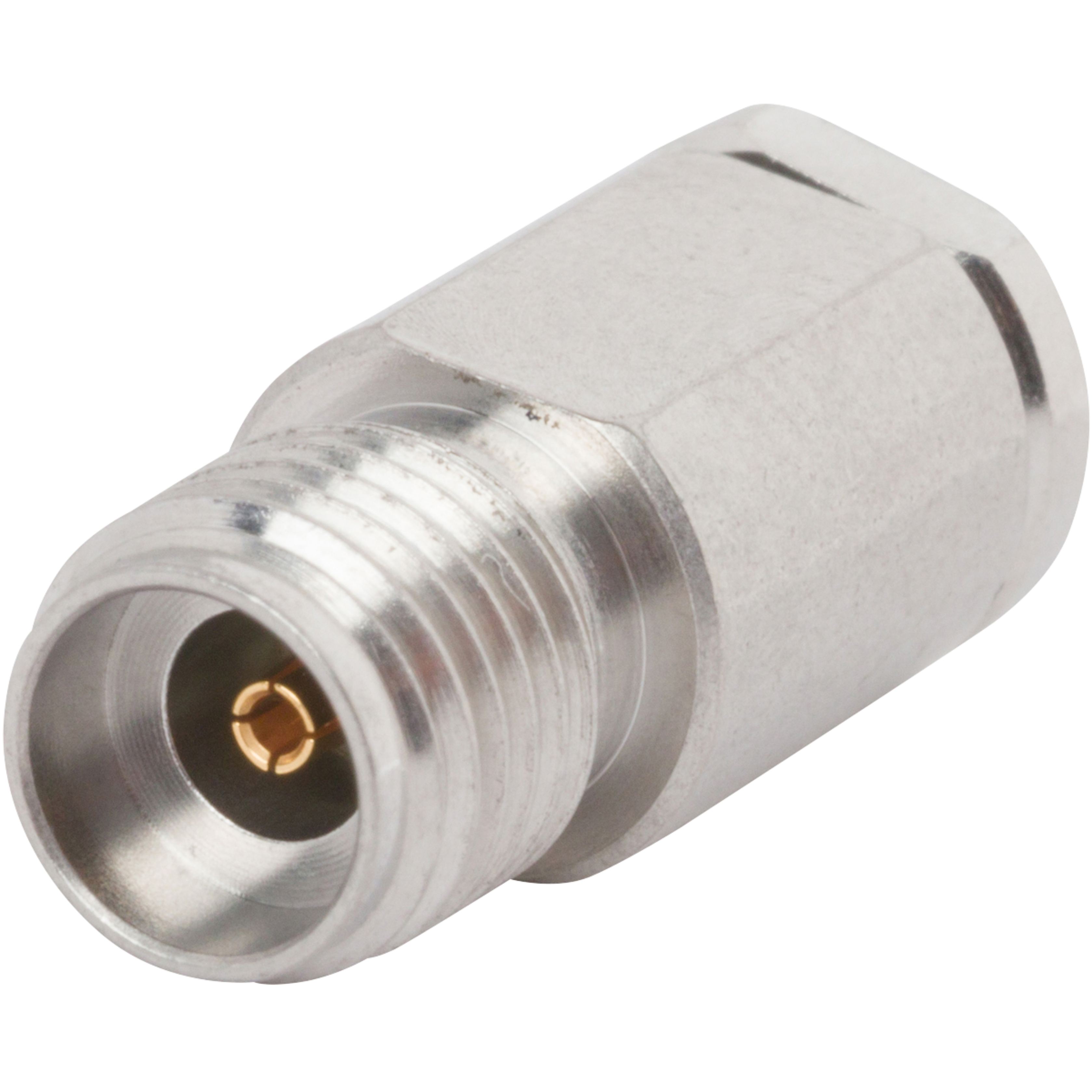

2.92mm Female Connector for .047 Cable
