Name: BMA Pin D38999 Contact (Size 8) for .085 Cable SF9421-6000
SKU: SF9421-6000
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	BMA
Orientation (Body)	Straight
Gender	Pin
Coupling	Push-on
Style	Size 8
Mounting Type	D38999 Series I, II, III and IV
Cable Type	0.085 Flexible Coax
Finish	Passivated
Electrical
Frequency	18 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Mechanical
Insertion Force	3.0 lbs
Mating Cycles	5000
Withdrawal Force	1.5 lbs
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
CE / UKCA	Not Yet Reviewed Please contact our compliance team for more information.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:21:24 AM

BMA Pin D38999 Contact (Size 8) for .085 Cable
P/N: SF9421-6000

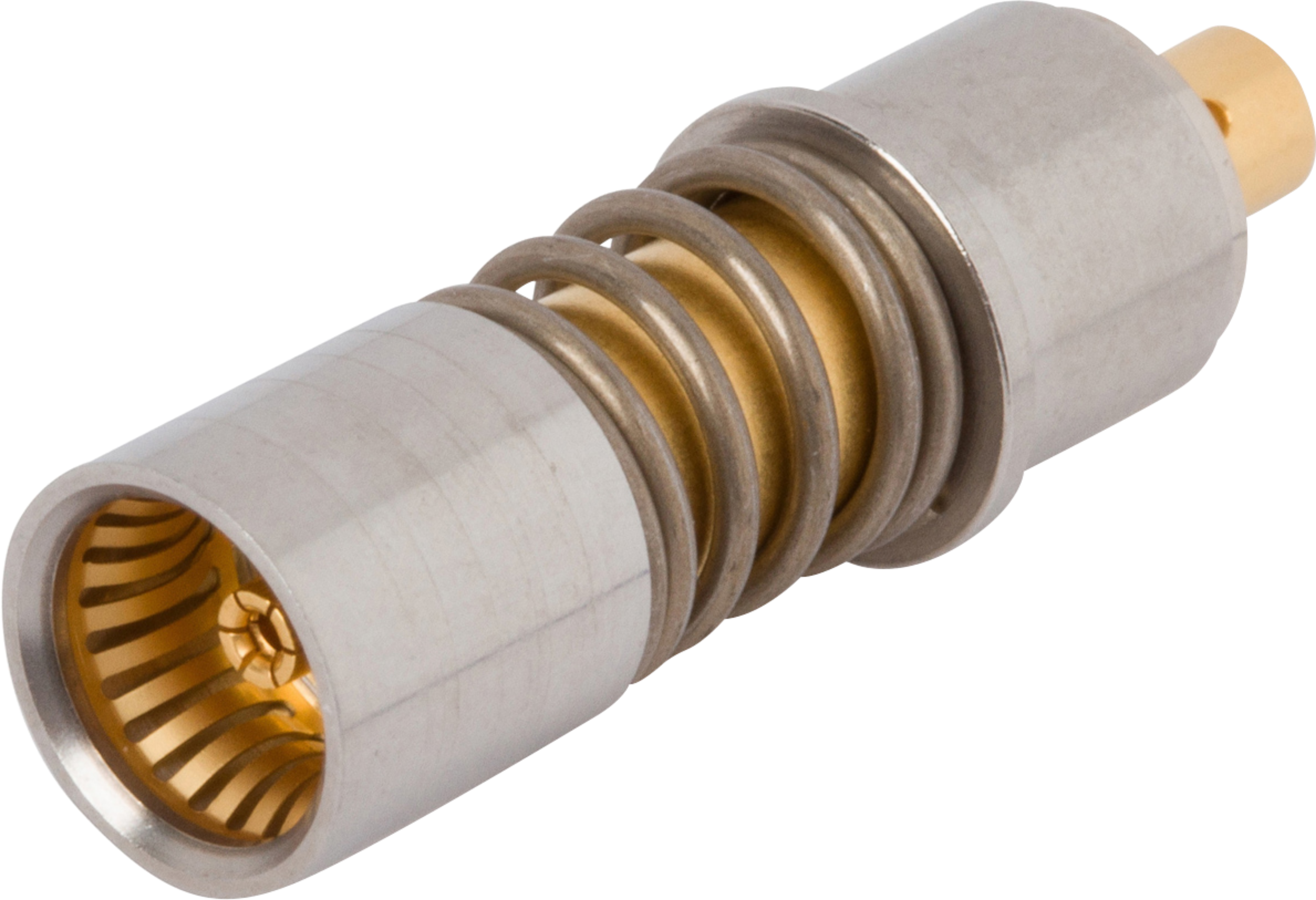

BMA Socket D38999 Contact (Size 8) for .085 Cable
