Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | BMA |
| Orientation (Body) | Straight |
| Gender | Socket |
| Mounting Type | D38999 |
| Coupling | Push-on |
| Style | Size 8 |
| Number of Ports | Single |
| Termination Style | Solder |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.085 Flexible Coax |
| Cable Length | 24" |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 18 GHz |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Insertion Force | 3.0 lbs |
| Mating Cycles | 5000 |
| Withdrawal Force | 1.5 lbs |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | BMA |
| Orientation (Body) | Straight |
| Gender | Socket |
| Mounting Type | D38999 |
| Coupling | Push-on |
| Style | Size 8 |
| Number of Ports | Single |
| Termination Style | Solder |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.085 Flexible Coax |
| Cable Length | 24" |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 18 GHz |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Insertion Force | 3.0 lbs |
| Mating Cycles | 5000 |
| Withdrawal Force | 1.5 lbs |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
Part # 7093-0178

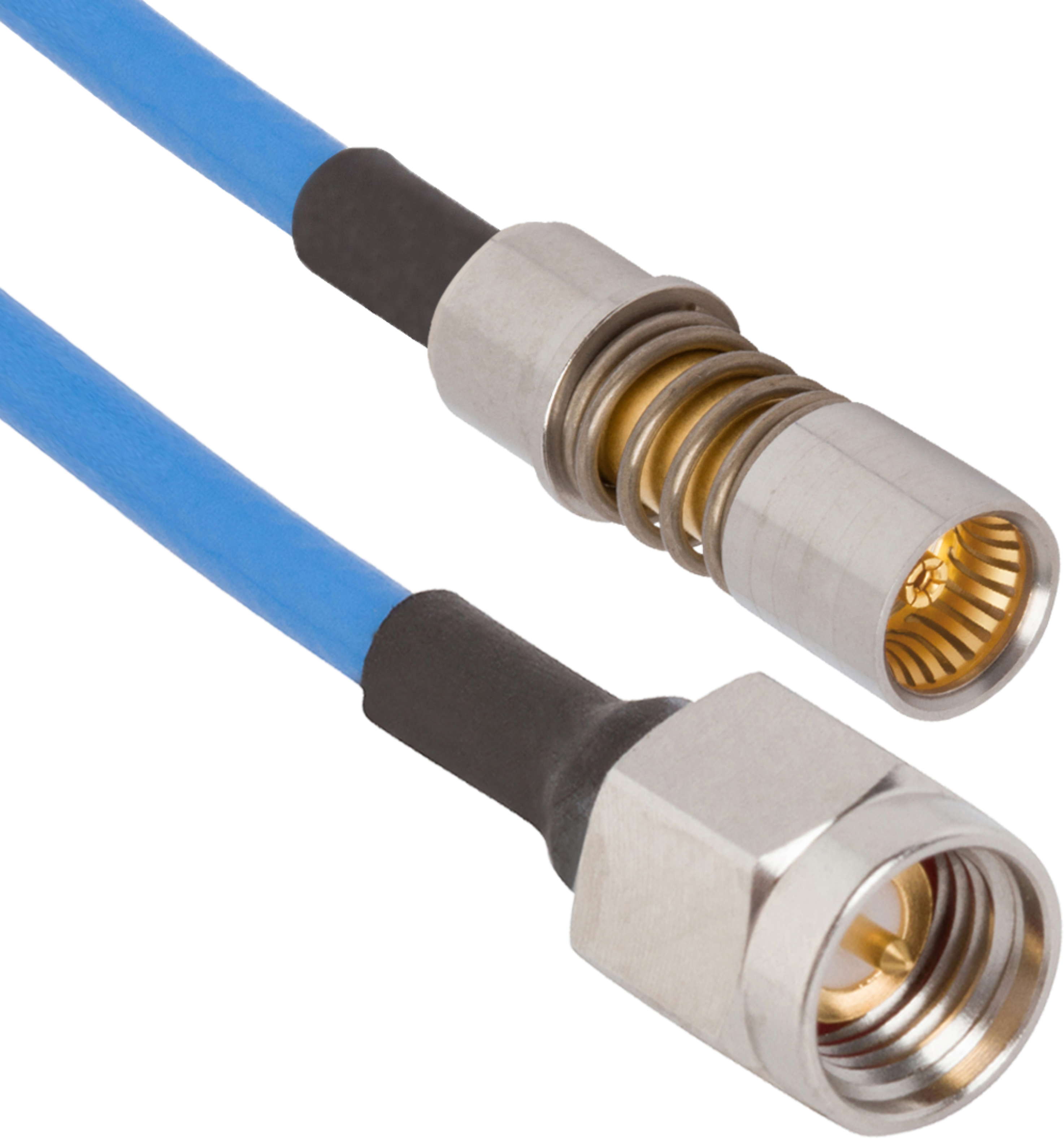

BMA (Size 8) D38999 Socket Contact to SMA Male 12" Cable Assembly for .085 Cable
Available Inventory: 38
7093-0178
BMA Cable Assemblies 7093-0178
Part # 7093-0180

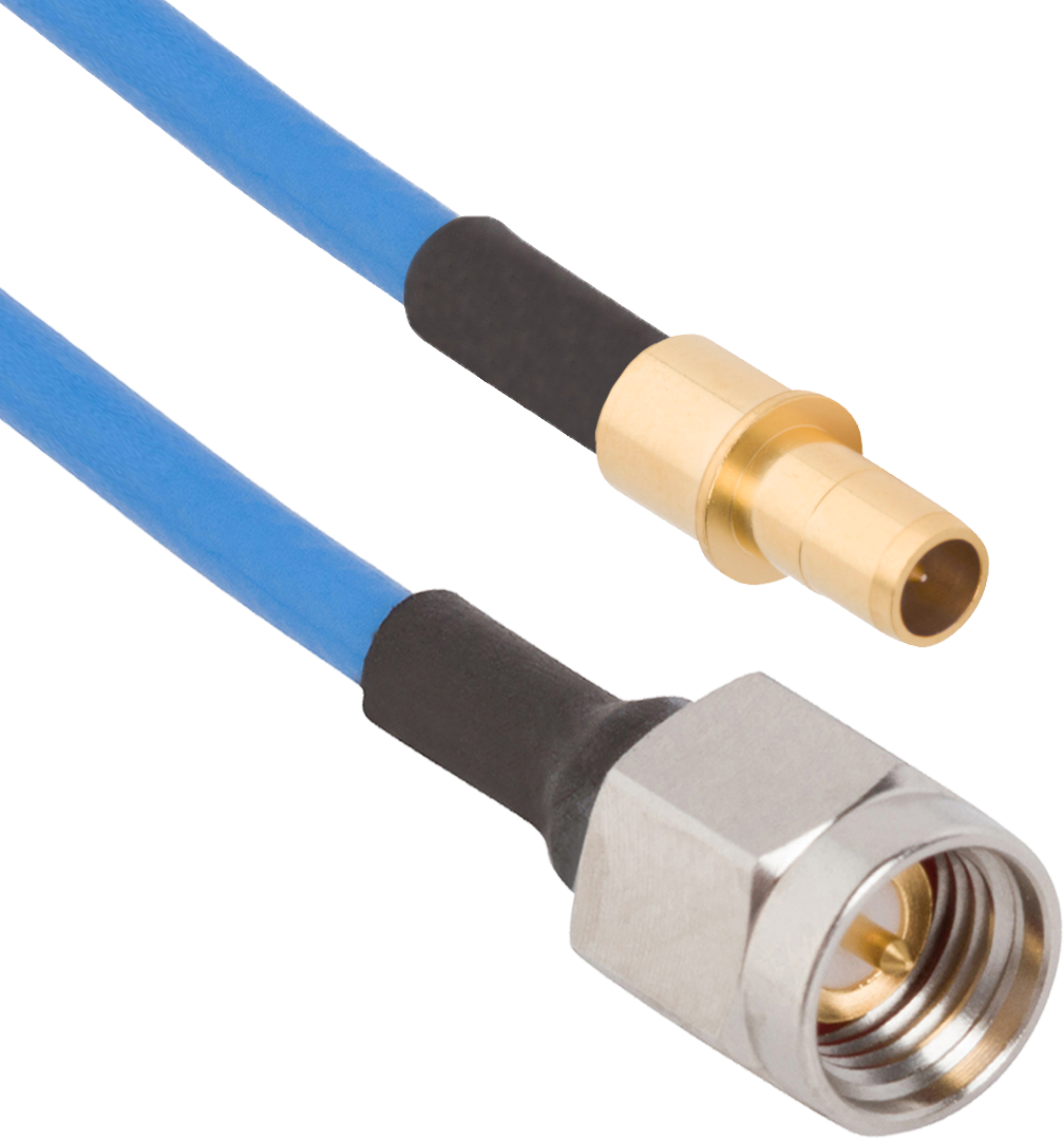

BMA (Size 8) D38999 Pin Contact to SMA Male 12" Cable Assembly for .085 Cable
