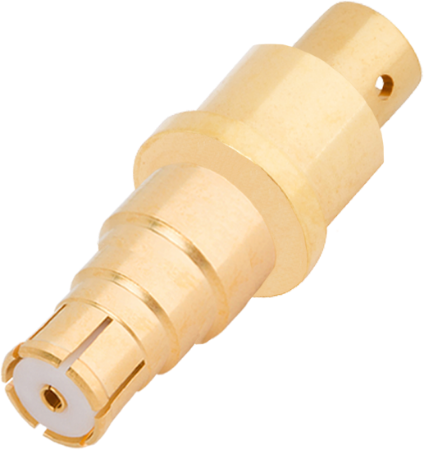

Name: BMB Pin D38999 Contact (Size 8) for Ø.141” Cable
SKU: 4941-60002
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
Gender	Pin
Cable Type	0.141 Flexible Coax
Mounting Type	D38999 Series I, II, III and IV
Style	Size 8
Family	SOSA Aligned
Orientation (Body)	Straight
Coupling	Push-on
Finish	Gold
RF Series	BMB
Electrical
Impedance	50 ohms
Frequency	22 GHz
Shielding Effectiveness	-100dB to 22GHz
Dielectric withstanding Voltage	1500 VRMS
Mechanical
Mating Cycles	500
Insertion Force	2.0 lbs
Withdrawal Force	6 oz
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
CE / UKCA	Not Yet Reviewed Please contact our compliance team for more information.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:21:24 AM
