BMMA Male PCB Thru-Hole Connector
P/N: 1485-6000

Name: BMMA Male PCB Thru-Hole Connector
SKU: 1485-6000
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
Gender	Plug (Male)
RF Series	BMMA
Coupling	Push-on
Orientation (Body)	Straight
Mounting Type	PCB Vertical Launch
Termination Style	Solder
Electrical
Frequency	26.5 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	675 VRMS
Mechanical
Mating Cycles	5000
Withdrawal Force	1.5 lbs
Insertion Force	3.0 lbs
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

Products specifications

Attribute name	Attribute value
Gender	Plug (Male)
RF Series	BMMA
Coupling	Push-on
Orientation (Body)	Straight
Mounting Type	PCB Vertical Launch
Termination Style	Solder
Electrical
Frequency	26.5 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	675 VRMS
Mechanical
Mating Cycles	5000
Withdrawal Force	1.5 lbs
Insertion Force	3.0 lbs
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

Customers Also Viewed

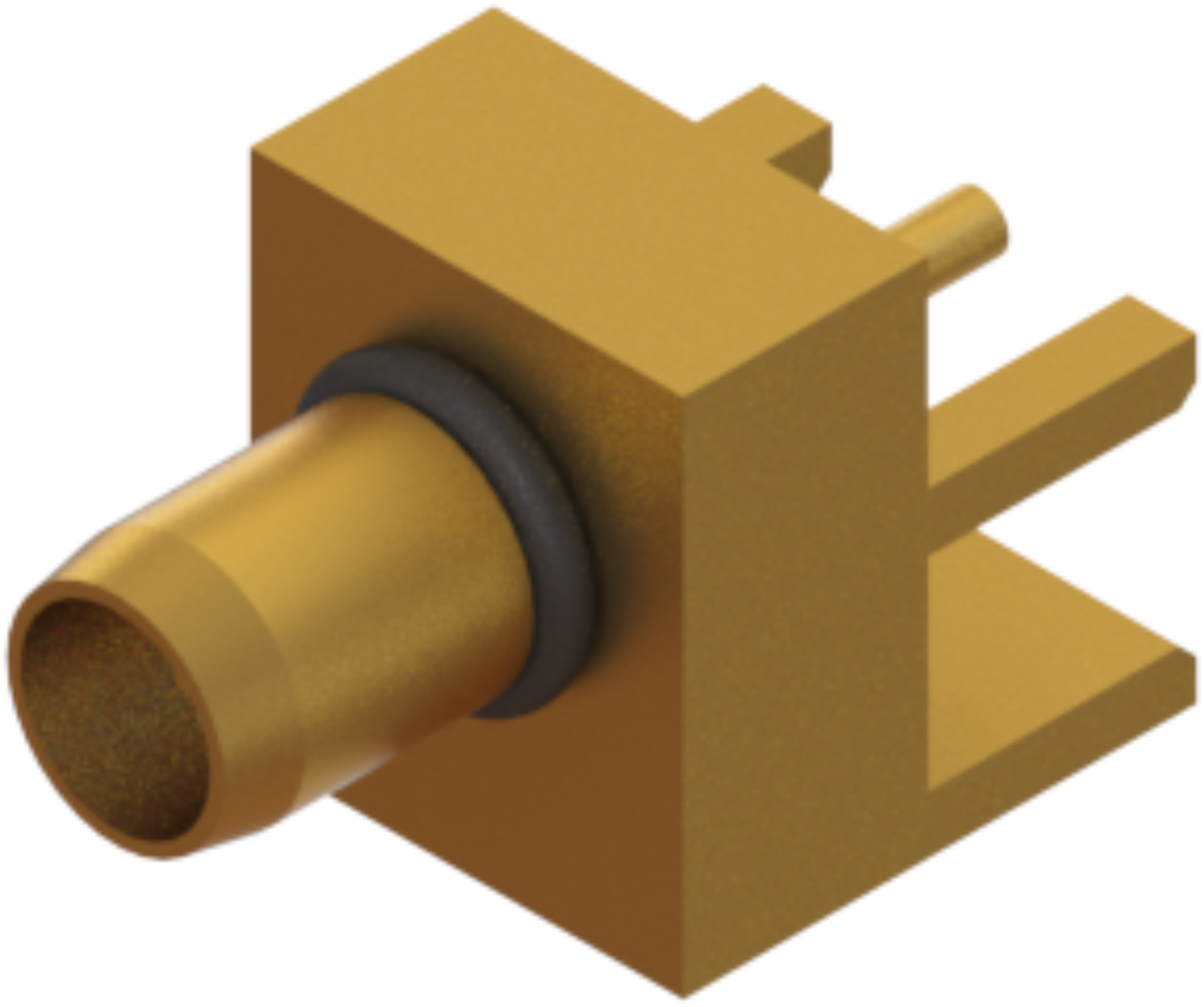

BMMA Male PCB Edge Launch Connector, .117" PCB Thickness"

1411-60007

BMMA Connectors 1411-60007

Datasheet

1412-60001

BMMA Connectors 1412-60001

Datasheet

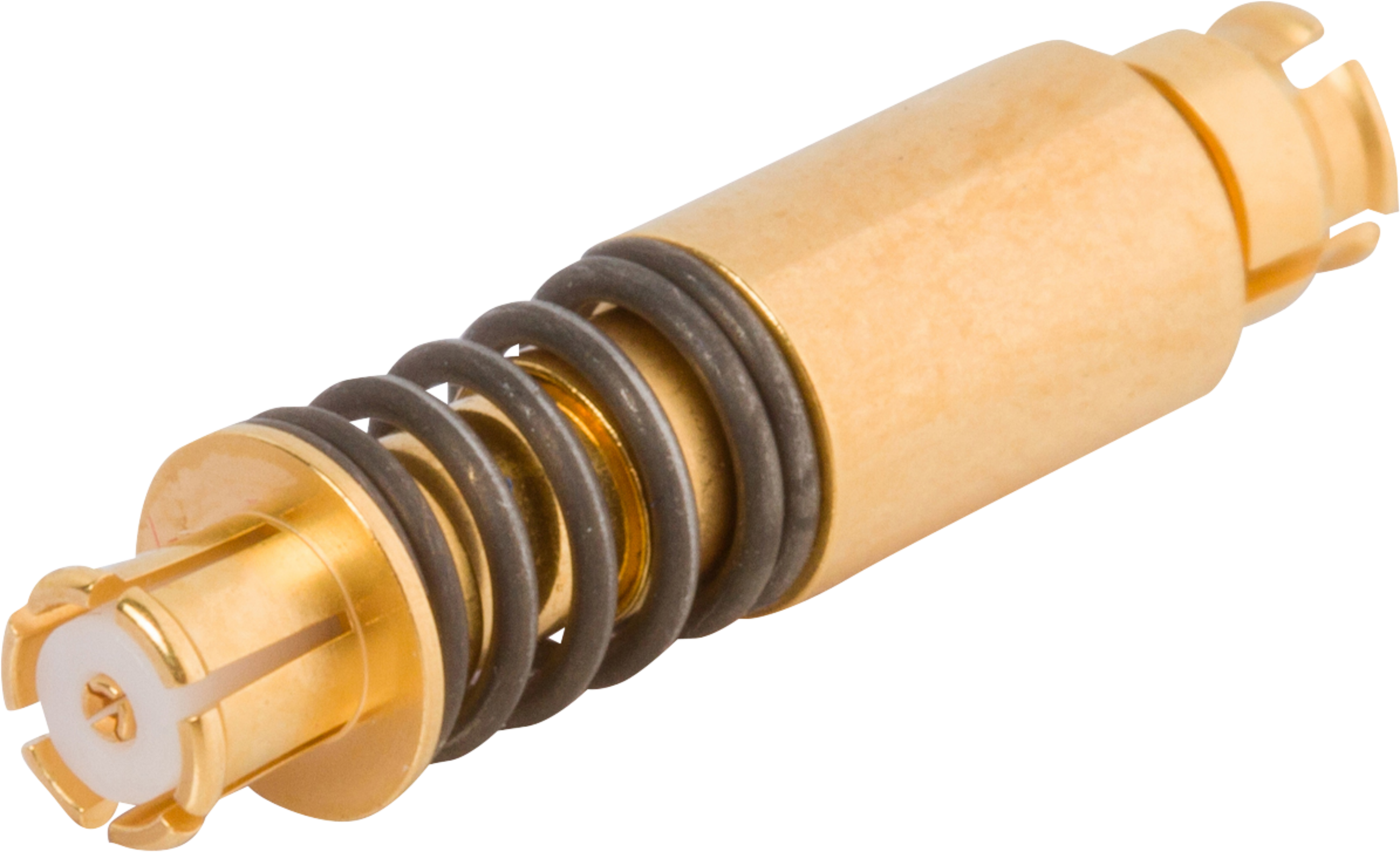

1112-4145
