Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | BMZ |
| Gender | Socket |
| Style | Size 8 |
| Mounting Type | D38999 |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Gender 2 | Plug (Male) |
| Orientation 2 (Body) | Straight |
| RF Series 2 | MCX |
| Cable Type | RG-179 |
| Cable Length | 12" |
| Electrical | |
| Frequency | 3 GHz |
| Impedance | 75 ohms |
| Shielding Effectiveness | ≥ -80 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Insertion Force | 0.75 lbs |
| Mating Cycles | 500 |
| Withdrawal Force | 0.13 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | BMZ |
| Gender | Socket |
| Style | Size 8 |
| Mounting Type | D38999 |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Gender 2 | Plug (Male) |
| Orientation 2 (Body) | Straight |
| RF Series 2 | MCX |
| Cable Type | RG-179 |
| Cable Length | 12" |
| Electrical | |
| Frequency | 3 GHz |
| Impedance | 75 ohms |
| Shielding Effectiveness | ≥ -80 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Insertion Force | 0.75 lbs |
| Mating Cycles | 500 |
| Withdrawal Force | 0.13 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
Part # 7093-0280

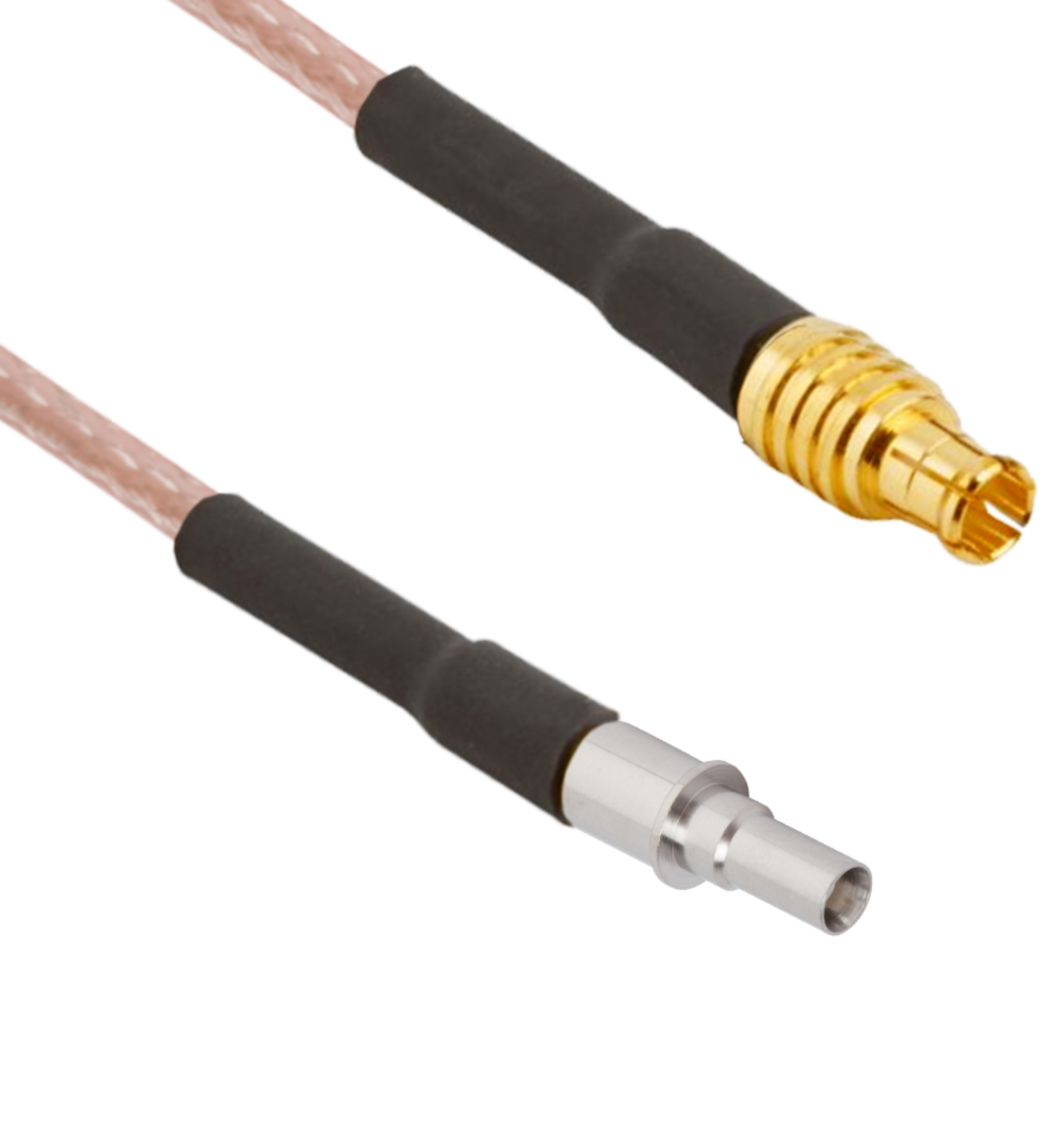

BMZ (Size 8) D38999 Pin Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
Available Inventory: 63
7093-0280
BMZ Cable Assemblies 7093-0280
Customers Also Viewed
Part # 7093-0280
BMZ (Size 8) D38999 Pin Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
Available Inventory: 63
7093-0280
BMZ Cable Assemblies 7093-0280
Part # 7093-0278

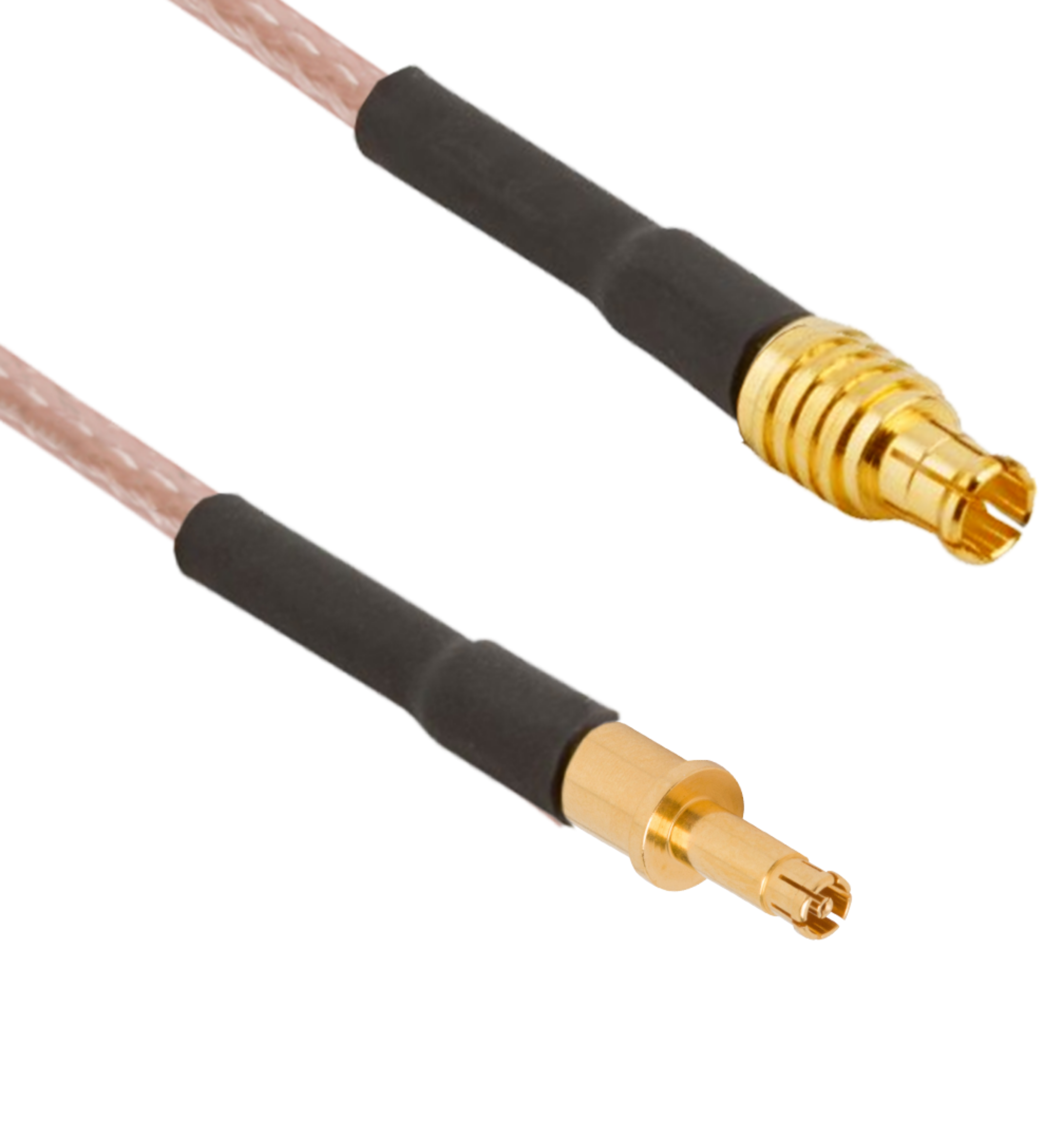

SMPM (Size 12) D38999 Pin Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
