Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | BZ |
| Gender | Plug (Male) |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Finish | Passivated |
| Cable Type | 0.140 Flexible Coax |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 6 GHz |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1500 VRMS |
| Mechanical | |
| Insertion Force | 2.0 lbs |
| Mating Cycles | 500 |
| Withdrawal Force | 1.25 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | BZ |
| Gender | Plug (Male) |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Finish | Passivated |
| Cable Type | 0.140 Flexible Coax |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 6 GHz |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1500 VRMS |
| Mechanical | |
| Insertion Force | 2.0 lbs |
| Mating Cycles | 500 |
| Withdrawal Force | 1.25 lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed

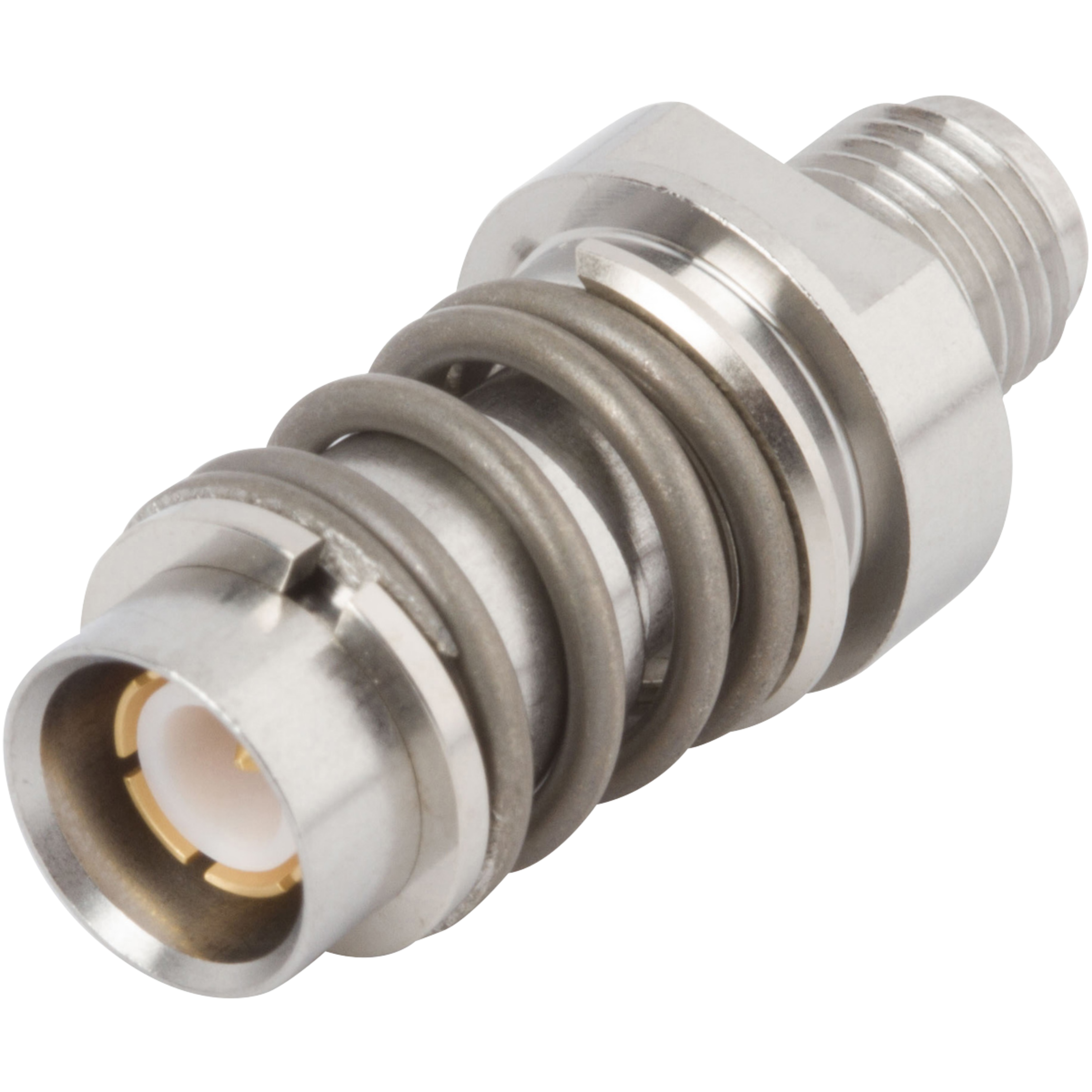

SF1122-6101
BZ Adapters SF1122-6101

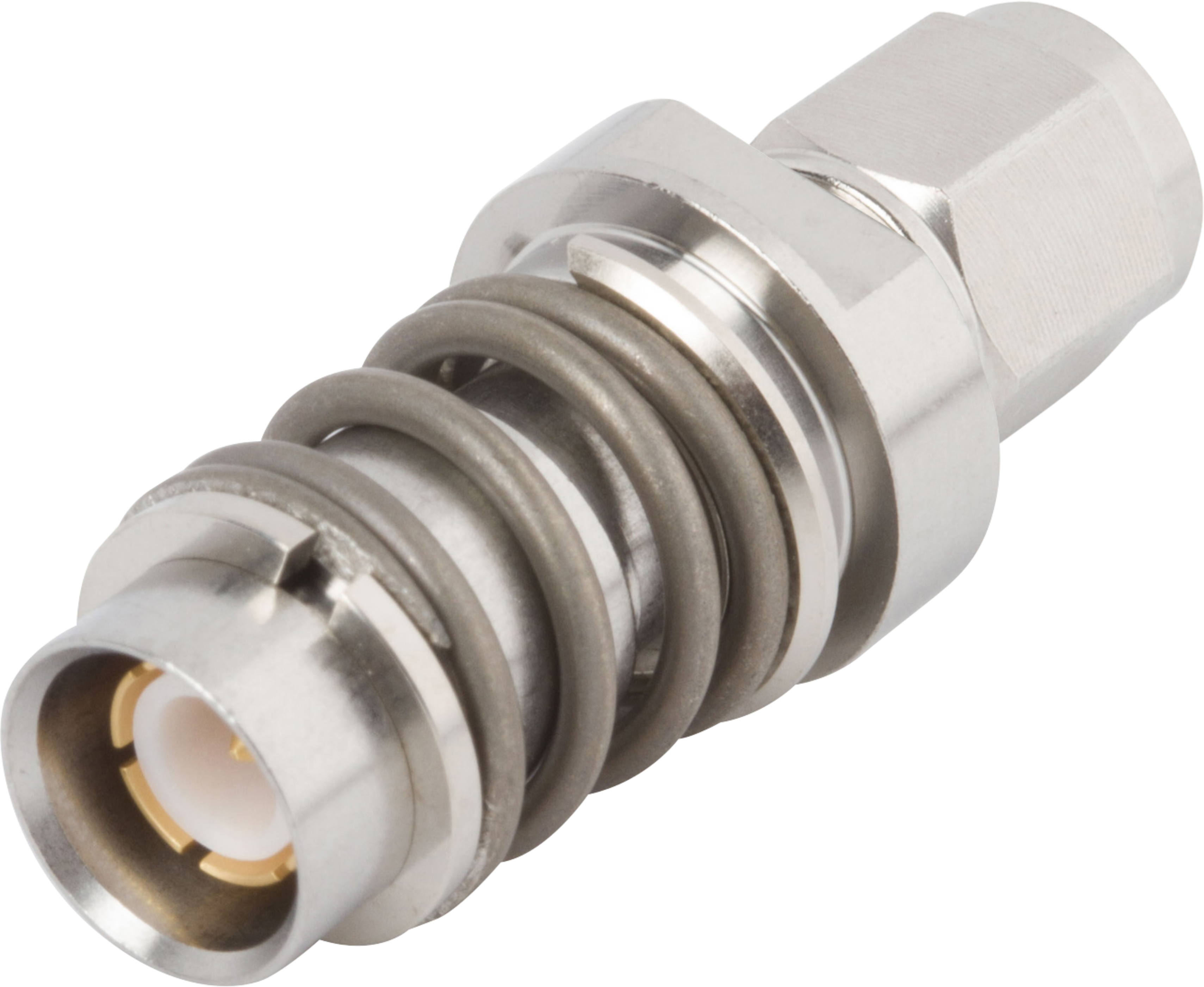

SF1122-6102
BZ Adapters SF1122-6102

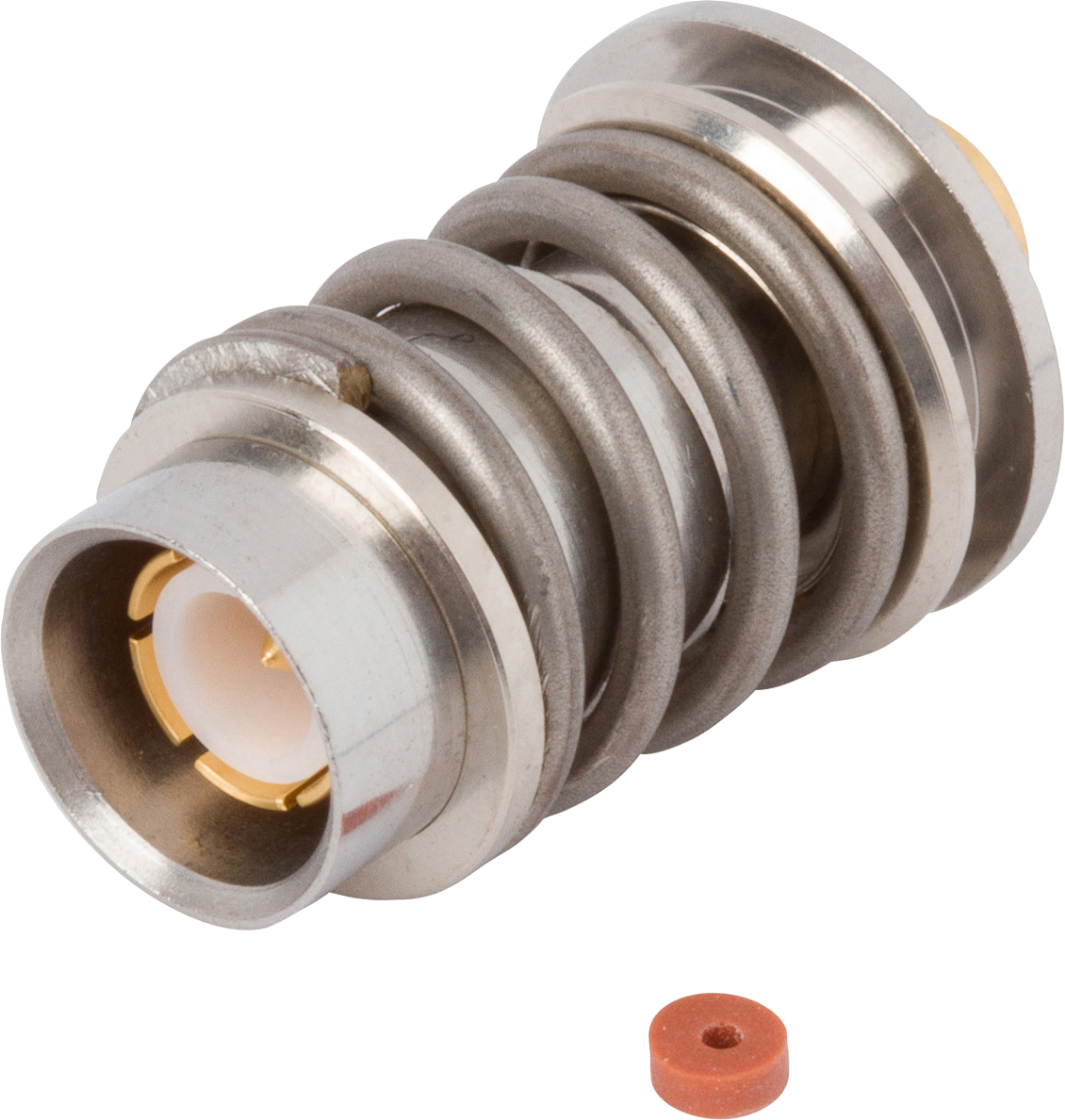

SF8806-6006
