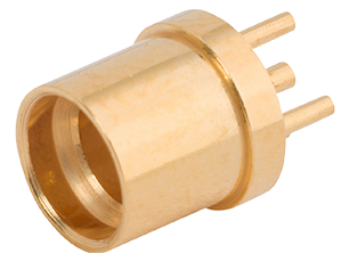

High Performance RF PCB Thru-Hole Connectors

As part of our commitment to continuous quality improvement, SV has re-designed a line of thru-hole PCB connectors with current design standards to improve performance at higher frequencies. These connectors feature a contact that goes through the PCB and can launch directly to transmission lines on the opposite side. Current configurations include straight and right-angle SMP male connectors.

Features / Benefits & Applications
Technical Specs

Features / Benefits:

SMP series available
Variety of detents
Pre-tinning options available
Thru-hole contact optimized for excellent performance at higher frequencies
Customized PCB footprint design through simulation optimization

Applications:

Mil/Aero
Space and High-reliability Communications
RF test and measurement boards
Rapid prototyping
High-speed digital component test
5G wireless test applications

Grid List

Filters

per page

Part # 1211-40169

SMP Male PCB Thru-Hole Connector, FD

Available Inventory: 155

1211-40169

SMP Connectors 1211-40169

Datasheet

Part # 1211-40167

SMP Male PCB Thru-Hole Connector, SB

Available Inventory: 10

1211-40167

SMP Connectors 1211-40167

Datasheet

Part # 1211-40170

SMP Male PCB Thru-Hole Connector (Pre-Tinned), SB

Available Inventory: 90

1211-40170

SMP Connectors 1211-40170

Datasheet

Part # 1211-40172

SMP Male PCB Thru-Hole Connector (Pre-Tinned), FD

Available Inventory: 40

1211-40172

SMP Connectors 1211-40172

Datasheet

Part # 1212-60060

SMP Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 199

1212-60060

SMP Connectors 1212-60060

Datasheet

Part # 1212-60062

SMP Male PCB Thru-Hole Connector, R/A, FD

Available Inventory: 58

1212-60062

SMP Connectors 1212-60062

Datasheet

Loading more products ...

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mating Cycles - SB	1000
Mating Cycles - LD	500
Mating Cycles - FD	100
Insertion Force - SB	3.0 lbs
Insertion Force - LD	5.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - LD	7.0 lbs
Withdrawal Force - FD	9.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
