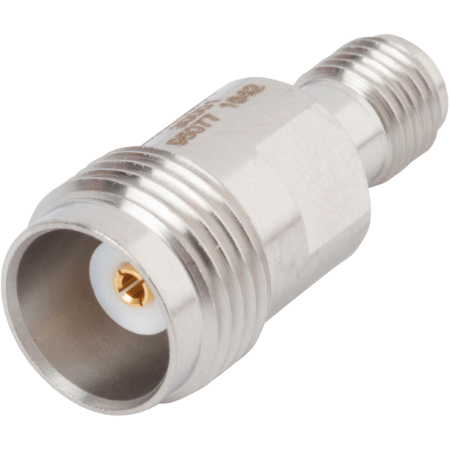

PTNC Female to SMA Female Adapter
P/N: M55339/41-30001

Loading...
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
MIL-SPEC M55339
Finish Passivated
RF Series 2 PTNC
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Intermateability 2.92mm
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
MIL-SPEC M55339
Finish Passivated
RF Series 2 PTNC
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Intermateability 2.92mm
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M55339/34-30001

TNC Female to Female Bulkhead Hermetic Adapter

Available Inventory: 218
M55339/34-30001
TNC Adapters M55339/34-30001
Datasheet
Part #   M55339/44-30001

SMA Female to BNC Male Adapter

Available Inventory: 291
M55339/44-30001
SMA Adapters M55339/44-30001
Datasheet
Part #   M55339/34-00001

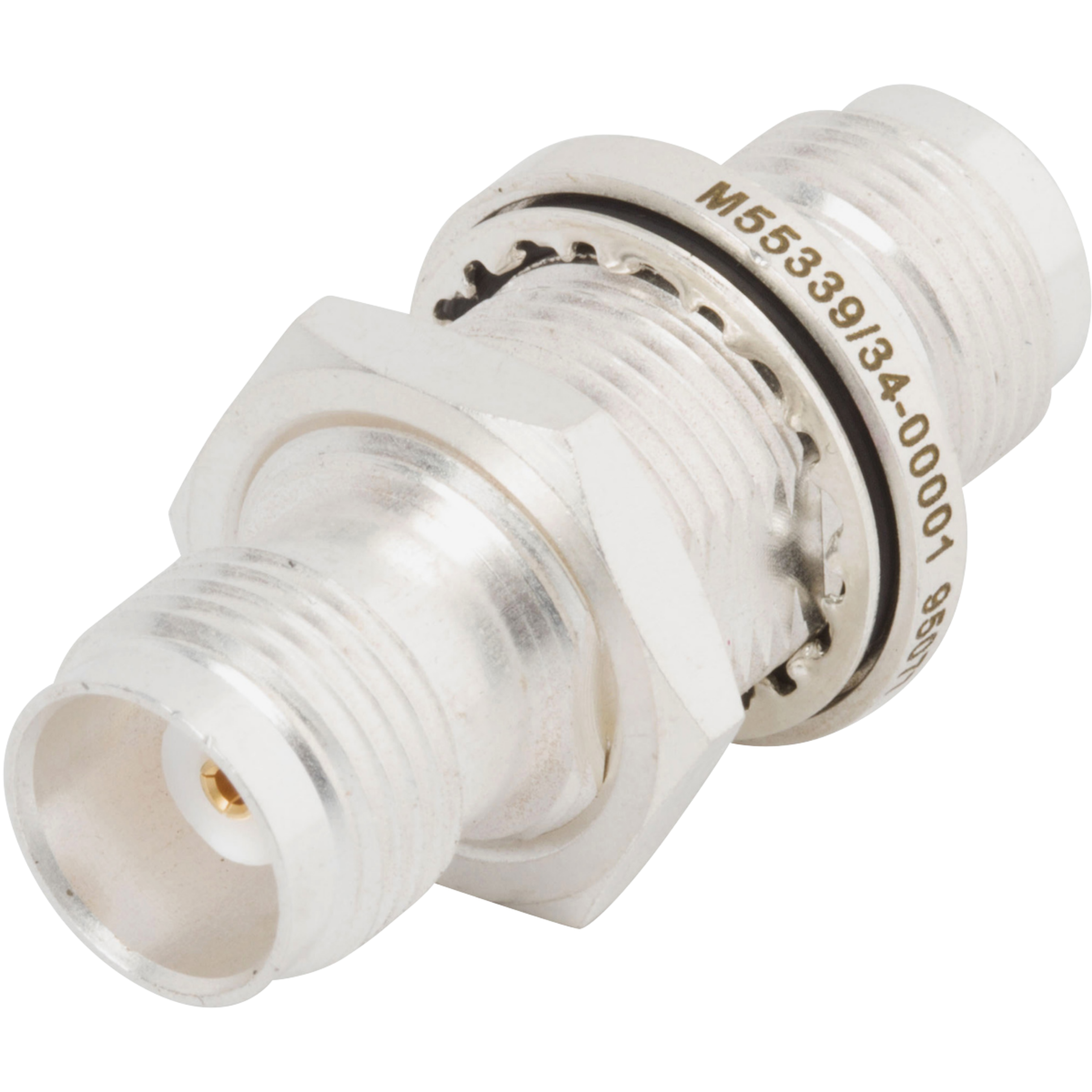

TNC Female to Female Bulkhead Hermetic Adapter
