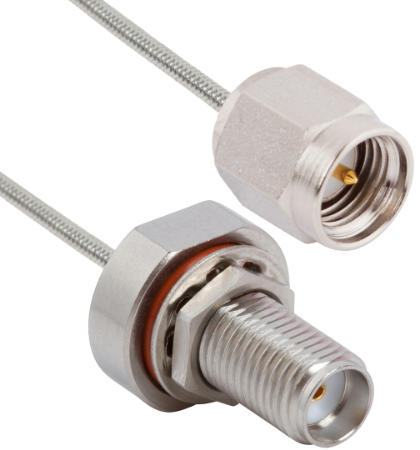

Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMA |
| Gender | Jack (Female) |
| Coupling | Threaded |
| Orientation (Body) | Straight |
| Mounting Type | Panel |
| Body Style | Jamnut/Bulkhead |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Cable Type | 0.047 Conformable Semi-Rigid |
| Cable Length | 6" |
| Electrical | |
| Frequency | 18 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 7 - 10 in - lbs |
| Inter-mate ability | 2.92mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMA |
| Gender | Jack (Female) |
| Coupling | Threaded |
| Orientation (Body) | Straight |
| Mounting Type | Panel |
| Body Style | Jamnut/Bulkhead |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Cable Type | 0.047 Conformable Semi-Rigid |
| Cable Length | 6" |
| Electrical | |
| Frequency | 18 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 7 - 10 in - lbs |
| Inter-mate ability | 2.92mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
Part # 7029-3580

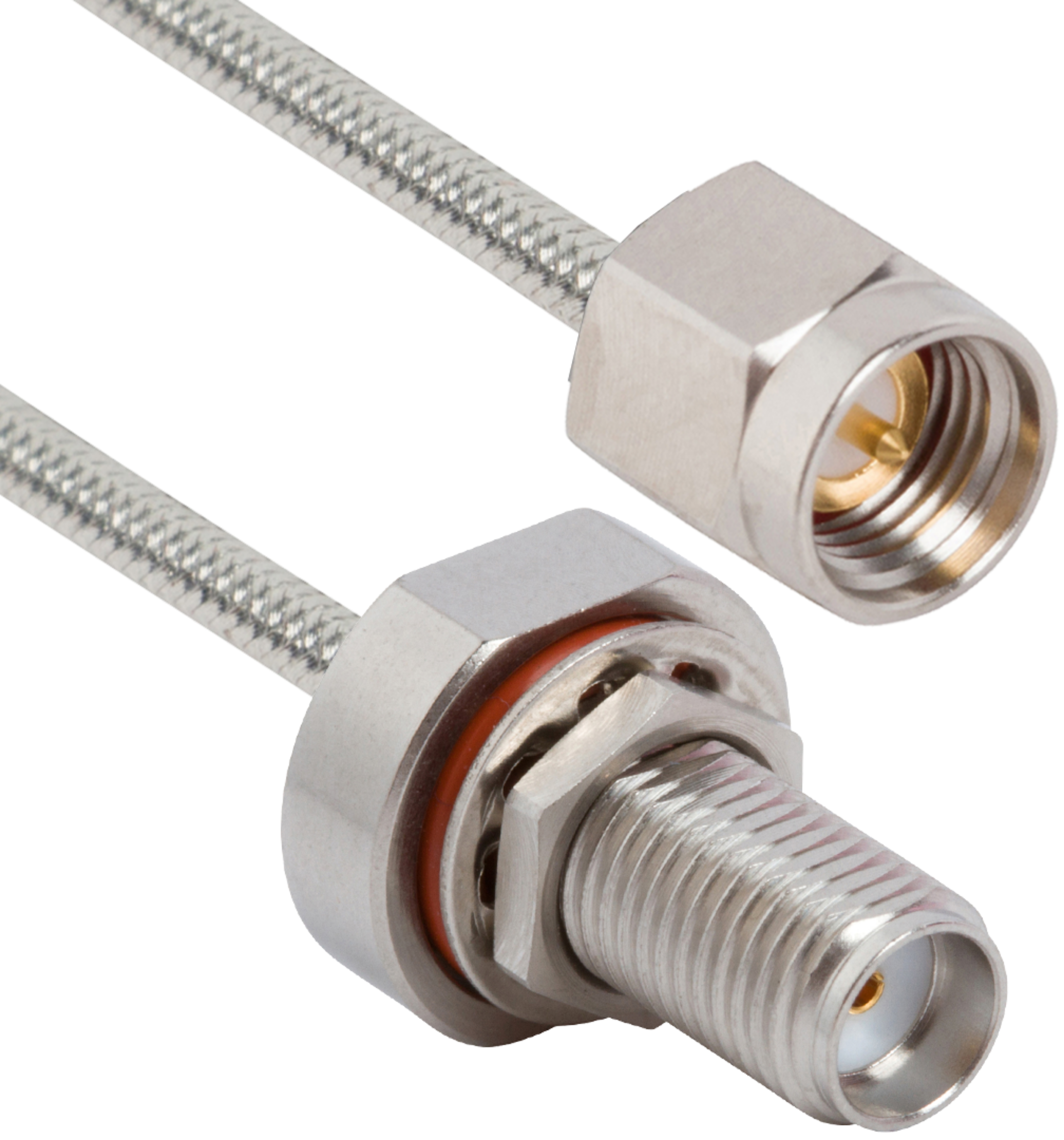

SMA Female Bulkhead to SMA Male 6" Cable Assembly for .085 Conformable Cable
Available Inventory: 110
7029-3580
SMA Cable Assemblies 7029-3580
Part # 7015-1077

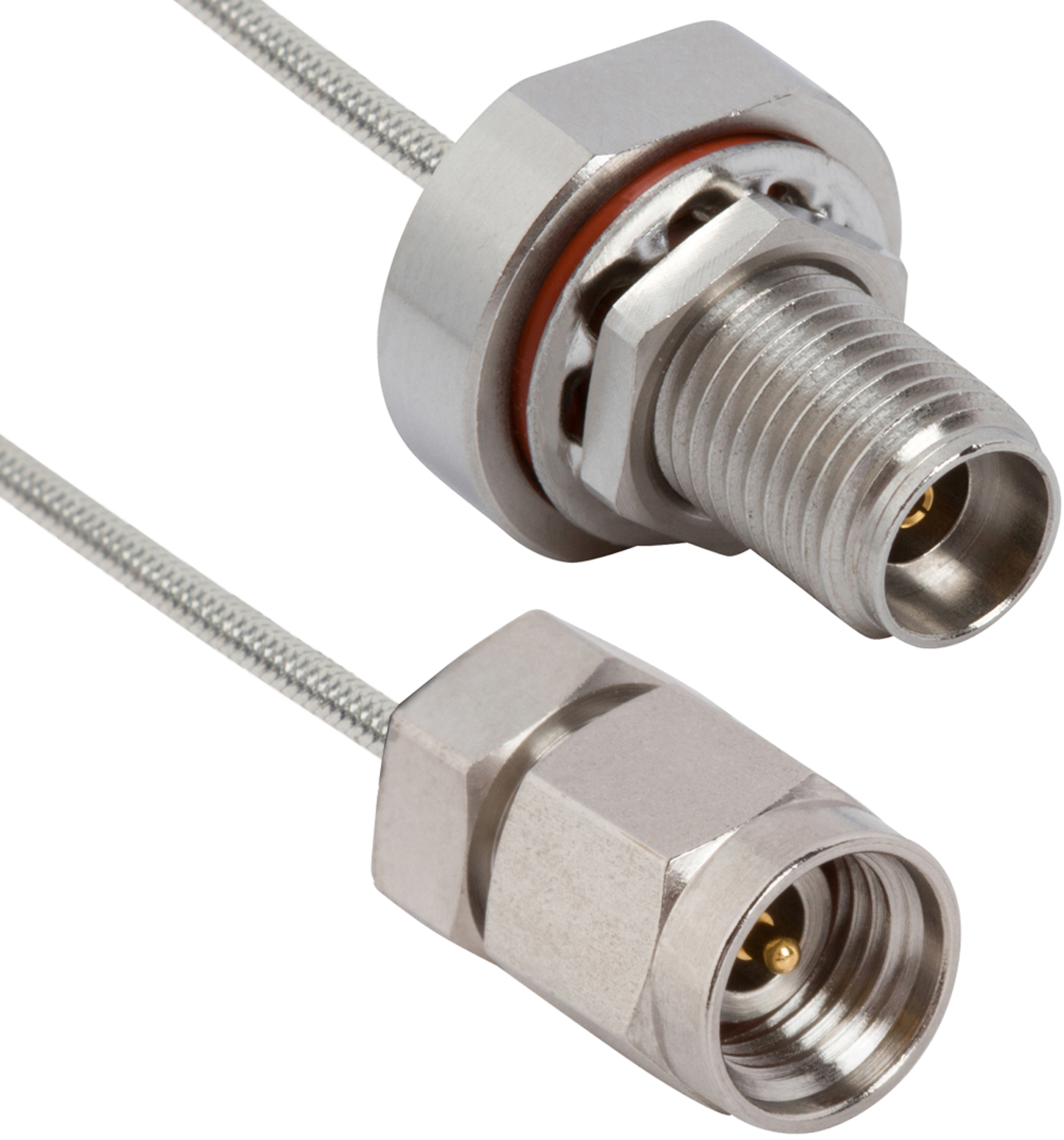

2.92mm Female Bulkhead to 2.92mm Male 6" Cable Assembly for .047 Conformable Cable
Available Inventory: 79
7015-1077
2.92mm Cable Assemblies 7015-1077
Part # 7015-1078

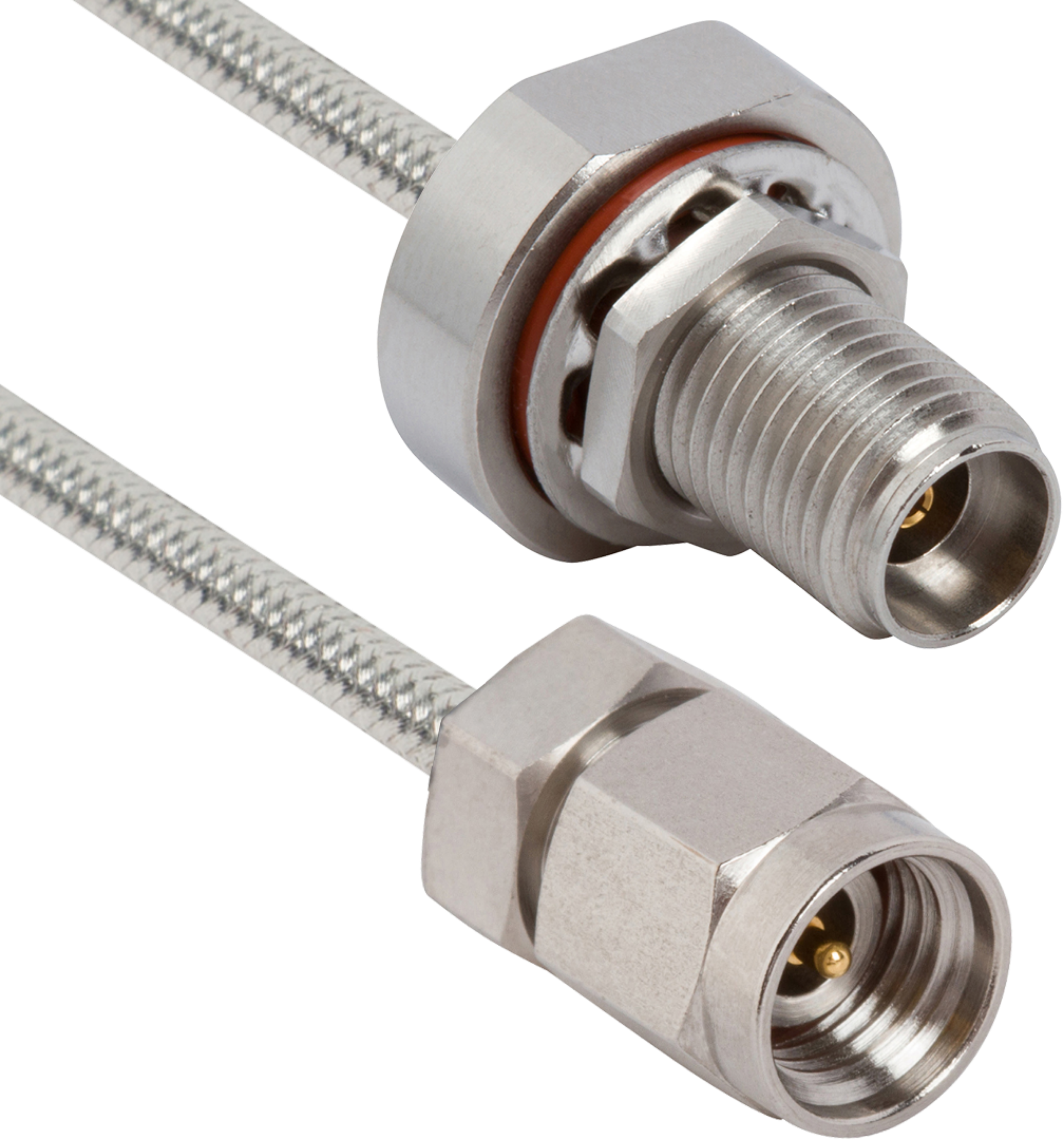

2.92mm Female Bulkhead to 2.92mm Male 6" Cable Assembly for .085 Conformable Cable
