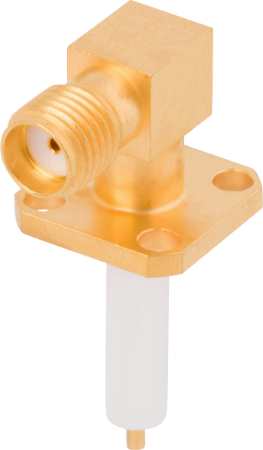

SMA Female Flange Mount Connector, 4 Hole, R/A (Candlestick)
P/N: 2960-6025

Loading...
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Threaded
Mounting Type Panel
Body Style 4 Hole
Style Candlestick
Number of Ports Single
Finish Gold
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Threaded
Mounting Type Panel
Body Style 4 Hole
Style Candlestick
Number of Ports Single
Finish Gold
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   2950-6061

SMA Female Flange Mount Connector, 4 Hole (Candlestick)

Available Inventory: 4043
2950-6061
SMA Connectors 2950-6061
Datasheet
Part #   SF2950-6061

SMA Female Flange Mount Connector, 4 Hole (Candlestick)

Available Inventory: 8474
SF2950-6061
SMA Connectors SF2950-6061
Datasheet
Part #   2950-6081

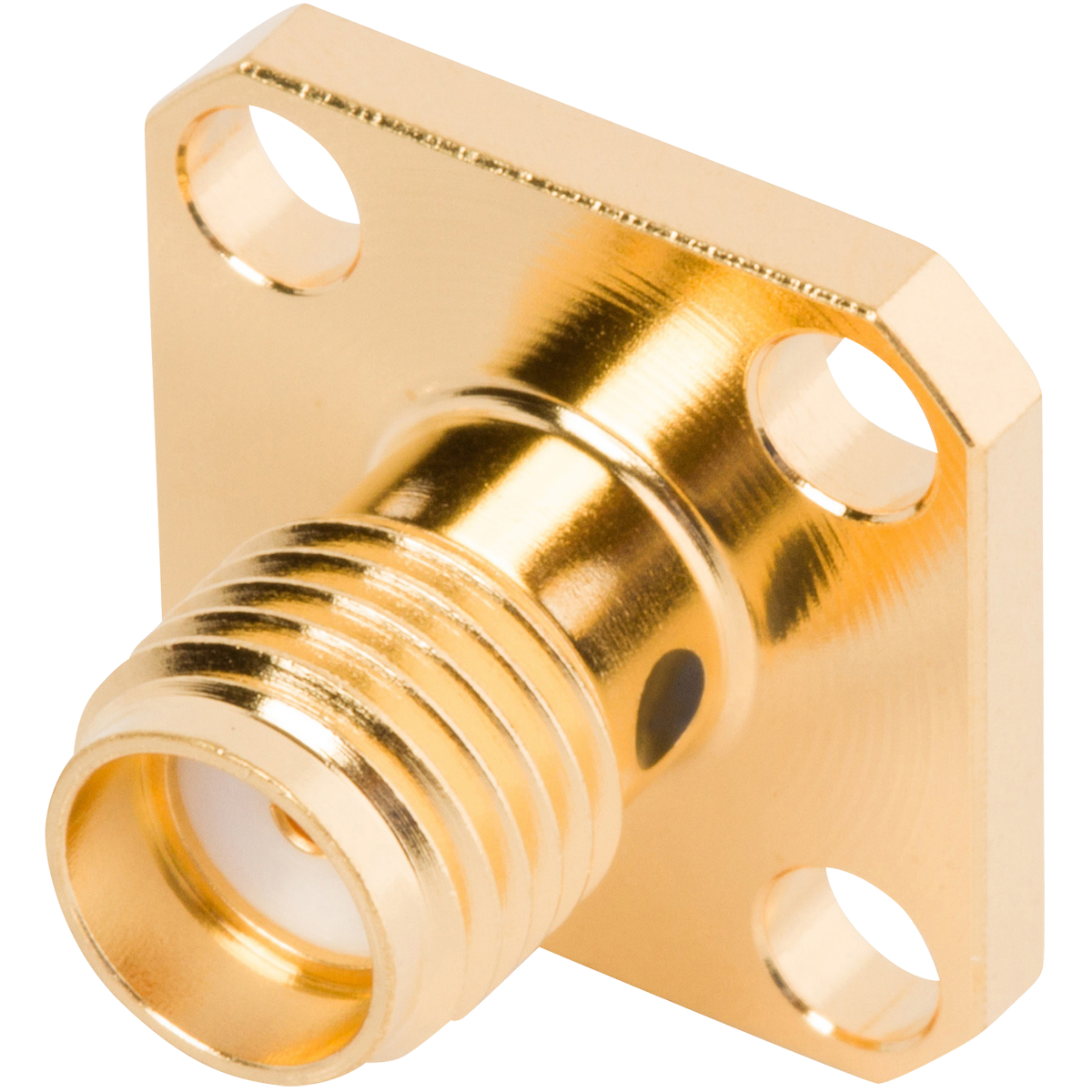

SMA Female Flange Mount Connector, 4 Hole (Solder Pot)
