Products specifications
| Attribute name | Attribute value |
|---|---|
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| Mounting Type | PCB Edge Launch |
| Termination Style | Solder |
| RF Series | SMA |
| Electrical | |
| Frequency | 18 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 1000 VRMS |
| Shielding Effectiveness | ≥ -90 dB |
| Mechanical | |
| Inter-mate ability | 2.92mm |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Vibration | MIL-STD-202, Method 204, Condition D |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| Mounting Type | PCB Edge Launch |
| Termination Style | Solder |
| RF Series | SMA |
| Electrical | |
| Frequency | 18 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 1000 VRMS |
| Shielding Effectiveness | ≥ -90 dB |
| Mechanical | |
| Inter-mate ability | 2.92mm |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Vibration | MIL-STD-202, Method 204, Condition D |
Customers Also Viewed
Part # 2985-6035
SMA Female PCB Edge Launch Connector, .063" PCB Thickness"
Available Inventory: 808
2985-6035
SMA Connectors 2985-6035
Part # 2985-6036

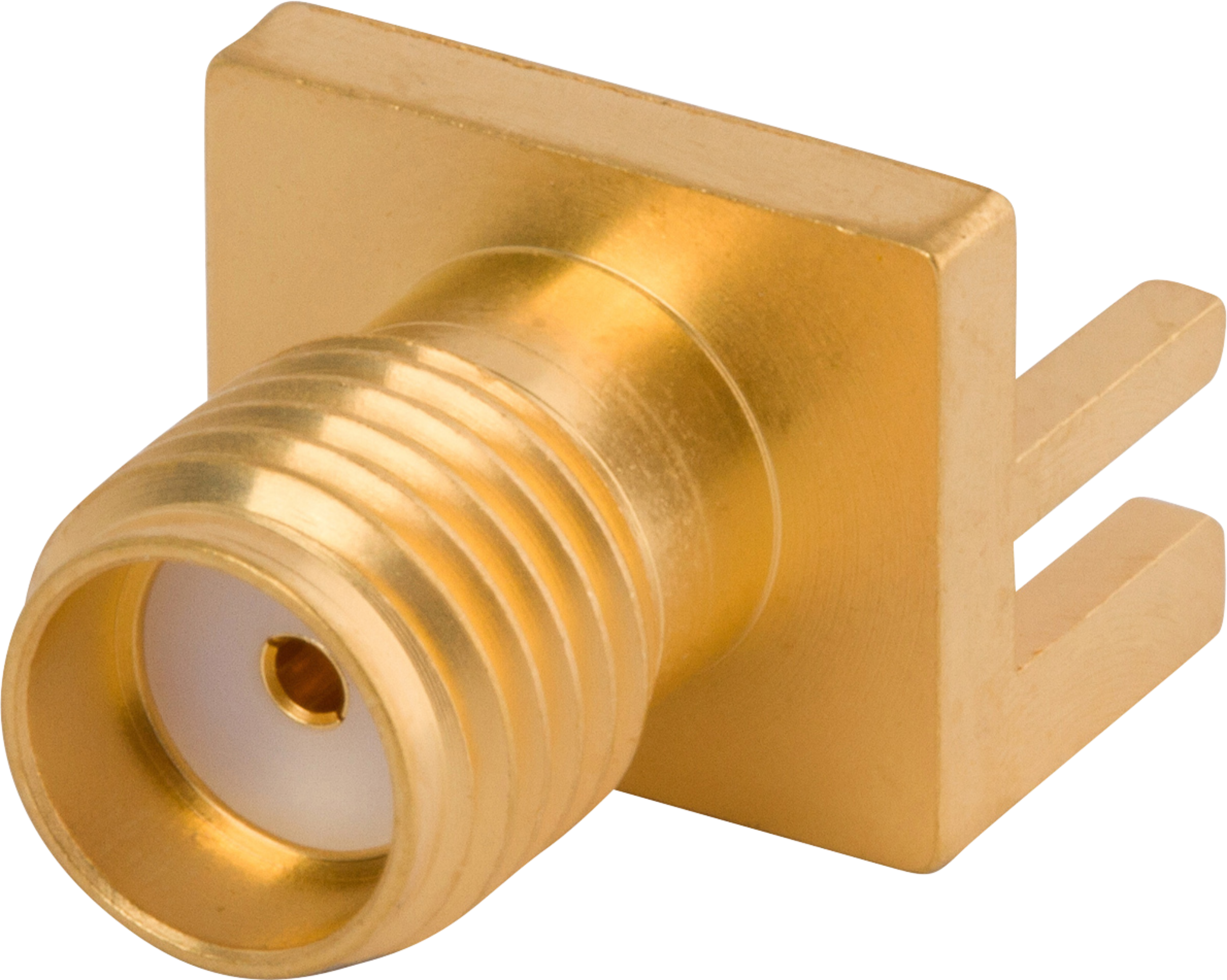

SMA Female PCB Edge Launch Connector, .042" PCB Thickness"
