Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMA |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Coupling | Threaded |
| RF Series 2 | SMA |
| Gender 2 | Jack (Female) |
| Finish | Passivated |
| Orientation 2 (Body) | Right Angle |
| Electrical | |
| Frequency | 18 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 1000 VRMS |
| Shielding Effectiveness | ≥ -90 dB |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | 2.92mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| EU REACH Regulation (EC) No. 1907/2006 | SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. | |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMA |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Coupling | Threaded |
| RF Series 2 | SMA |
| Gender 2 | Jack (Female) |
| Finish | Passivated |
| Orientation 2 (Body) | Right Angle |
| Electrical | |
| Frequency | 18 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 1000 VRMS |
| Shielding Effectiveness | ≥ -90 dB |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | 2.92mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed

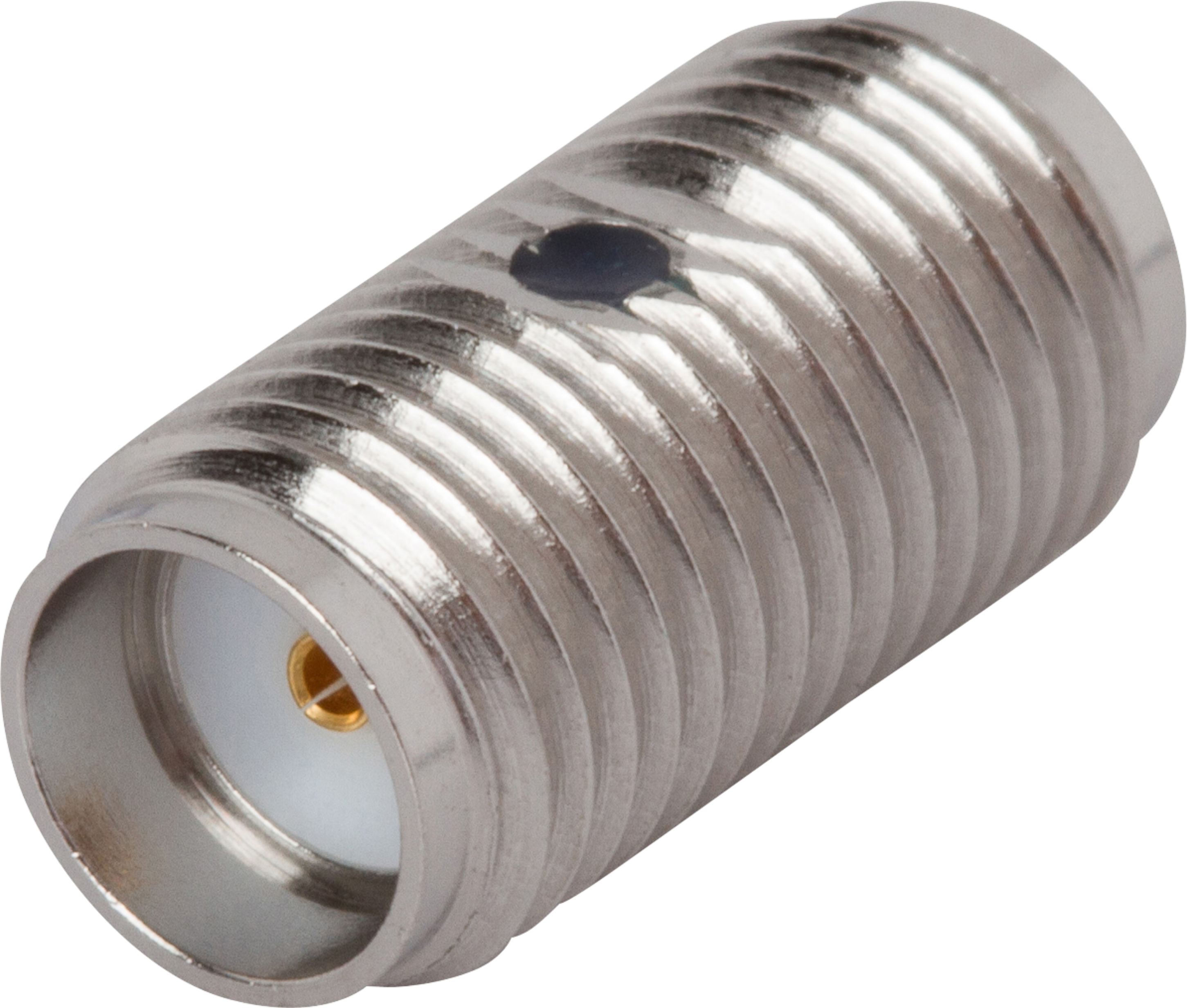

SF2992-6001
SMA Adapters SF2992-6001

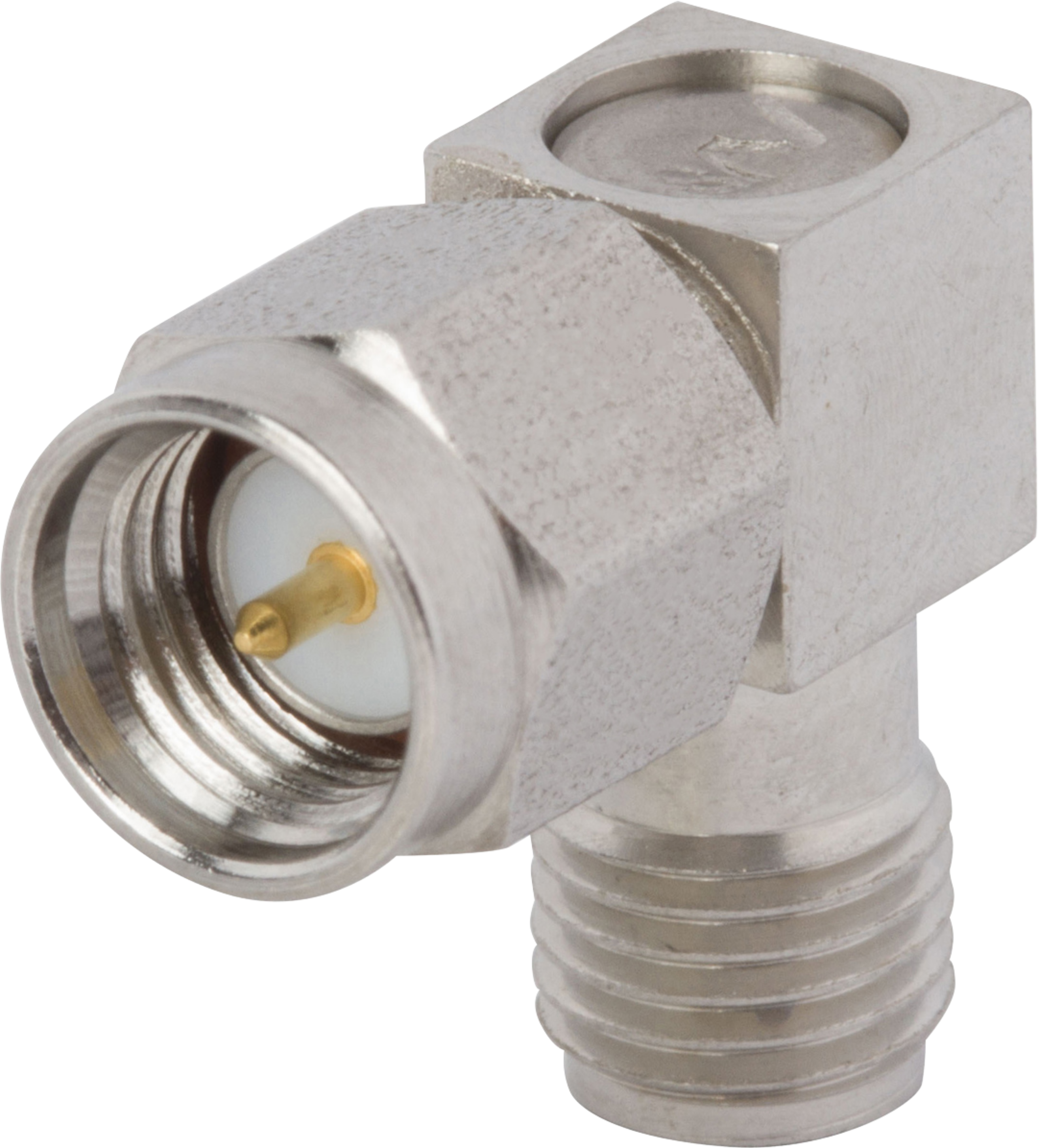

SF2994-6001
SMA Adapters SF2994-6001

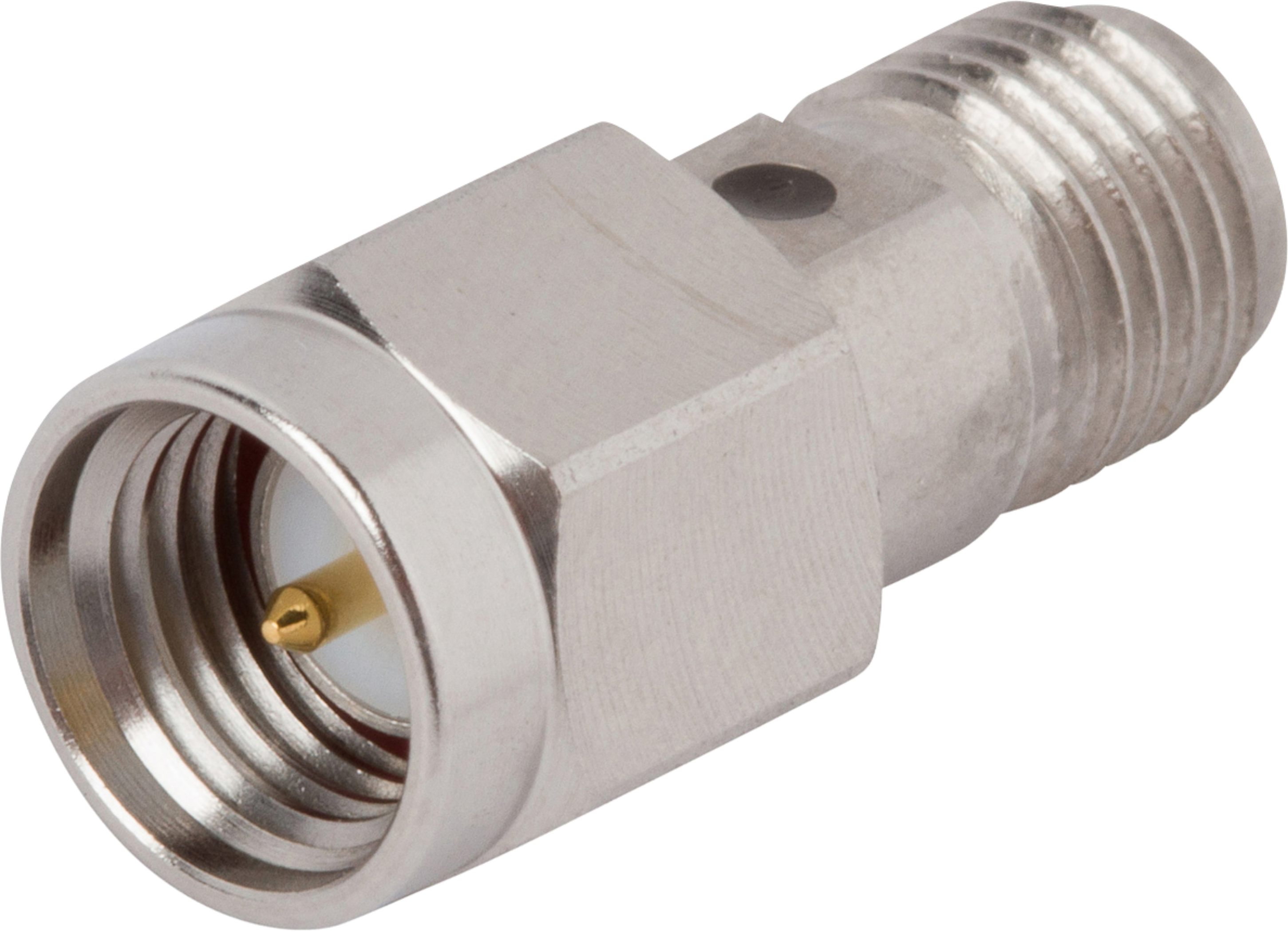

SF2997-6003
