SMA Female to Male Attenuator, 18 GHz (Nonscreened)
P/N: M3933/16-XXN

Loading...
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Gender Plug (Male)
Gender 2 Jack (Female)
RF Series 2 SMA
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Gender Plug (Male)
Gender 2 Jack (Female)
RF Series 2 SMA
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

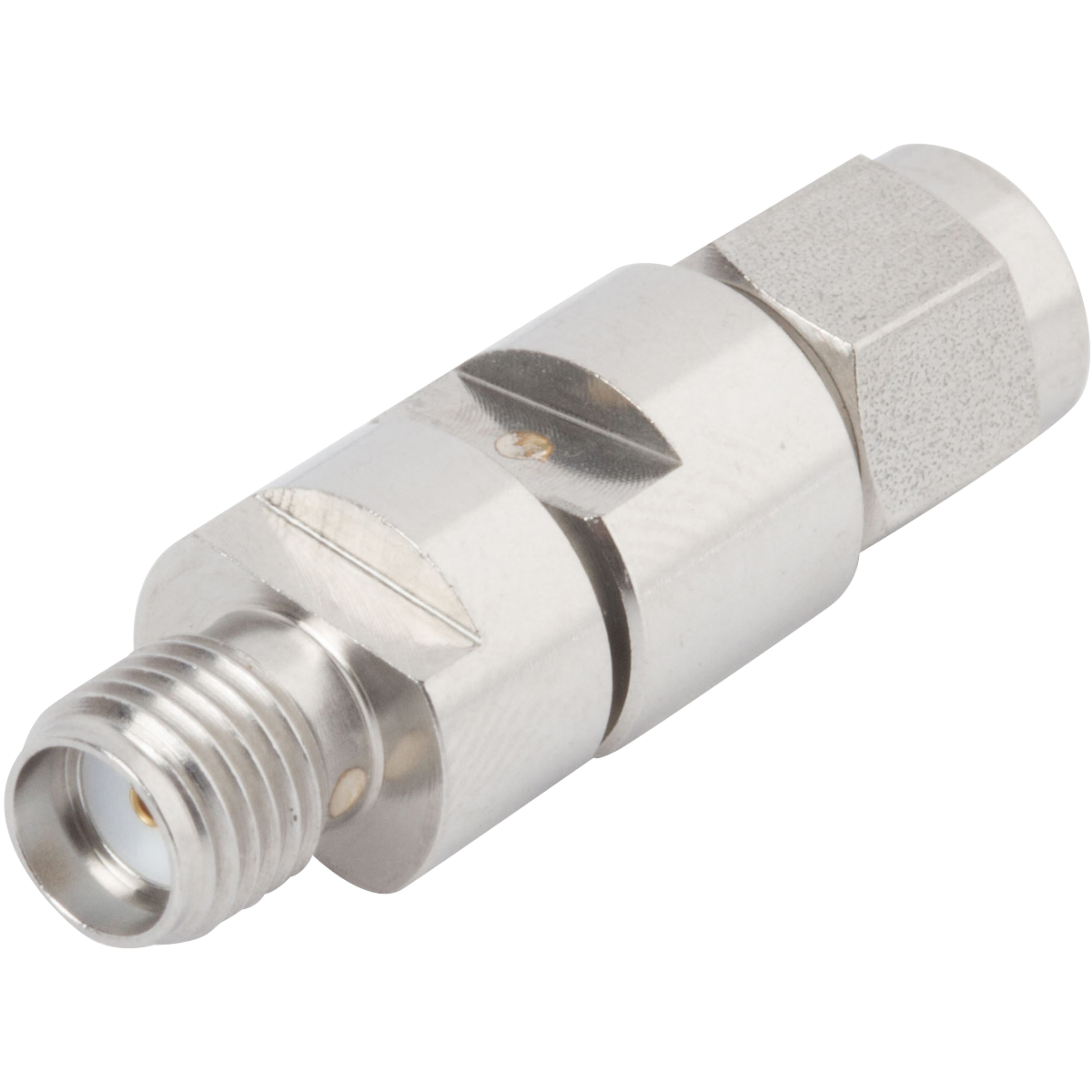

Part #   M3933/16-XXS

SMA Female to Male Attenuator, 18 GHz (Screened)

Available Inventory: 0
M3933/16-XXS
SMA Attenuator M3933/16-01S M3933/16-01S M3933/16-02S M3933/16-03S M3933/16-04S M3933/16-05S M3933/16-06S M3933/16-07S M3933/16-08S M3933/16-09S M3933/16-10S M3933/16-11S M3933/16-16S M3933/16-17S M3933/16-18S M3933/16-19S M3933/16-21S M3933/16-22S M3933/16-23S M3933/16-25S M3933/16-26S M3933/16-27S M3933/16-28S M3933/16-30S M3933/16-32S M3933/16-34S M3933/16-36S M3933/16-40S M3933/16-01S M3933/16-02S M3933/16-03S M3933/16-04S M3933/16-05S M3933/16-06S M3933/16-07S M3933/16-08S M3933/16-09S M3933/16-10S M3933/16-11S M3933/16-16S M3933/16-17S M3933/16-18S M3933/16-19S M3933/16-21S M3933/16-22S M3933/16-23S M3933/16-25S M3933/16-26S M3933/16-27S M3933/16-28S M3933/16-30S M3933/16-32S M3933/16-34S M3933/16-36S M3933/16-40S M3933/16-01S M3933/16-02S M3933/16-03S M3933/16-04S M3933/16-05S M3933/16-06S M3933/16-07S M3933/16-08S M3933/16-09S M3933/16-10S M3933/16-11S M3933/16-16S M3933/16-17S M3933/16-18S M3933/16-19S M3933/16-21S M3933/16-22S M3933/16-23S M3933/16-25S M3933/16-26S M3933/16-27S M3933/16-28S M3933/16-30S M3933/16-32S M3933/16-34S M3933/16-36S M3933/16-40S
Datasheet

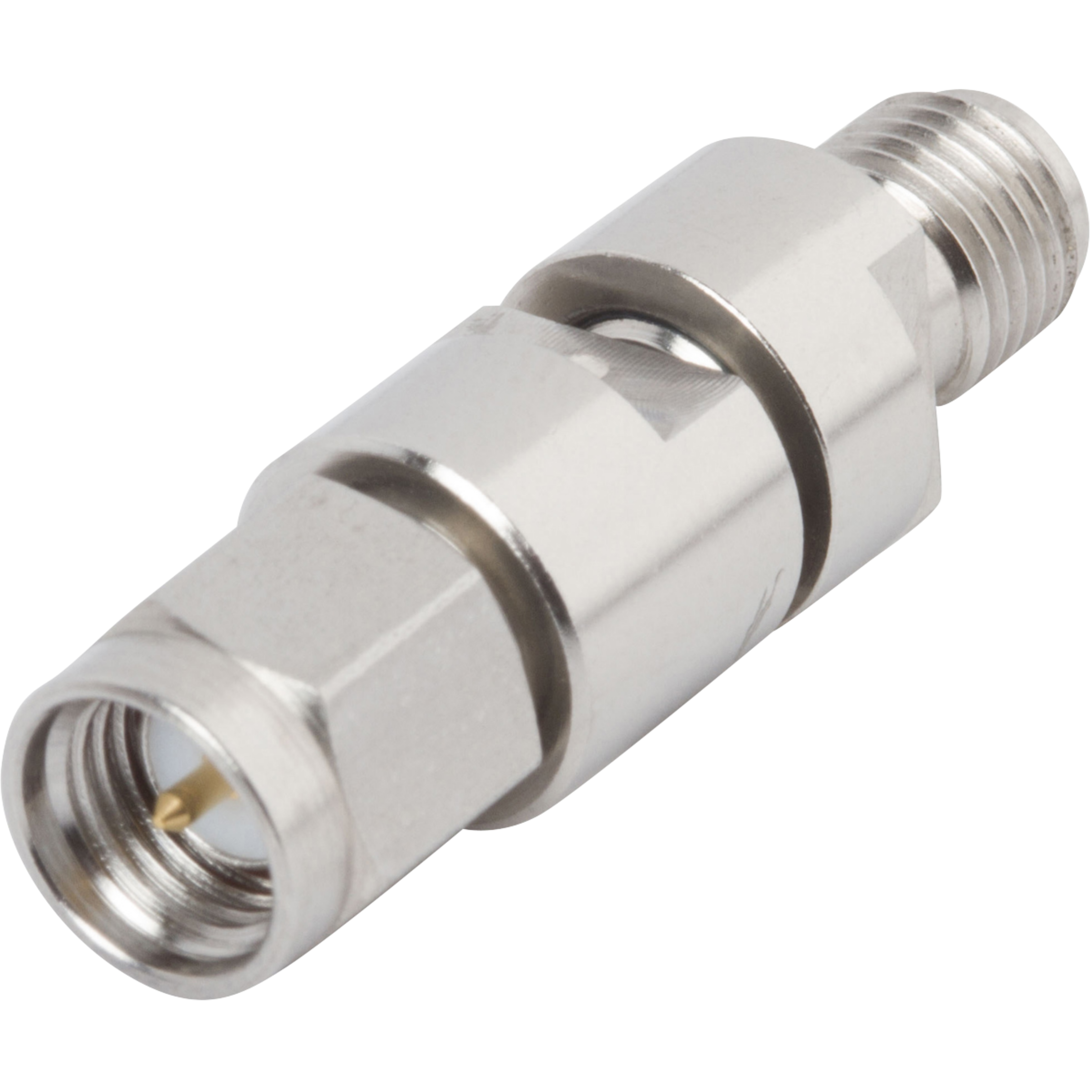

Part #   M3933/14-XXN
