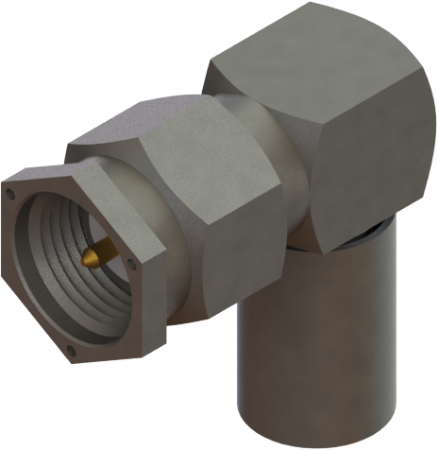

Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMA |
| Gender | Plug (Male) |
| Orientation (Body) | Right Angle |
| Coupling | Threaded |
| Number of Ports | Single |
| Termination Style | Crimp |
| Finish | Passivated |
| MIL-SPEC | M39012 |
| Cable Type | RG-58 |
| Electrical | |
| Frequency | 11 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Inter-mate ability | 2.92mm |
| Mating Cycles | 500 |
| Mating Torque | 7 - 10 in - lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMA |
| Gender | Plug (Male) |
| Orientation (Body) | Right Angle |
| Coupling | Threaded |
| Number of Ports | Single |
| Termination Style | Crimp |
| Finish | Passivated |
| MIL-SPEC | M39012 |
| Cable Type | RG-58 |
| Electrical | |
| Frequency | 11 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Inter-mate ability | 2.92mm |
| Mating Cycles | 500 |
| Mating Torque | 7 - 10 in - lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Customers Also Viewed
Part # M39012/56B3011

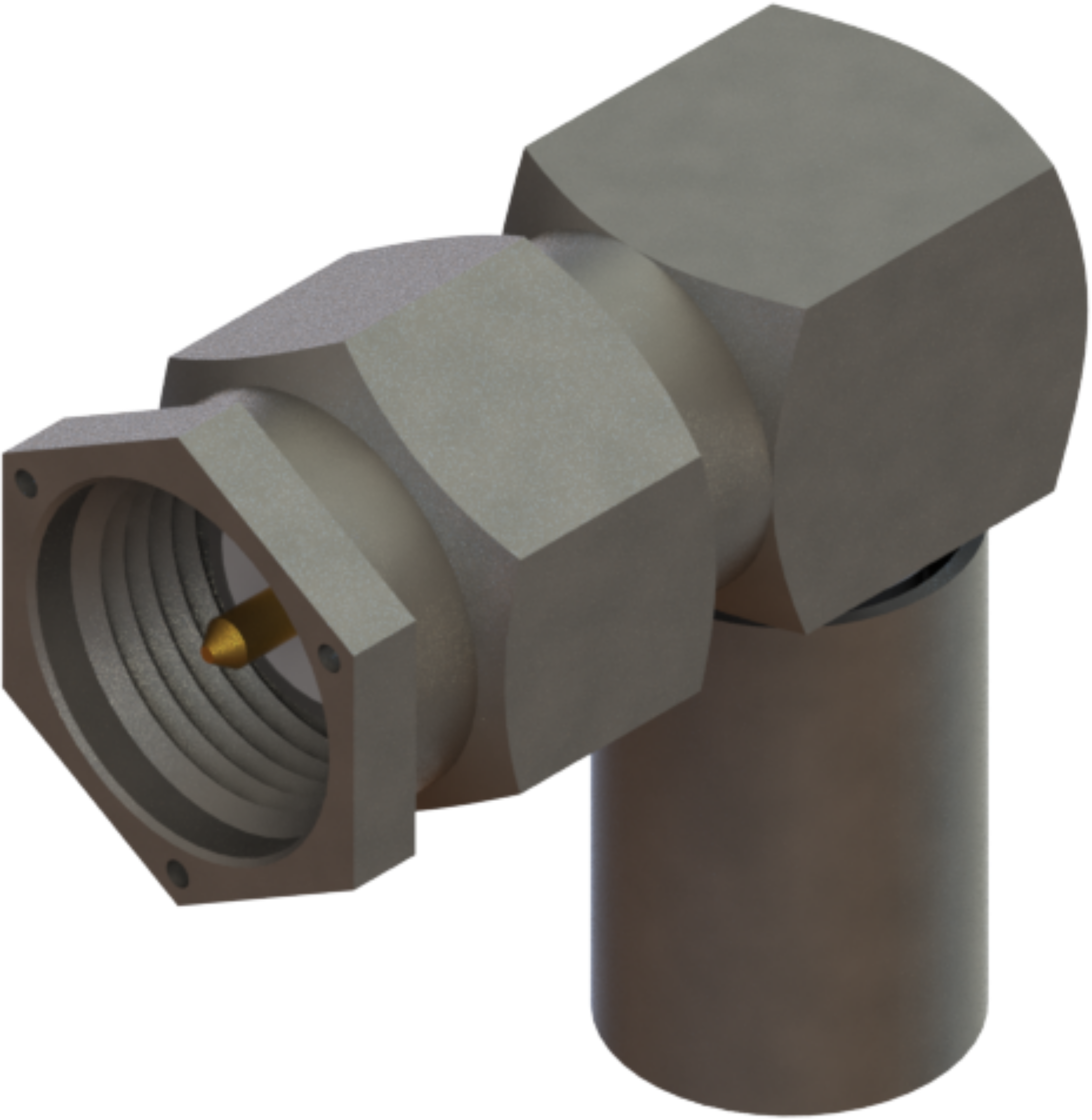

SMA Male Connector, Lockwire Holes, R/A for RG-178 Cable
