Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMA |
| Gender | Plug (Male) |
| Coupling | Threaded |
| RF Series 2 | SMA |
| Gender 2 | Jack (Female) |
| Electrical | |
| Frequency | 2 GHz, 12.4 GHz, 18 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Inter-mate ability | 2.92mm |
| Mating Torque | 7 - 10 in - lbs |
| Environmental | |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMA |
| Gender | Plug (Male) |
| Coupling | Threaded |
| RF Series 2 | SMA |
| Gender 2 | Jack (Female) |
| Electrical | |
| Frequency | 2 GHz, 12.4 GHz, 18 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Inter-mate ability | 2.92mm |
| Mating Torque | 7 - 10 in - lbs |
| Environmental | |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
M3933/14-XXN
SMA Attenuator M3933/14-01N M3933/14-01N M3933/14-02N M3933/14-03N M3933/14-04N M3933/14-05N M3933/14-06N M3933/14-07N M3933/14-08N M3933/14-09N M3933/14-10N M3933/14-11N M3933/14-12N M3933/14-18N M3933/14-19N M3933/14-20N M3933/14-21N M3933/14-22N M3933/14-23N M3933/14-01N M3933/14-02N M3933/14-03N M3933/14-04N M3933/14-05N M3933/14-06N M3933/14-07N M3933/14-08N M3933/14-09N M3933/14-10N M3933/14-11N M3933/14-12N M3933/14-18N M3933/14-19N M3933/14-20N M3933/14-21N M3933/14-22N M3933/14-23N M3933/14-01N M3933/14-02N M3933/14-03N M3933/14-04N M3933/14-05N M3933/14-06N M3933/14-07N M3933/14-08N M3933/14-09N M3933/14-10N M3933/14-11N M3933/14-12N M3933/14-18N M3933/14-19N M3933/14-20N M3933/14-21N M3933/14-22N M3933/14-23N

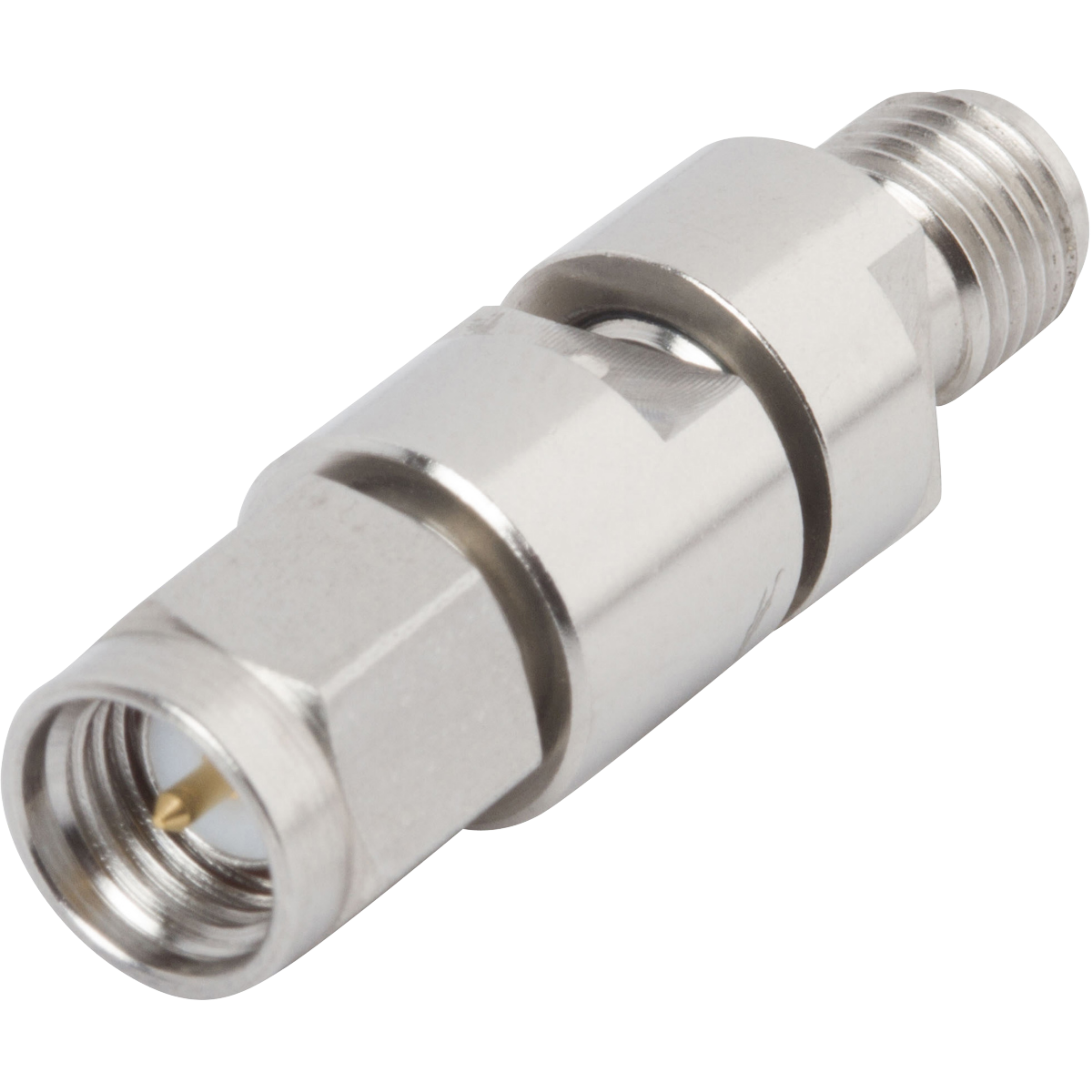

M3933/14-XXS
SMA Attenuator M3933/14-01S M3933/14-01S M3933/14-02S M3933/14-03S M3933/14-04S M3933/14-05S M3933/14-06S M3933/14-07S M3933/14-08S M3933/14-09S M3933/14-10S M3933/14-11S M3933/14-19S M3933/14-21S M3933/14-01S M3933/14-02S M3933/14-03S M3933/14-04S M3933/14-05S M3933/14-06S M3933/14-07S M3933/14-08S M3933/14-09S M3933/14-10S M3933/14-11S M3933/14-19S M3933/14-21S M3933/14-01S M3933/14-02S M3933/14-03S M3933/14-04S M3933/14-05S M3933/14-06S M3933/14-07S M3933/14-08S M3933/14-09S M3933/14-10S M3933/14-11S M3933/14-19S M3933/14-21S

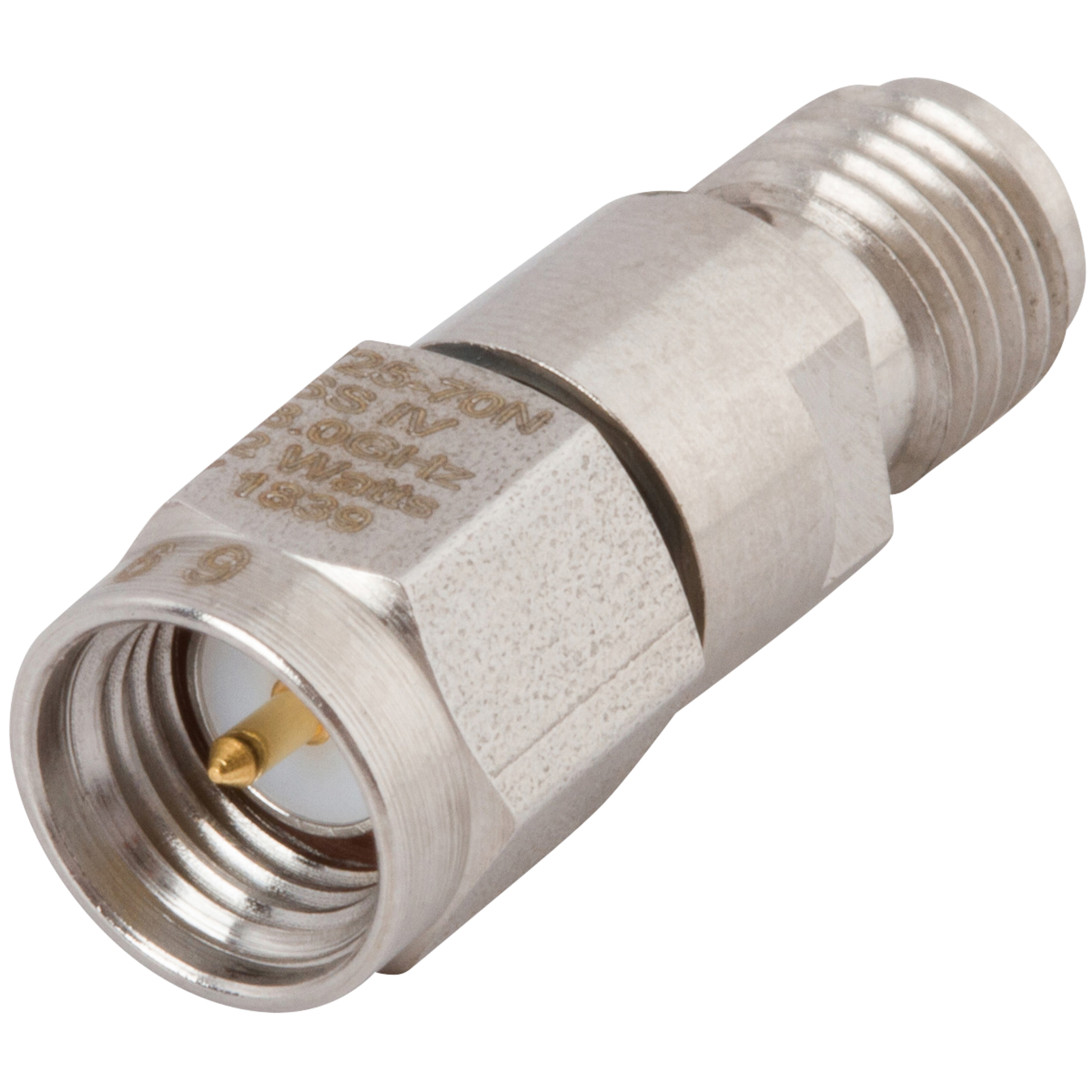

M3933/25-XXS
