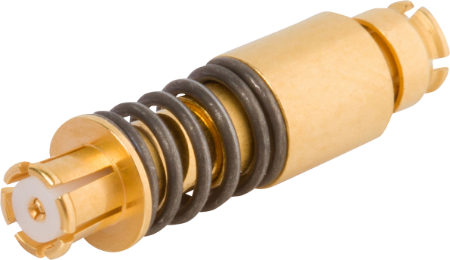

Name: SMP Female to Female Bullet, Spring Loaded (OAL 0.650")
SKU: 1112-4144
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	SMP
Gender	Jack (Female)
Orientation (Body)	Straight
Coupling	Push-on
Finish	Gold
Gender 2	Jack (Female)
Orientation 2 (Body)	Straight
RF Series 2	SMP
Electrical
Frequency	40 GHz
Impedance	50 ohms
Dielectric withstanding Voltage	500 VRMS
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB	1000
Insertion Force - SB	3.0 lbs
Mating Cycles - FD	100
Insertion Force - LD	5.0 lbs
Mating Cycles - LD	500
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - FD	9.0 lbs
Withdrawal Force - LD	7.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Environmental
Temperature Rating	-65°C to +165°C
Vibration	MIL-STD-202, Method 204, Condition D
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:03:43 AM

SMP Female to Female Bullet, Spring Loaded (OAL 0.650")
P/N: 1112-4144

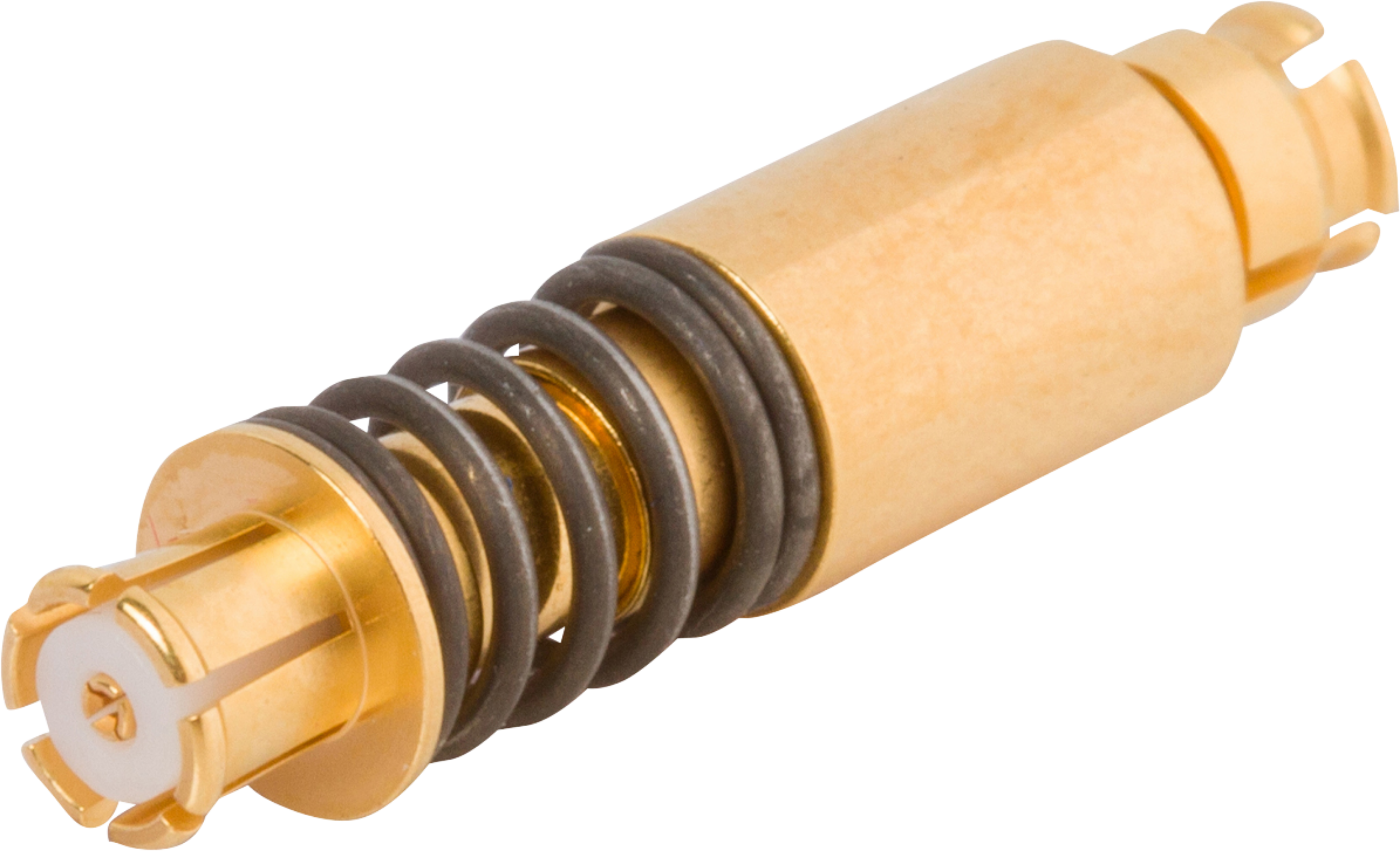

SMP Female to Female Bullet, Spring Loaded (OAL 0.725")
