Products specifications
| Attribute name | Attribute value |
|---|---|
| Orientation (Body) | Straight |
| RF Series | SMP |
| Coupling | Push-on |
| Orientation 2 (Body) | Straight |
| Gender 2 | Jack (Female) |
| Cable Type | 0.047 Flexible Coax |
| Gender | Jack (Female) |
| RF Series 2 | SMPM |
| Cable Length | 24" |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 40 GHz |
| Dielectric withstanding Voltage | 500 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - SB | 1000 |
| Mating Cycles - LD | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 3.0 lbs |
| Insertion Force - LD | 5.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Withdrawal Force - FD | 9.0 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Radial Misalignment | 3° Max |
| Axial Misalignment | .010” Max |
| Environmental | |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Orientation (Body) | Straight |
| RF Series | SMP |
| Coupling | Push-on |
| Orientation 2 (Body) | Straight |
| Gender 2 | Jack (Female) |
| Cable Type | 0.047 Flexible Coax |
| Gender | Jack (Female) |
| RF Series 2 | SMPM |
| Cable Length | 24" |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 40 GHz |
| Dielectric withstanding Voltage | 500 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - SB | 1000 |
| Mating Cycles - LD | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 3.0 lbs |
| Insertion Force - LD | 5.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Withdrawal Force - FD | 9.0 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Radial Misalignment | 3° Max |
| Axial Misalignment | .010” Max |
| Environmental | |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
7012-1294

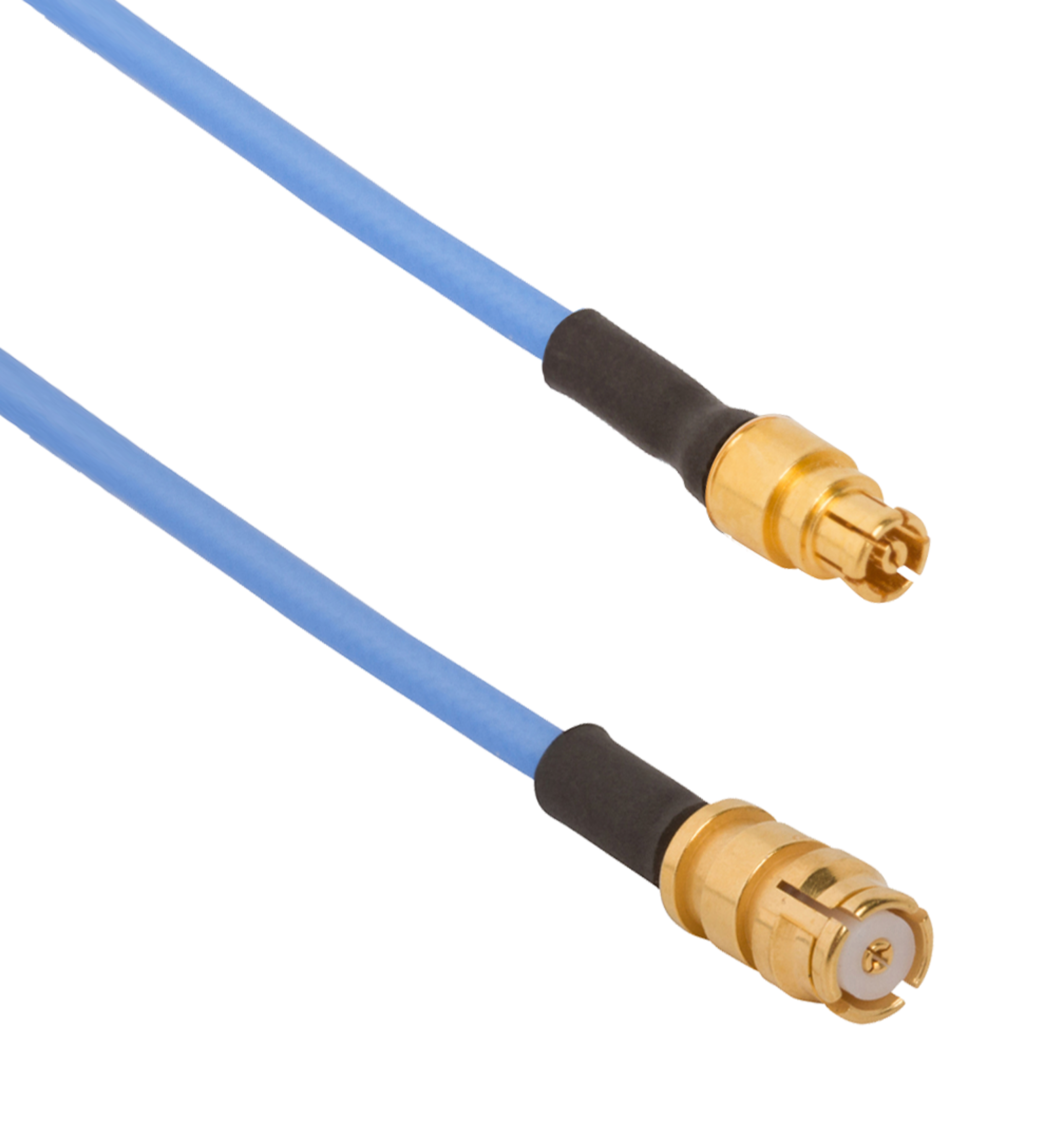

SMP Cable Assemblies 7012-1294
Part # 7012-1295
SMP Female to SMPM Female 12" Cable Assembly for .047 Cable"
Available Inventory: 46
7012-1295
SMP Cable Assemblies 7012-1295
Part # 7012-1299
SMP Female to SMPM Female 24" Cable Assembly for .085 Cable"
Available Inventory: 0
7012-1299

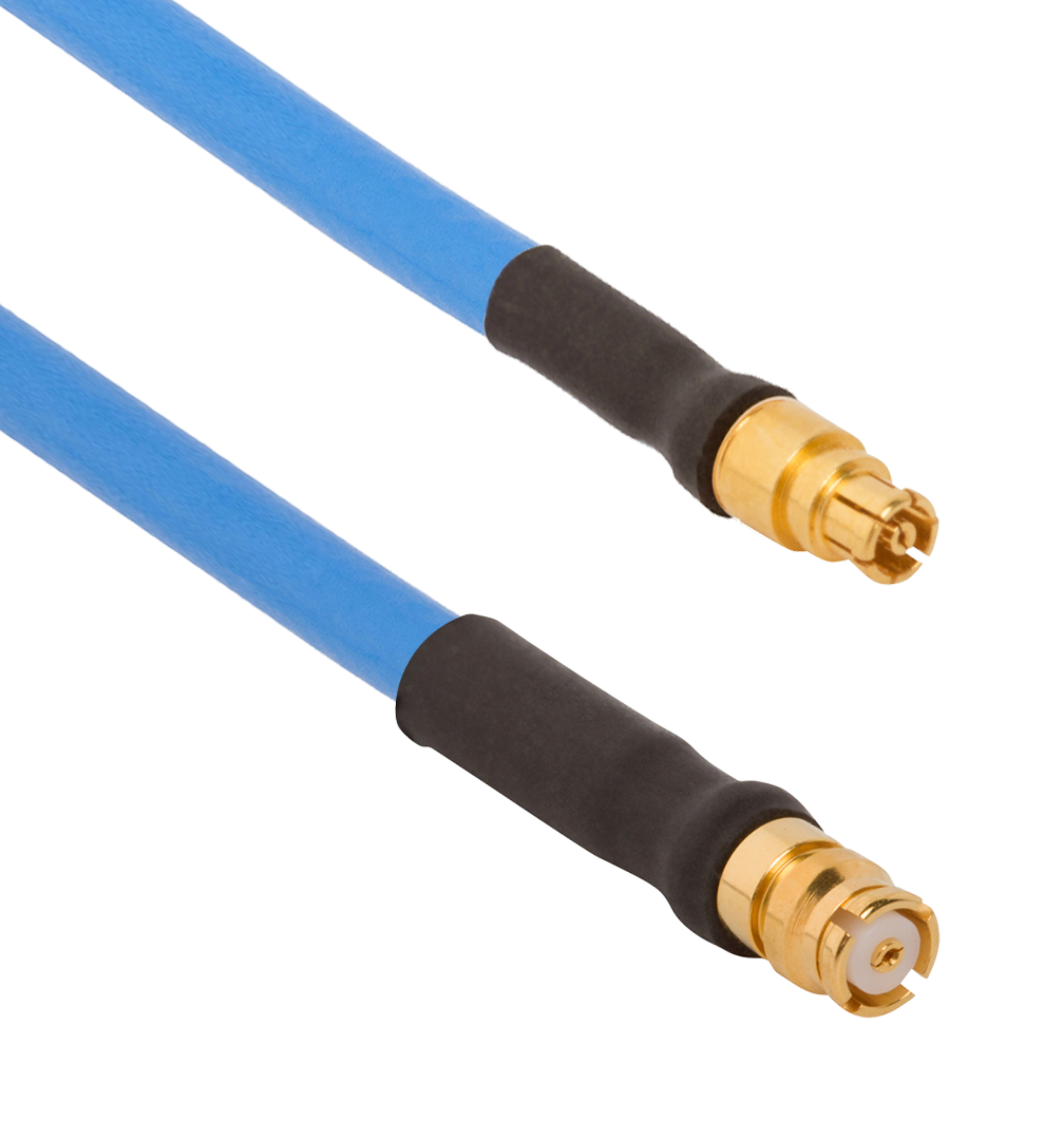

SMP Cable Assemblies 7012-1299
