Name: SMP Male Thread-In Hermetic Connector (.015"), LD"
SKU: 1279-4002
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
Orientation (Body)	Straight
Gender	Plug (Male)
Detent	Limited Detent
Coupling	Push-on
Mounting Type	Panel
Style	Hermetic
Number of Ports	Single
RF Series	SMP
Electrical
Frequency	26.5 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mechanical
Mating Cycles - LD	500
Mating Cycles - SB	1000
Mating Cycles - FD	100
Insertion Force - SB	3.0 lbs
Insertion Force - LD	5.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - LD	7.0 lbs
Withdrawal Force - FD	9.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Thermal Shock	MIL-STD-202, Method 107, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

SMP Male Thread-In Hermetic Connector (.015"), LD"
P/N: 1279-4002

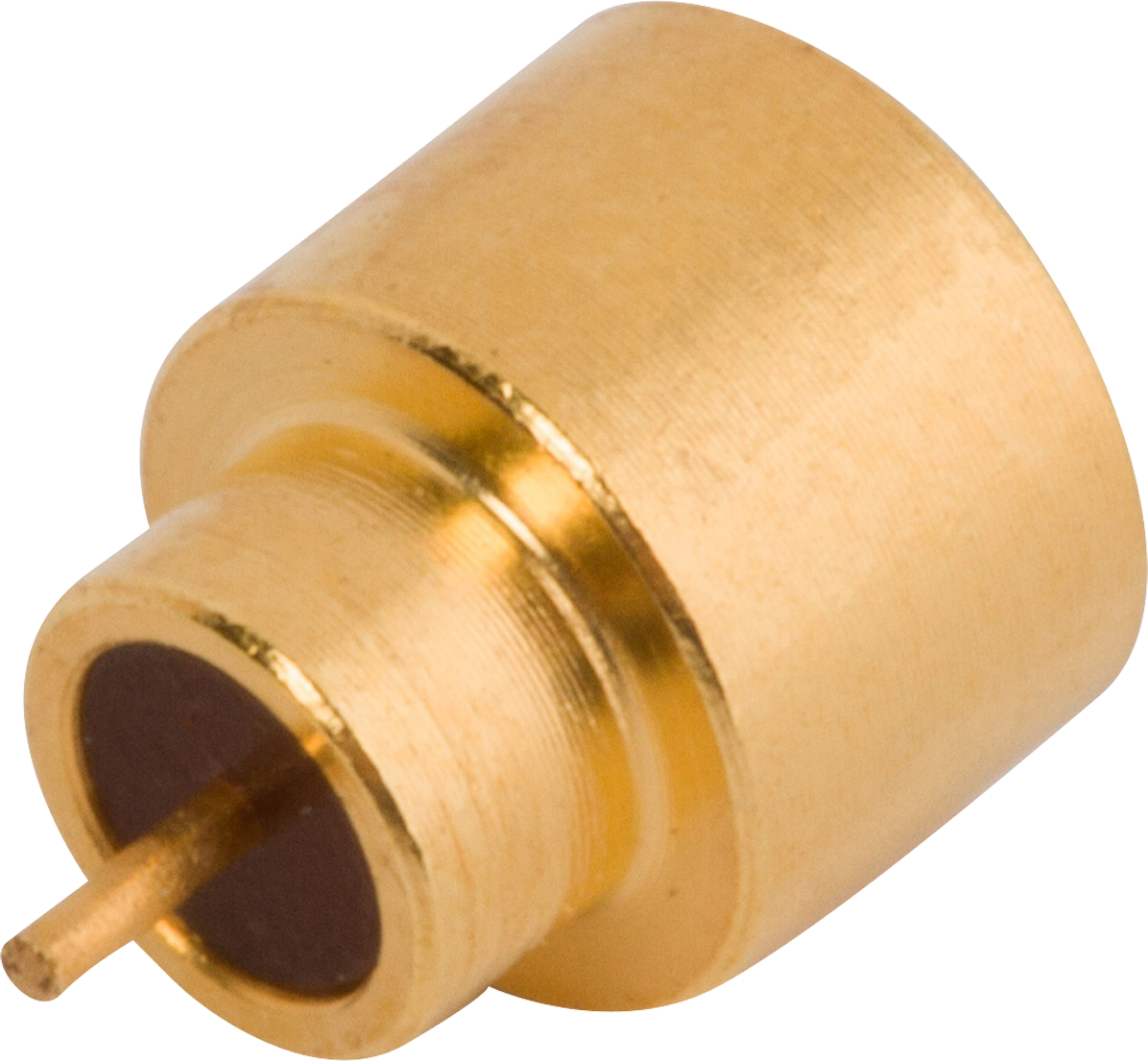

SMP Male Solder-In Hermetic Connector (.015"), FD"
