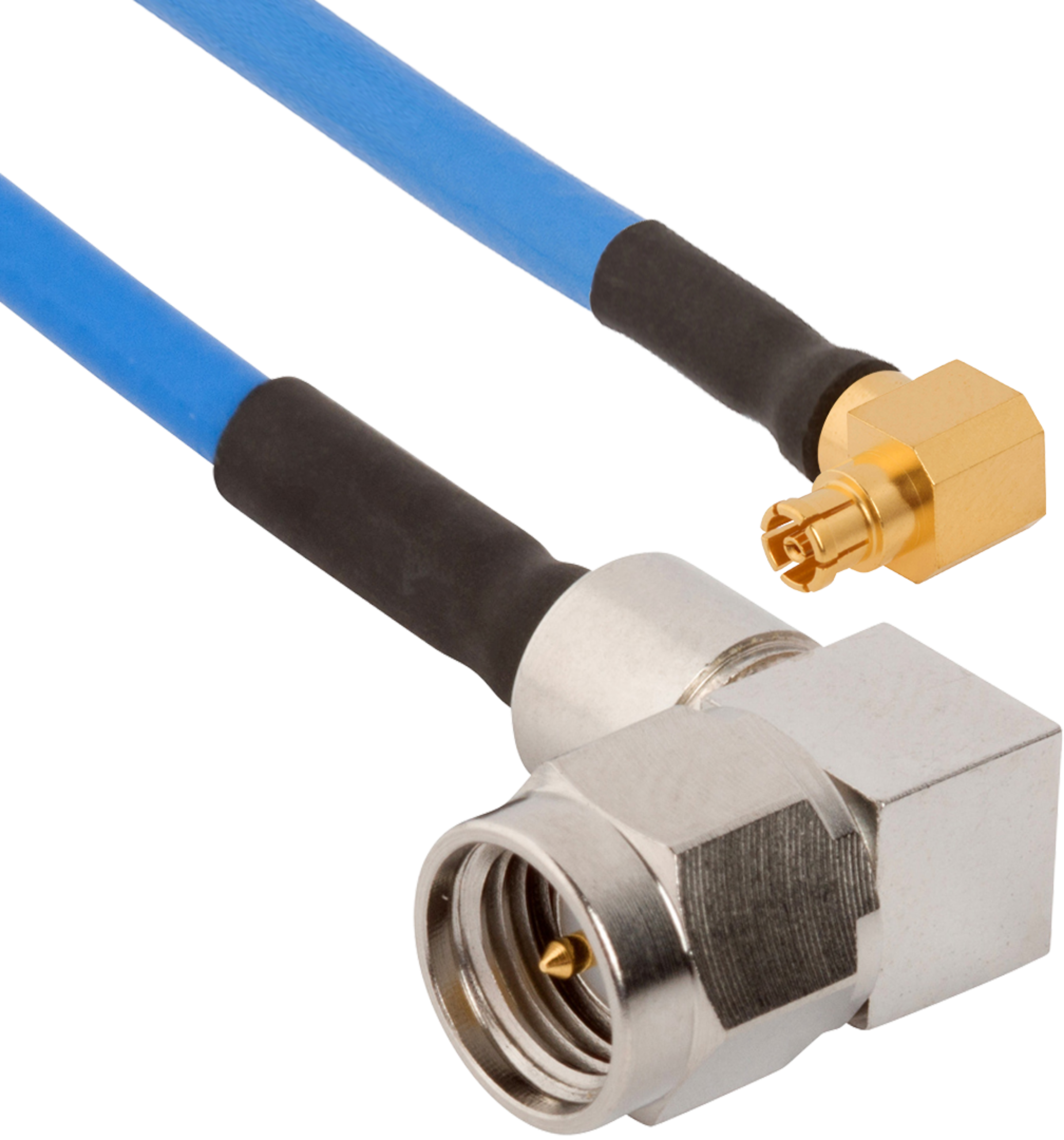

| Attribute name | Attribute value |
|---|---|
| RF Series | SMPM |
| Orientation (Body) | Right Angle |
| Gender | Jack (Female) |
| Coupling | Push-on |
| Termination Style | Solder |
| Gender 2 | Plug (Male) |
| Cable Type | 0.085 Flexible Coax |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Right Angle |
| Cable Length | 12" |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 18 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Insertion Force - SB | 2.5 lbs |
| Mating Cycles - FD | 100 |
| Insertion Force - FD | 4.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Withdrawal Force - FD | 6.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| EU RoHS Directive 2011/65/EU | Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. | |
| Attribute name | Attribute value |
|---|---|
| RF Series | SMPM |
| Orientation (Body) | Right Angle |
| Gender | Jack (Female) |
| Coupling | Push-on |
| Termination Style | Solder |
| Gender 2 | Plug (Male) |
| Cable Type | 0.085 Flexible Coax |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Right Angle |
| Cable Length | 12" |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 18 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Insertion Force - SB | 2.5 lbs |
| Mating Cycles - FD | 100 |
| Insertion Force - FD | 4.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Withdrawal Force - FD | 6.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |

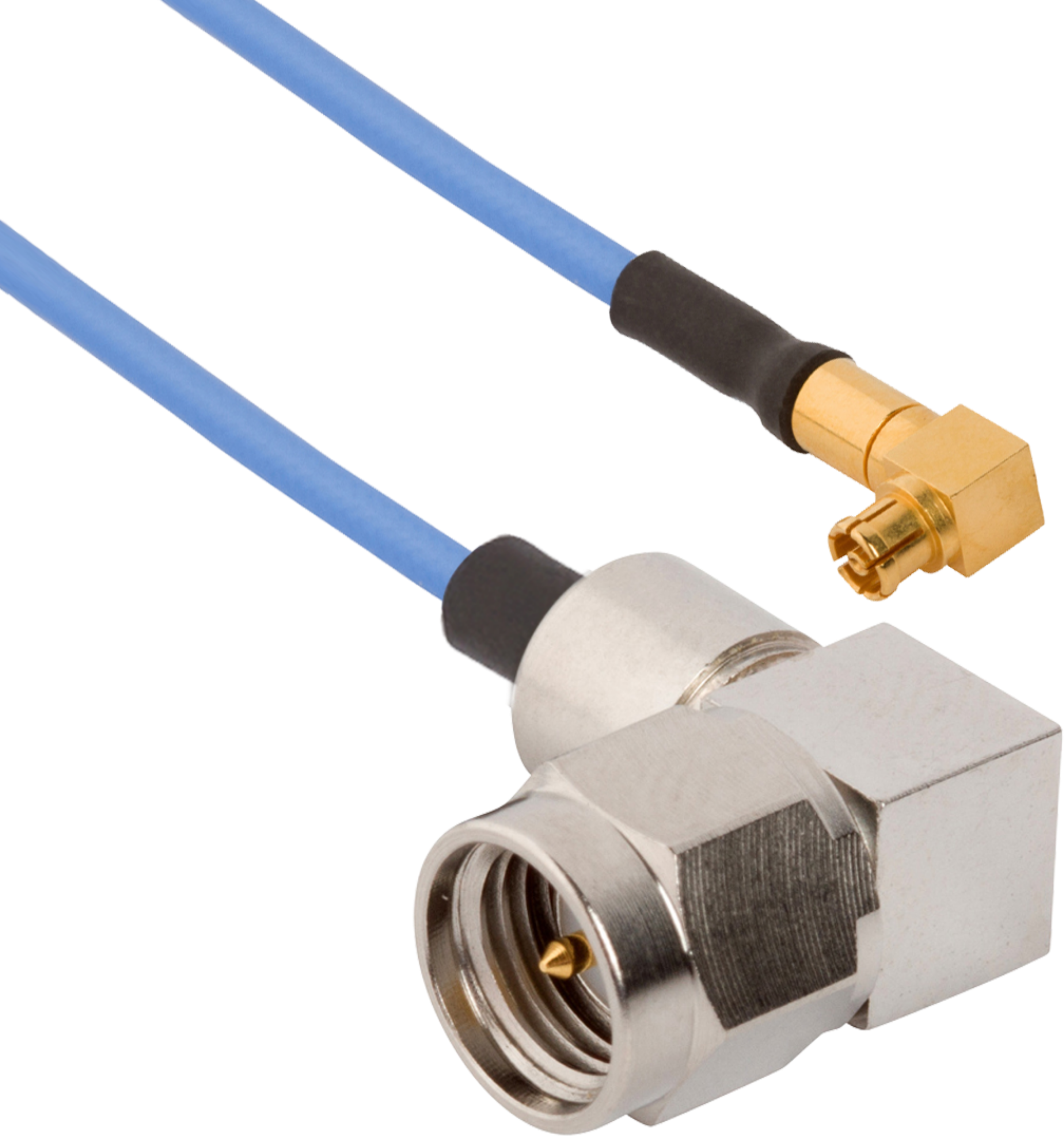

Part # 7032-7238
SMPM Female R/A to SMA Male 12" R/A Cable Assembly for .047 Cable"
Available Inventory: 36
Part # 7032-7240
SMPM Female R/A to SMA Male R/A 6" Cable Assembly for .085 Cable"
Available Inventory: 85
