SMPM Female R/A to SMA Male R/A 6" Cable Assembly for .047 Cable"
P/N: 7032-7237

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 SMA
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Right Angle
Cable Length 6"
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
RF Series 2 SMA
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Right Angle
Cable Length 6"
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7032-7239

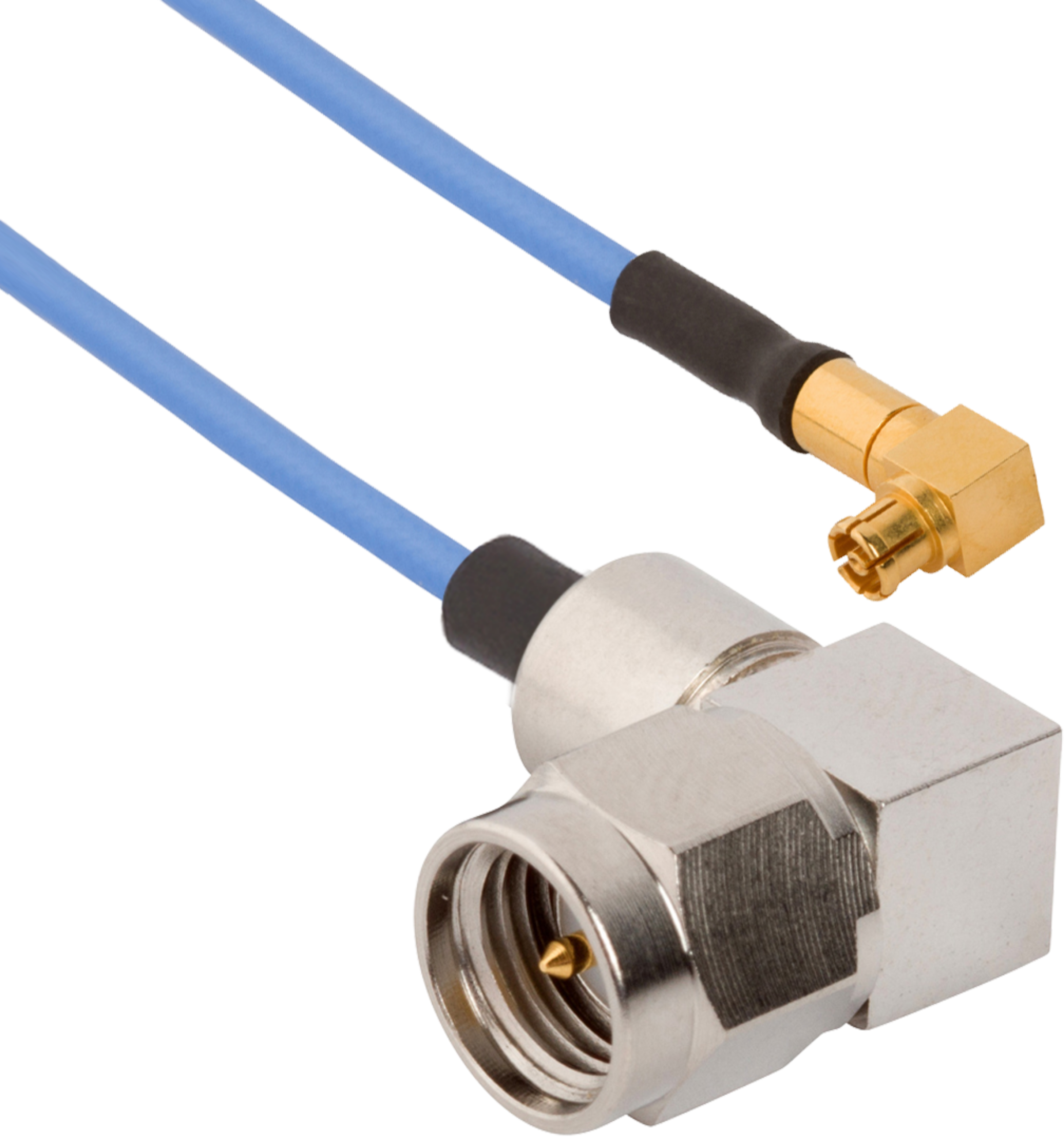

SMPM Female R/A to SMA Male R/A 24" Cable Assembly for .047 Cable"

Available Inventory: 0
7032-7239
SMPM Cable Assemblies 7032-7239
Datasheet
Part #   7032-7238

SMPM Female R/A to SMA Male 12" R/A Cable Assembly for .047 Cable"

Available Inventory: 36
7032-7238
SMPM Cable Assemblies 7032-7238
Datasheet
Part #   7032-7240

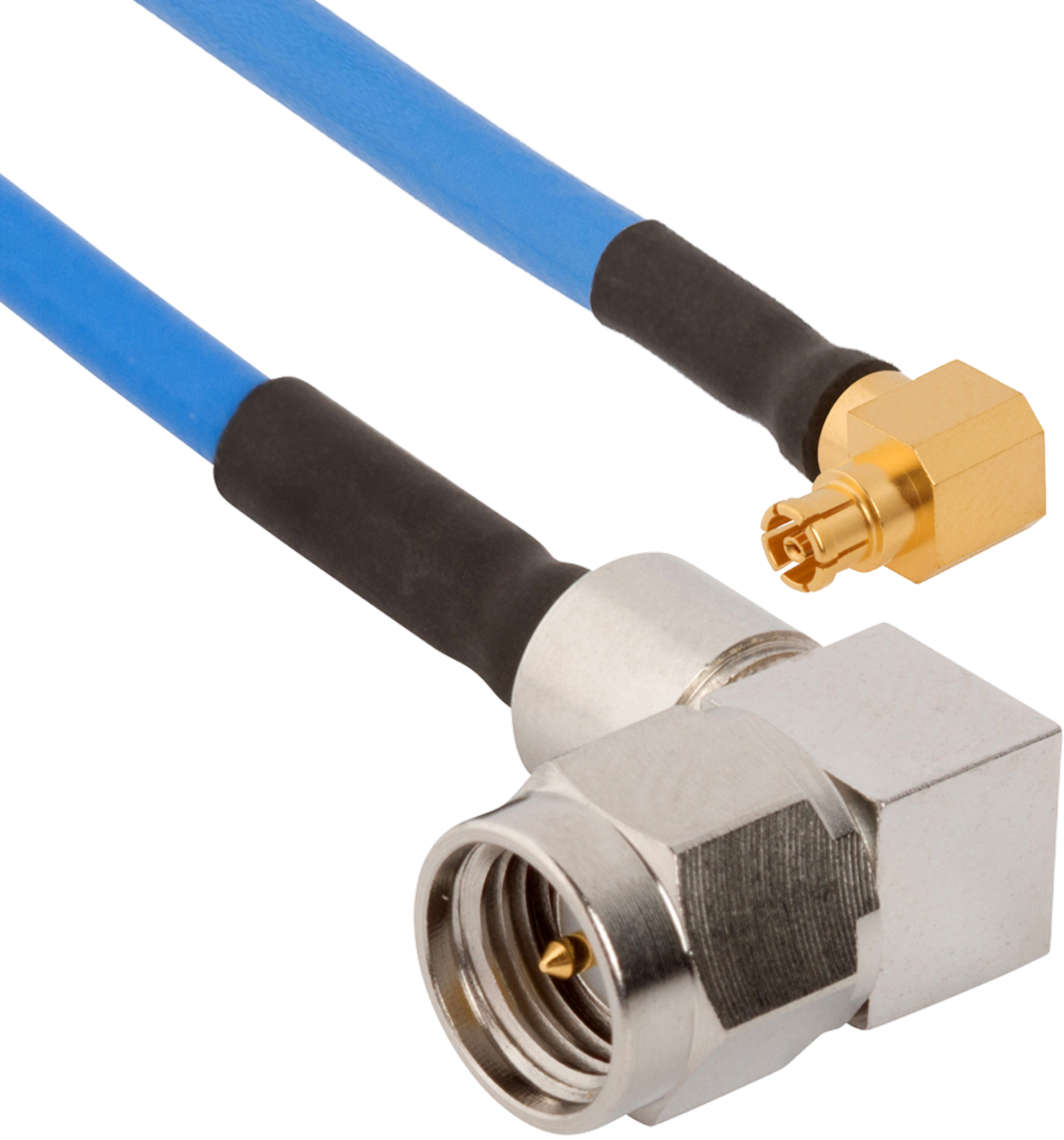

SMPM Female R/A to SMA Male R/A 6" Cable Assembly for .085 Cable"
