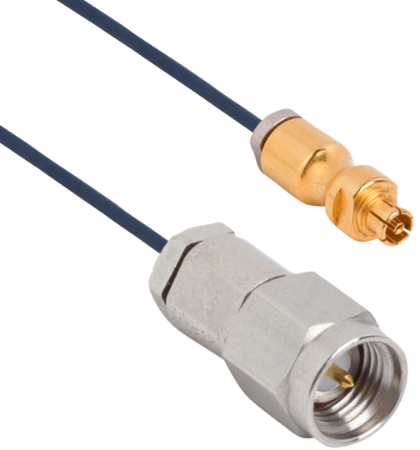

| Attribute name | Attribute value |
|---|---|
| Family | SuperFlex |
| RF Series | SMPM |
| Orientation (Body) | Straight |
| Termination Style | Solder |
| Coupling | Push-on |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.047 SuperFlex Coax |
| Gender | Jack (Female) |
| Number of Ports | Single |
| Cable Length | 12" |
| Electrical | |
| Frequency | 26.5 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Withdrawal Force - FD | 6.5 lbs |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| EU REACH Regulation (EC) No. 1907/2006 | SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. | |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | SuperFlex |
| RF Series | SMPM |
| Orientation (Body) | Straight |
| Termination Style | Solder |
| Coupling | Push-on |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.047 SuperFlex Coax |
| Gender | Jack (Female) |
| Number of Ports | Single |
| Cable Length | 12" |
| Electrical | |
| Frequency | 26.5 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Withdrawal Force - FD | 6.5 lbs |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
Customers Also Viewed
Part # 7032-7845

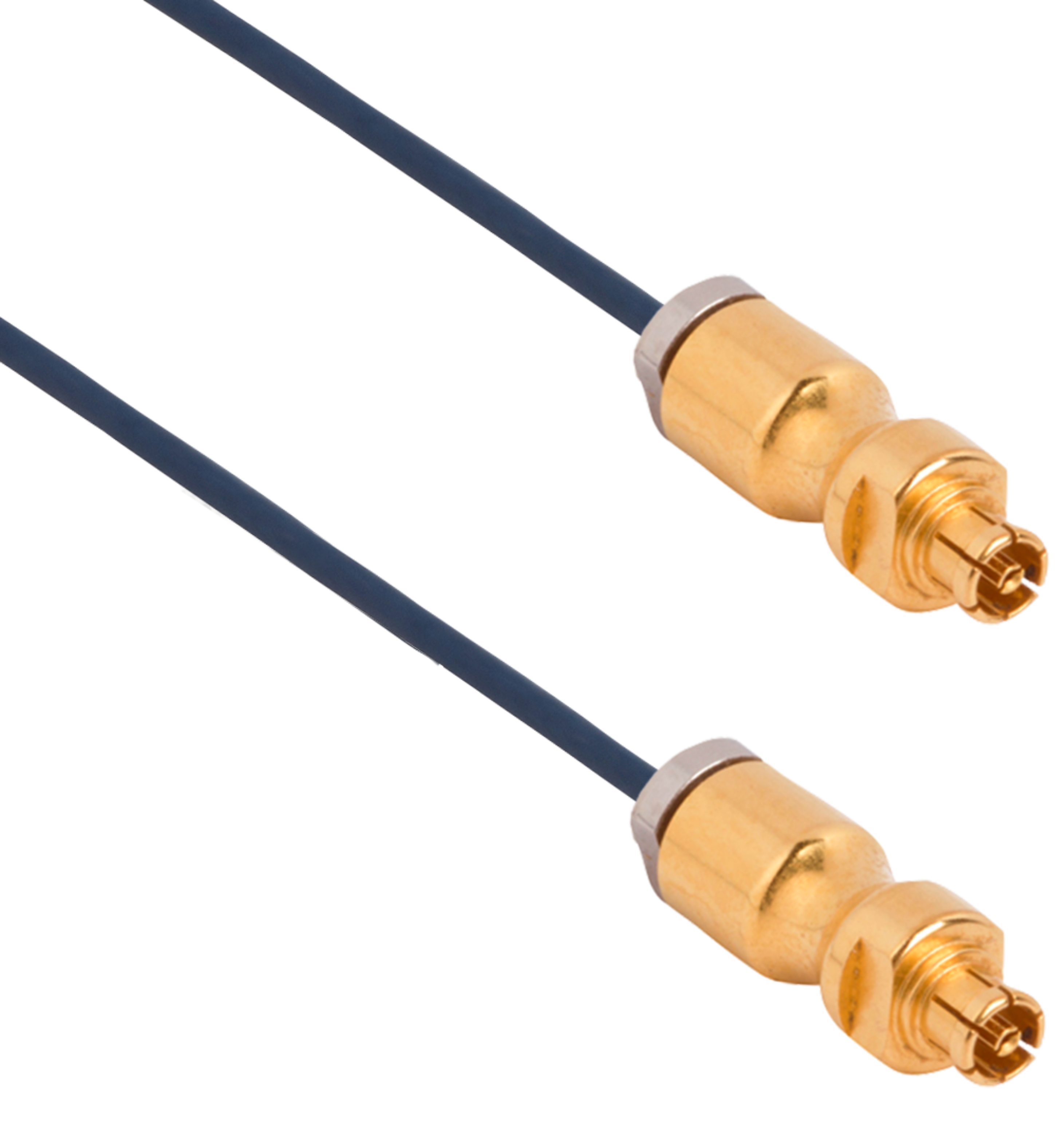

SMPM Female to SMPM Female 6" Cable Assembly for .047 SuperFlex Cable"
Available Inventory: 13
7032-7845
SMPM Cable Assemblies 7032-7845
Part # 7029-3437

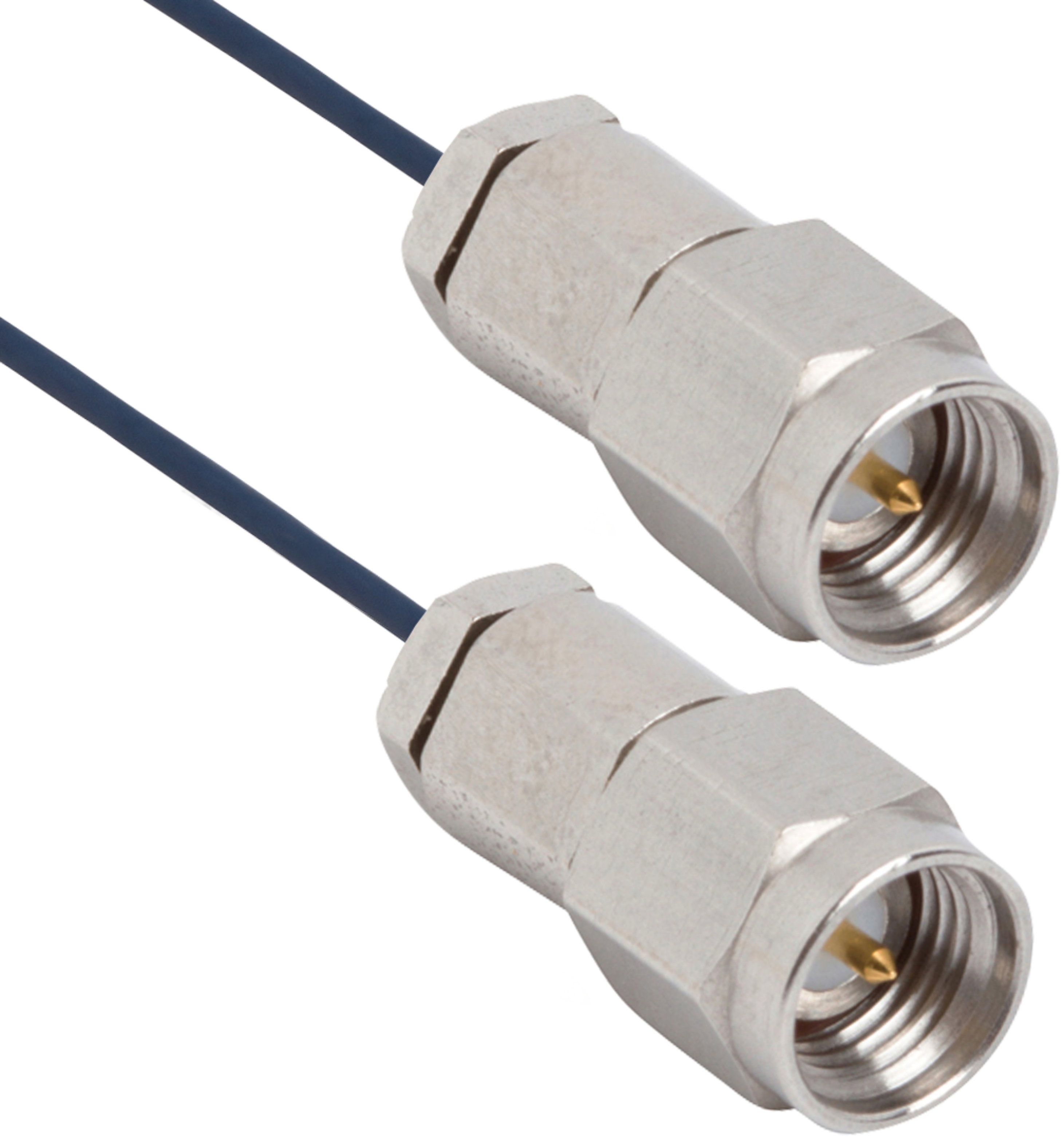

SMA Male to SMA Male 6" Cable Assembly for .047 SuperFlex Cable
