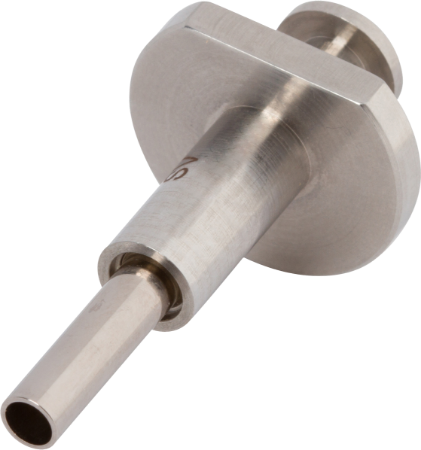

Name: SMPM Female VITA 67.1/2 Contact Removal Tool 500-32-022
SKU: 500-32-022
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
Family	VITA 67
RF Series	VITA SMPM
Electrical
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mechanical
Mating Cycles	500
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	1.5 lbs
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

EU RoHS Directive 2011/65/EU	Compliant These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as 'Compliant' do not contain any of these substances above the prohibition thresholds.
EU REACH Regulation (EC) No. 1907/2006	Does not contain REACH SVHC These products do not contain Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm).
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:28:14 AM

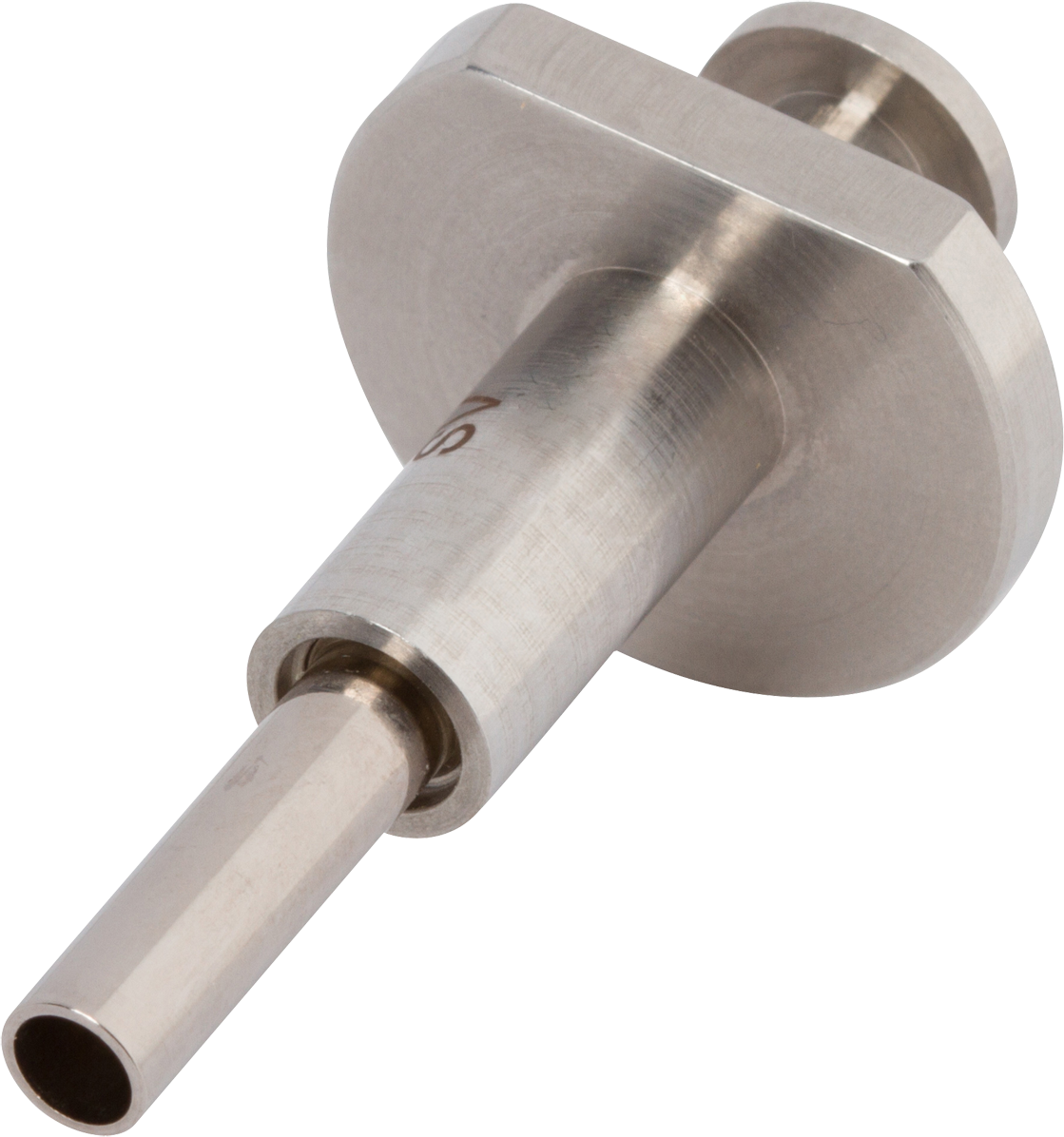

SMPM Female VITA 67.1/2 Contact Removal Tool
P/N: 500-32-022

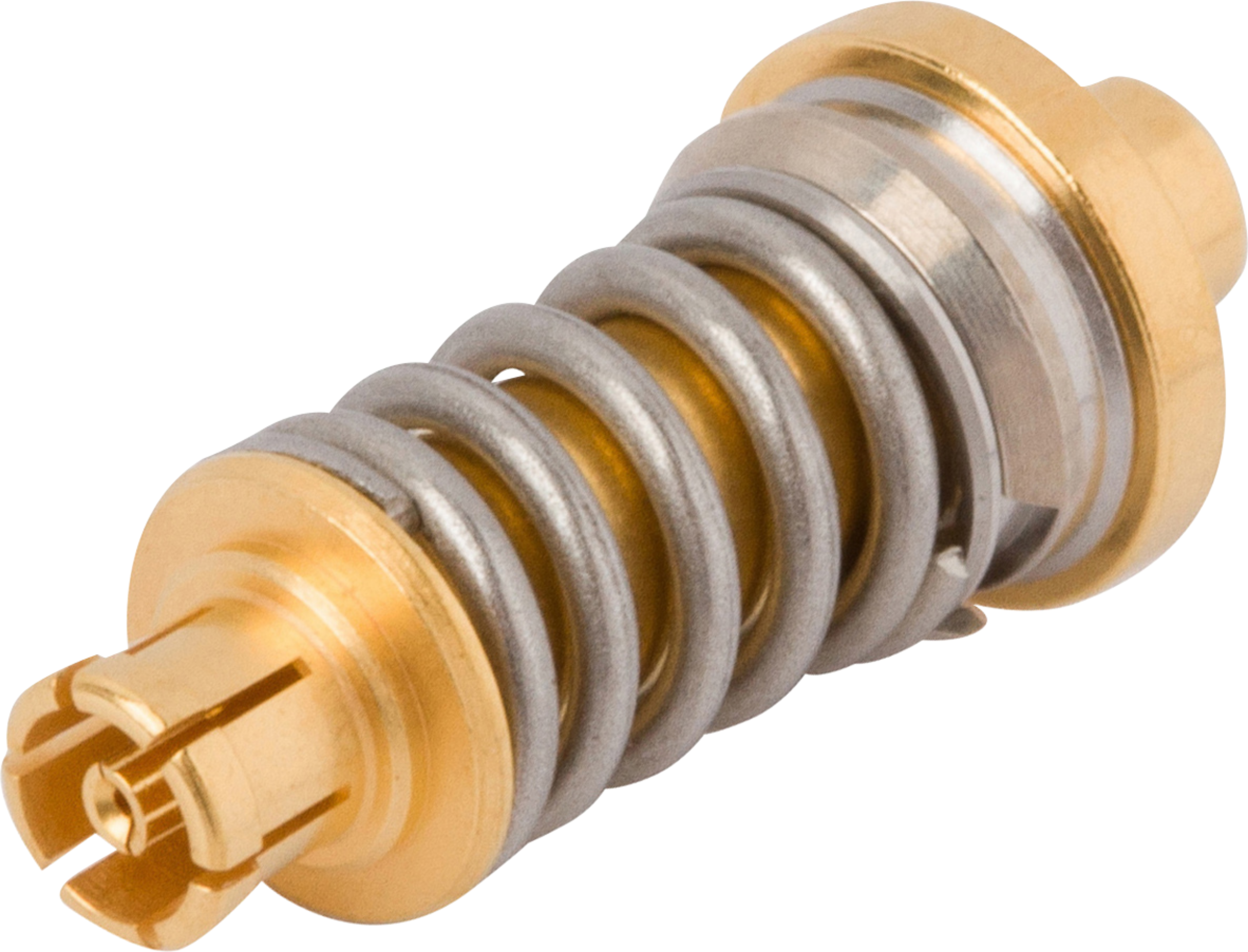

SMPM Female VITA 67.1/2 Plug-in Contact for .047 Cable
