Products specifications
| Attribute name | Attribute value |
|---|---|
| Gender | Plug (Male) |
| RF Series | 2.92 mm |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| RF Series 2 | SMPM |
| Gender 2 | Jack (Female) |
| Cable Type | 0.047 Flexible Coax |
| Orientation 2 (Body) | Straight |
| Cable Length | 6" |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 7 - 10 in - lbs |
| Intermateability | SMA |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
7015-1100
2.92mm Cable Assemblies 7015-1100
Part # 7015-1102

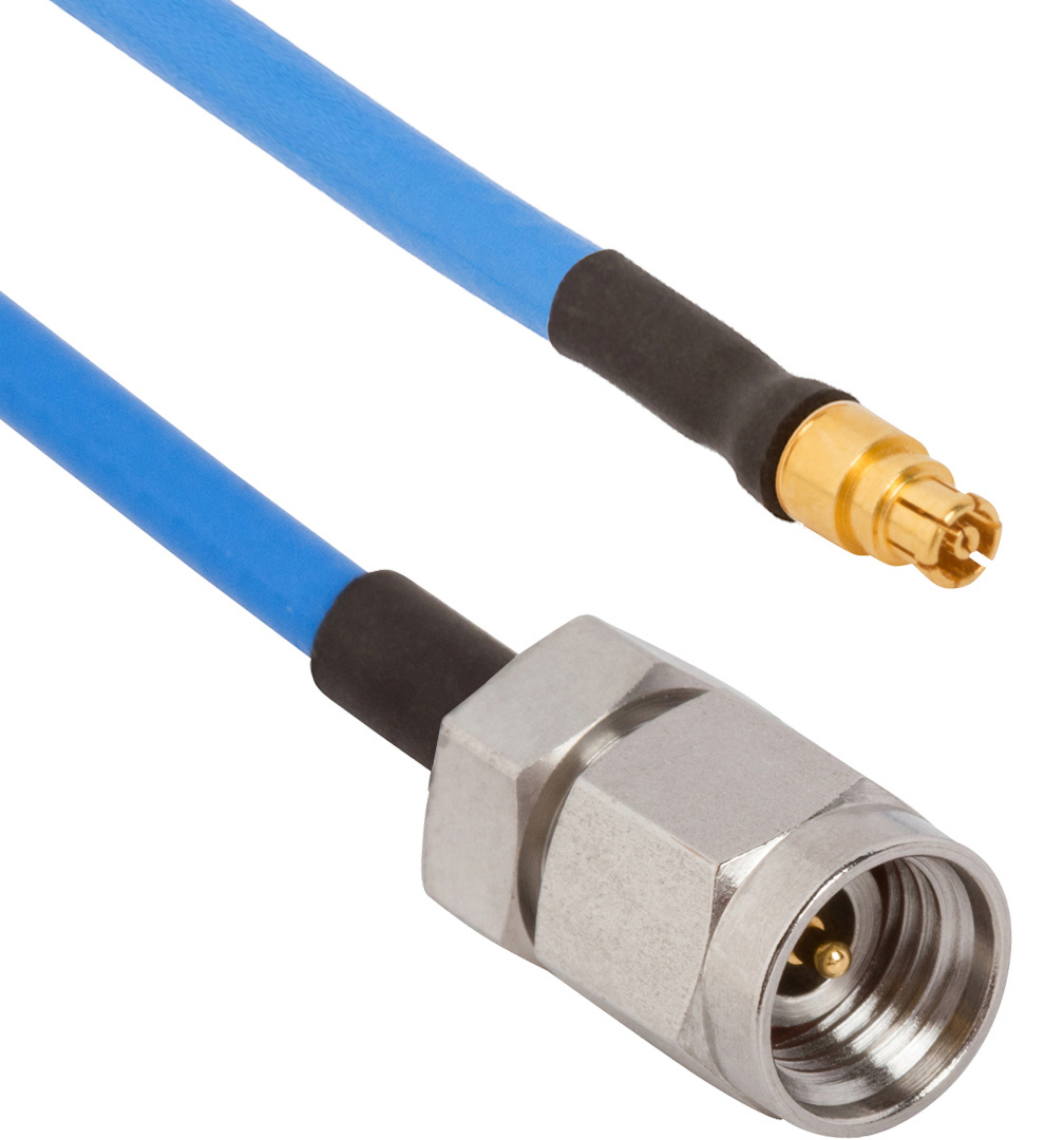

2.92mm Male to SMPM Female 24" Cable Assembly for .085 Cable
