Threaded SMPM Female Connector, R/A for .085 Cable
P/N: 3222-40059

Loading...
Please select the address you want to ship to
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
RF Series SMPM
Coupling Threaded
Gender Jack (Female)
Termination Style Solder
Orientation (Body) Right Angle
Number of Ports Single
Finish Passivated
Cable Type 0.085 Flexible Coax, 0.087-LL Flexible Coax
Family Threaded SMPM
Cable Builder Attributes
Electrical
Impedance 50 ohms
Frequency 26.5 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Withdrawal Force - FD 6.5 lbs
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Insertion Force - FD 4.5 lbs
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series SMPM
Coupling Threaded
Gender Jack (Female)
Termination Style Solder
Orientation (Body) Right Angle
Number of Ports Single
Finish Passivated
Cable Type 0.085 Flexible Coax, 0.087-LL Flexible Coax
Family Threaded SMPM
Cable Builder Attributes
Electrical
Impedance 50 ohms
Frequency 26.5 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Withdrawal Force - FD 6.5 lbs
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Insertion Force - FD 4.5 lbs
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   3221-60016

Threaded SMPM Female Connector for .085 Cable

Available Inventory: 427
3221-60016
SMPM Connectors 3221-60016
Datasheet
Part #   3221-60017

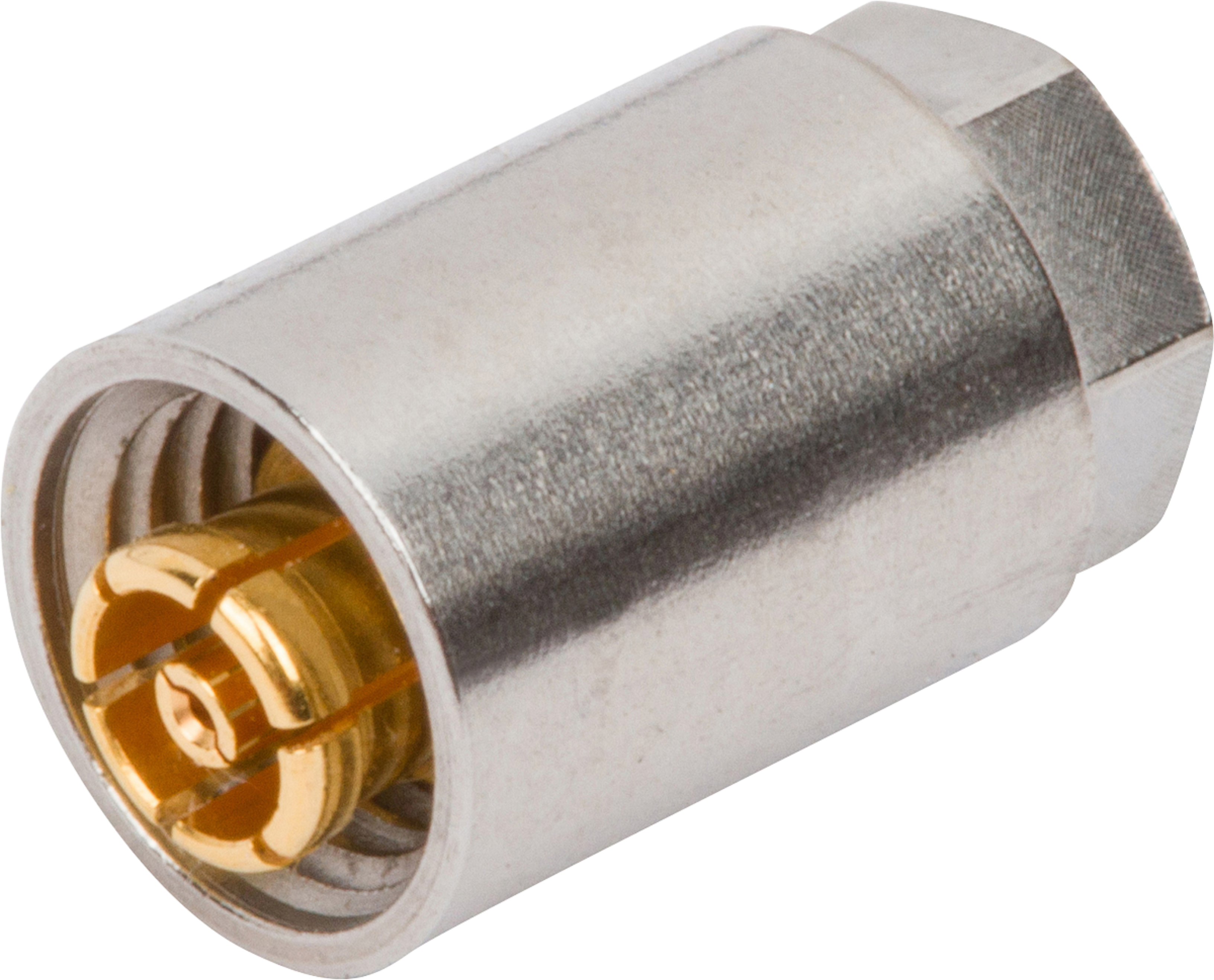

Threaded SMPM Female Connector for .047 Cable

Available Inventory: 151
3221-60017
SMPM Connectors 3221-60017
Datasheet
Part #   3222-40060

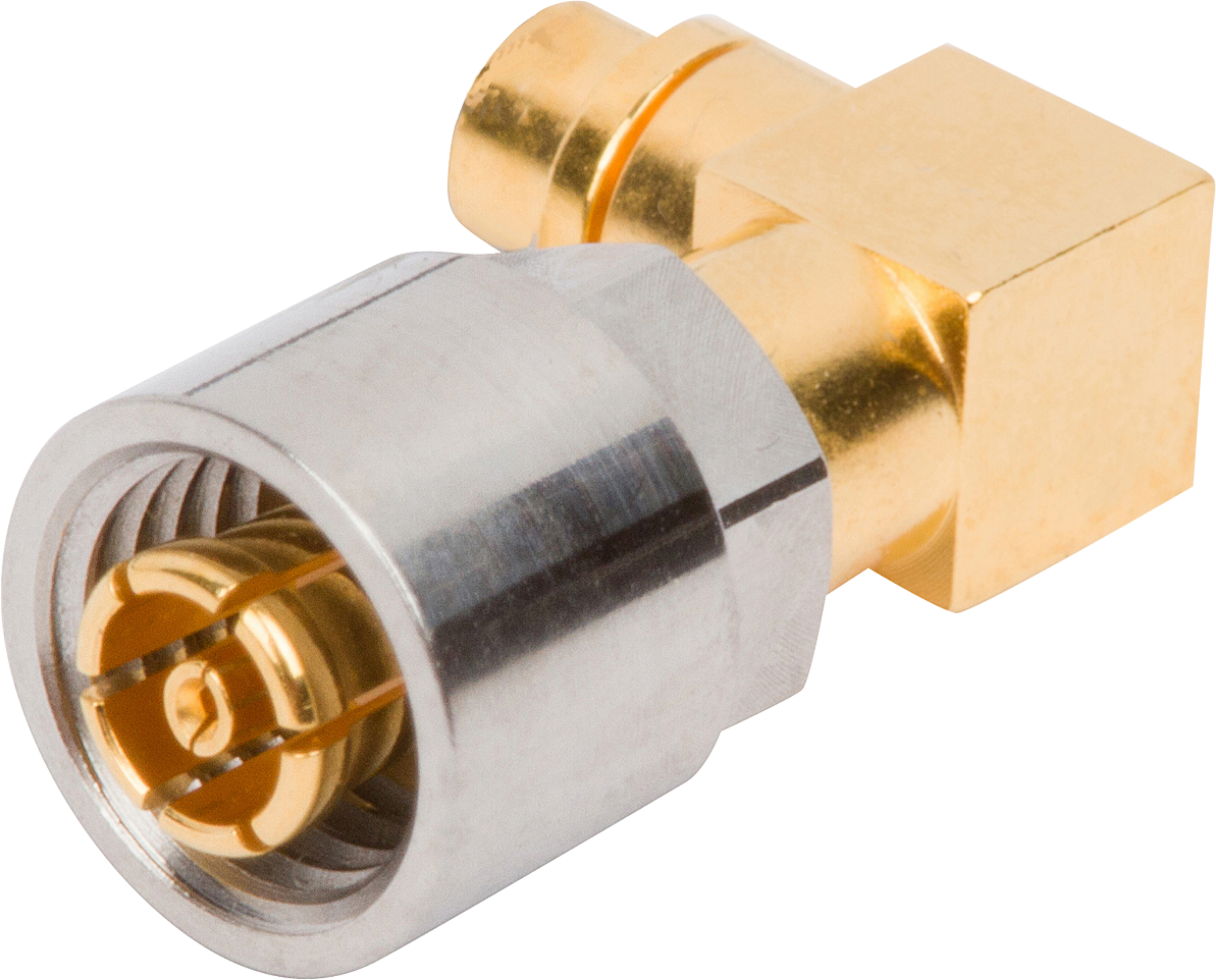

Threaded SMPM Female Connector, R/A for .047 Cable
