Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | Type N |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Mounting Type | Panel |
| Coupling | Threaded |
| Termination Style | Solder |
| Number of Ports | Single |
| Body Style | Jamnut/Bulkhead |
| Cable Type | 0.085 Flexible Coax |
| Electrical | |
| Frequency | 11 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 3000 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 12 - 15 in - lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Shock | MIL-STD-202, Method 213, Condition I |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | Type N |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Mounting Type | Panel |
| Coupling | Threaded |
| Termination Style | Solder |
| Number of Ports | Single |
| Body Style | Jamnut/Bulkhead |
| Cable Type | 0.085 Flexible Coax |
| Electrical | |
| Frequency | 11 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 3000 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 12 - 15 in - lbs |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Shock | MIL-STD-202, Method 213, Condition I |
Customers Also Viewed

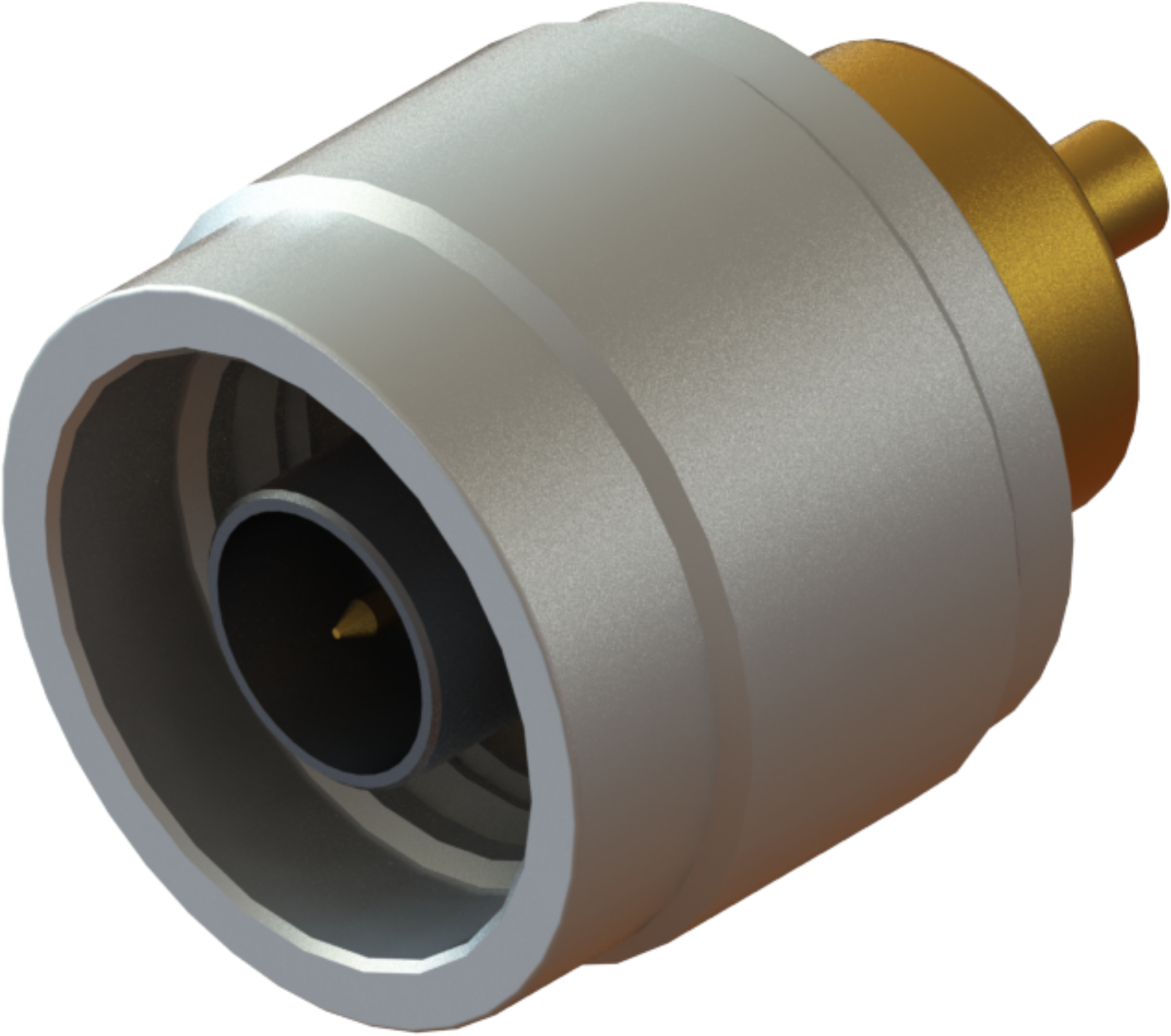

5011-00034
Type N Connectors 5011-00034
5011-00035
Type N Connectors 5011-00035

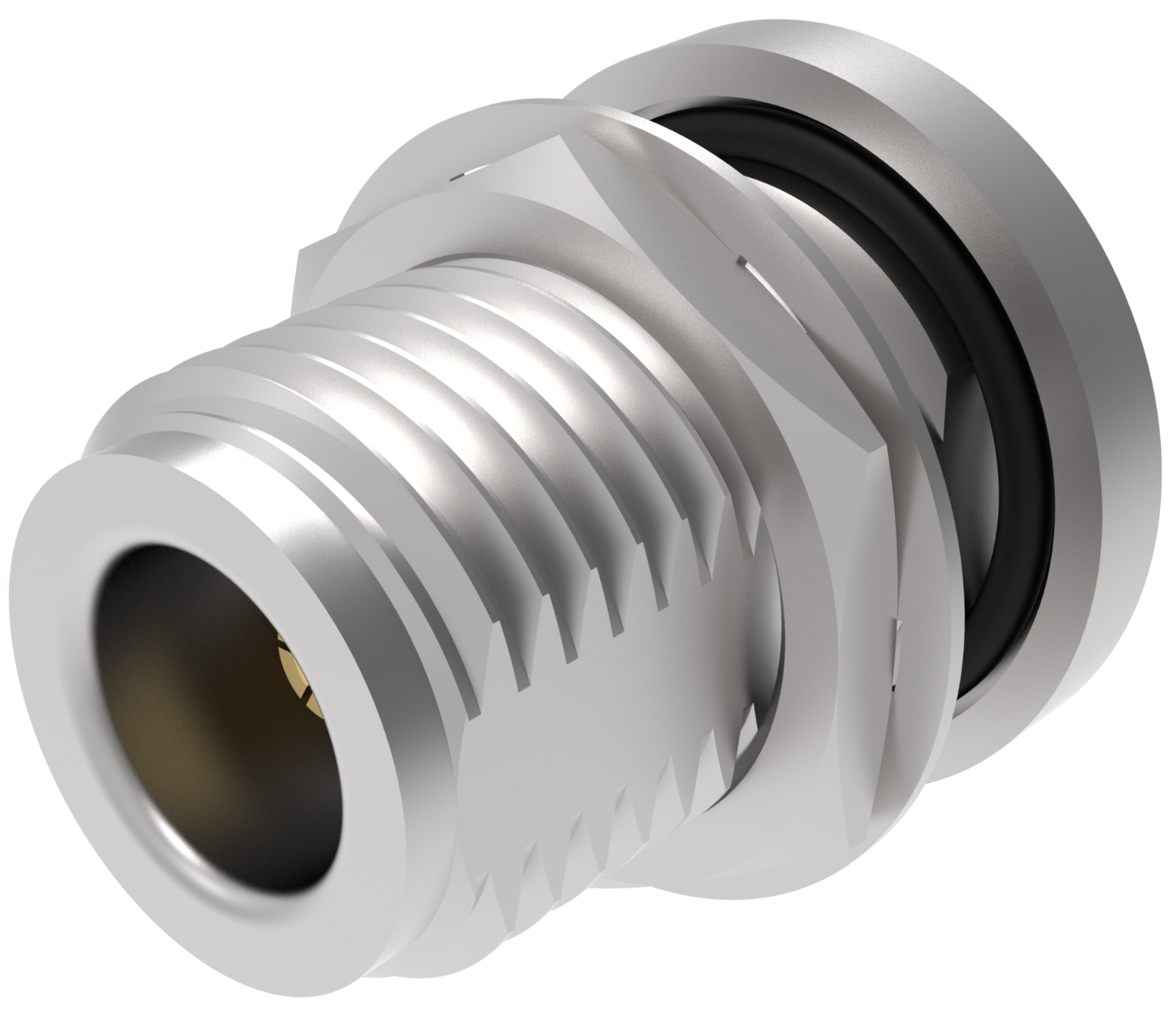

5021-00027
