Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | Type N |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| Body Style | 4 Hole |
| Mounting Type | Panel |
| Style | Candlestick |
| Number of Ports | Single |
| Finish | Nickel |
| Electrical | |
| Frequency | 11 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 3000 VRMS |
| Mechanical | |
| Mating Torque | 12 - 15 in - lbs |
| Mating Cycles | 500 |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | Type N |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| Body Style | 4 Hole |
| Mounting Type | Panel |
| Style | Candlestick |
| Number of Ports | Single |
| Finish | Nickel |
| Electrical | |
| Frequency | 11 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 3000 VRMS |
| Mechanical | |
| Mating Torque | 12 - 15 in - lbs |
| Mating Cycles | 500 |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Customers Also Viewed
5050-0042

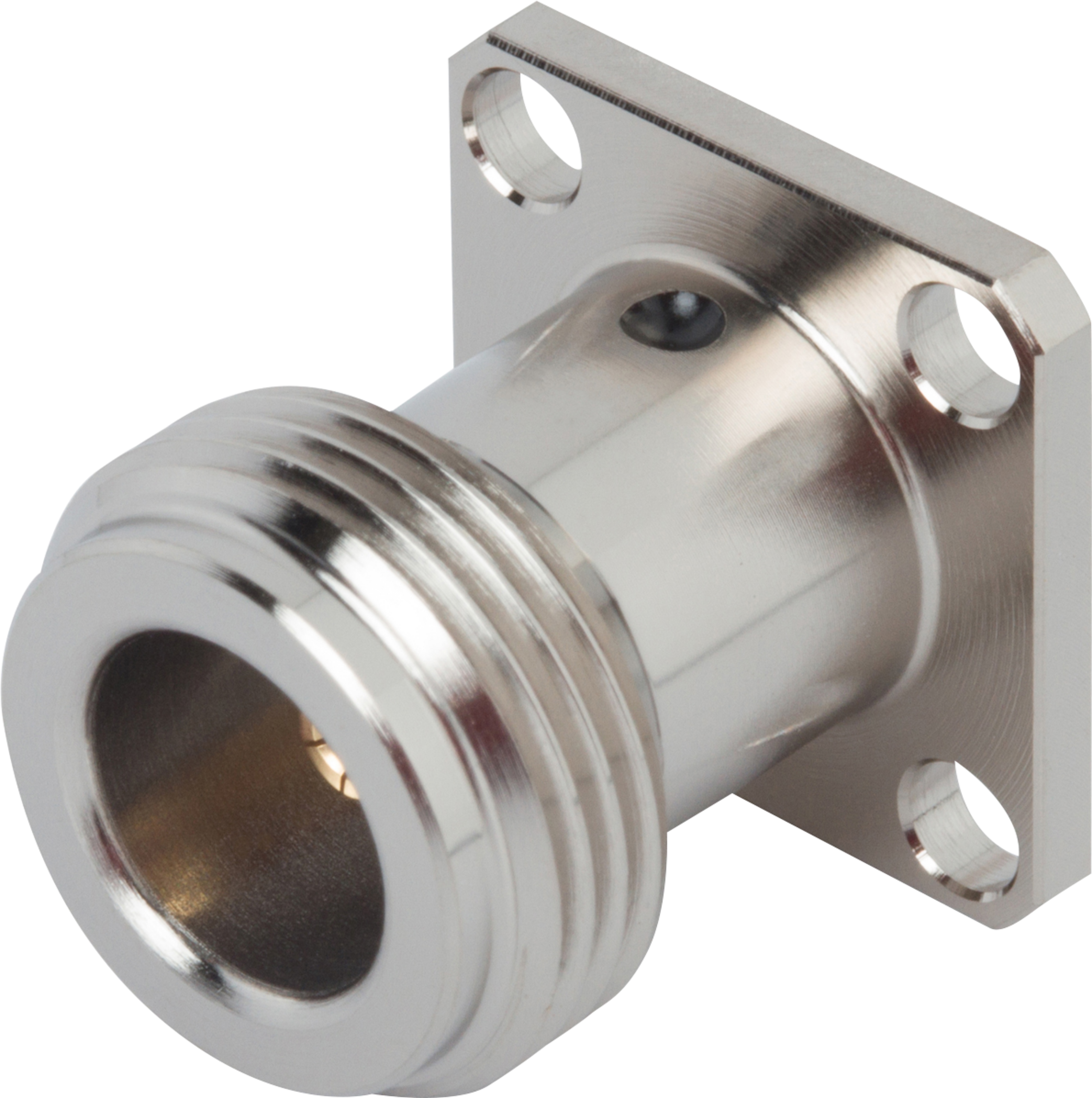

Type N Connectors 5050-0042
SF1102-6024

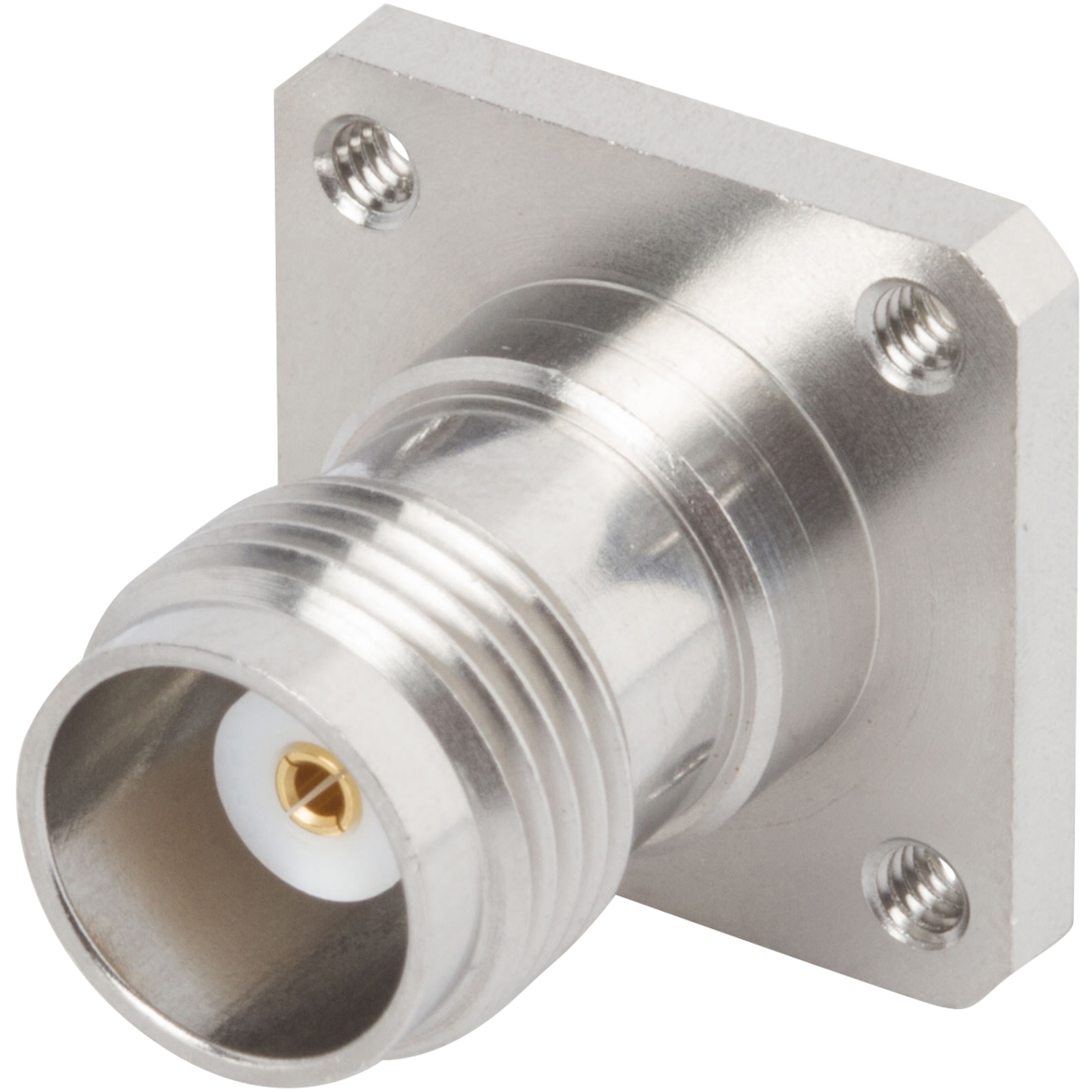

SMA Adapters SF1102-6024
SF1102-6002

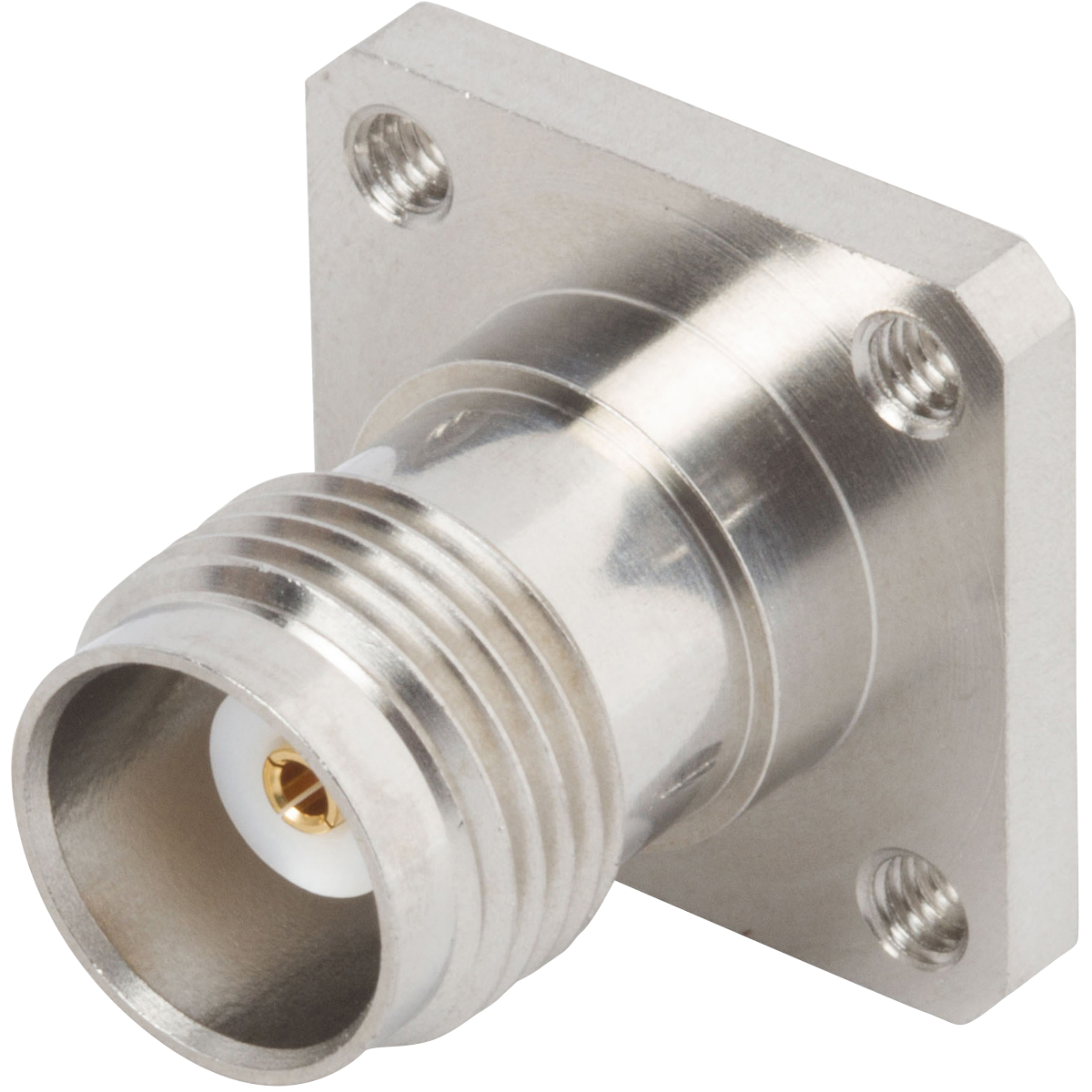

SMA Adapters SF1102-6002
