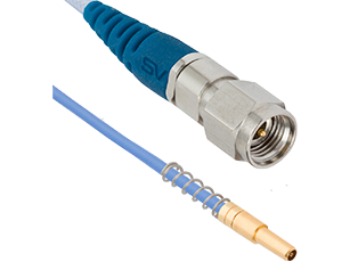

VITA RF Test Cable Assemblies
As VPX embedded computing continues to gain traction among Mil-Aero markets, it has become increasingly necessary to prototype full system designs that require the use of ruggedized and specialized cable assemblies. To that end, SV Microwave has released a unique product line of VITA 67.3 cable assemblies with features designed to minimize strain and insertion loss. Available in longer-length 24 inches, these cable assemblies are capable of routing signals from the chassis slot to an analyzer and support series VITA NanoRF, SMPM and SMPS. Ideal for prototyping, product development and testing; discover the complete line below.
Features / Benefits:
- Supports SOSA and CMOSS architecture
- Routes signals from slot to analyzer
- Shortens time-to-market
- DC – 40 GHz
Applications:
- Mil-Aero
- Embedded System Design
- Field Testing
- Prototyping
The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.
VITA SMPM
| Impedance (Ω) | 50 |
| Frequency GHz | 40 GHz |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 1.5 lbs |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
VITA SMPS
| Impedance (Ω) | 50 |
| Frequency GHz | 65 GHz |
| Shielding Effectiveness | ≥ -100 dB, DC to 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mating Cycles | 500 |
| Insertion Force | 1.2 lbs (per contact) |
| Withdrawal Force | 1.0 lbs |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
VITA NANORF
| Impedance (Ω) | 50 |
| Frequency GHz | 67 GHz |
| Shielding Effectiveness |
≥ -140 dB, 3 MHz to 30 MHz ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mating Cycles | 500 |
| Insertion Force | 2.5 lbs (per contact) |
| Withdrawal Force | 0.315 lbs |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Part # 7083-0027-0240
NanoRF Female VITA 67.3 Backplane Contact to 2.92mm Male 24" ConvergeRF Cable Assembly for .047 to .087-LL Cable
Available Inventory: 26
Part # 7032-10173-0240
SMPM Female VITA 67.3 Backplane Contact to 2.92mm Male 24" Low Loss Strain Relief Cable Assembly for .087-LL Cable
Available Inventory: 14
