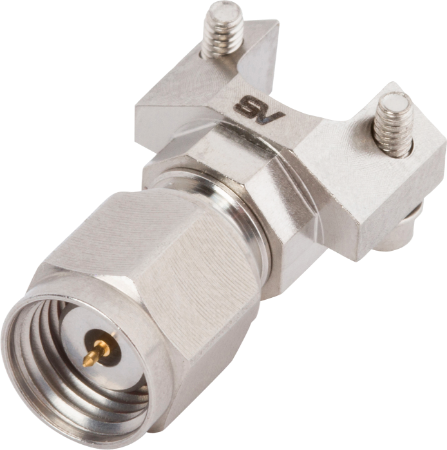

Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | Solderless |
| Gender | Plug (Male) |
| Mounting Type | PCB Edge Launch |
| Orientation (Body) | Straight |
| Termination Style | Solder-free |
| RF Series | 1.85 mm |
| Coupling | Threaded |
| Body Style | 2 Hole |
| Finish | Passivated |
| Electrical | |
| Frequency | 65 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Torque | 5 - 7 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | 2.4mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | Solderless |
| Gender | Plug (Male) |
| Mounting Type | PCB Edge Launch |
| Orientation (Body) | Straight |
| Termination Style | Solder-free |
| RF Series | 1.85 mm |
| Coupling | Threaded |
| Body Style | 2 Hole |
| Finish | Passivated |
| Electrical | |
| Frequency | 65 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Torque | 5 - 7 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | 2.4mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed

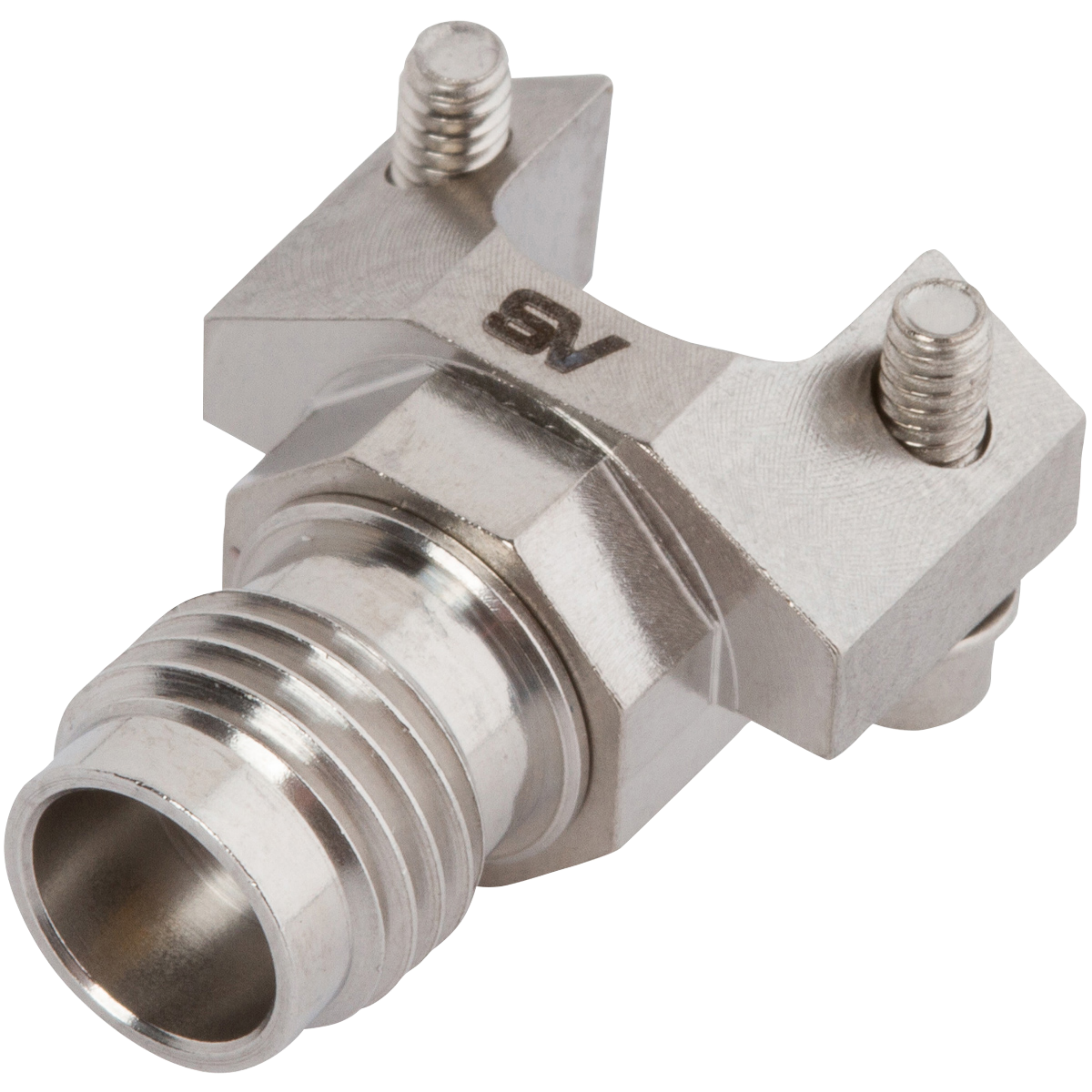

Part # SF3321-60021
1.85mm Female Solderless PCB Edge Launch Connector, 2 Hole
Available Inventory: 121
SF3321-60021
1.85mm Connectors SF3321-60021

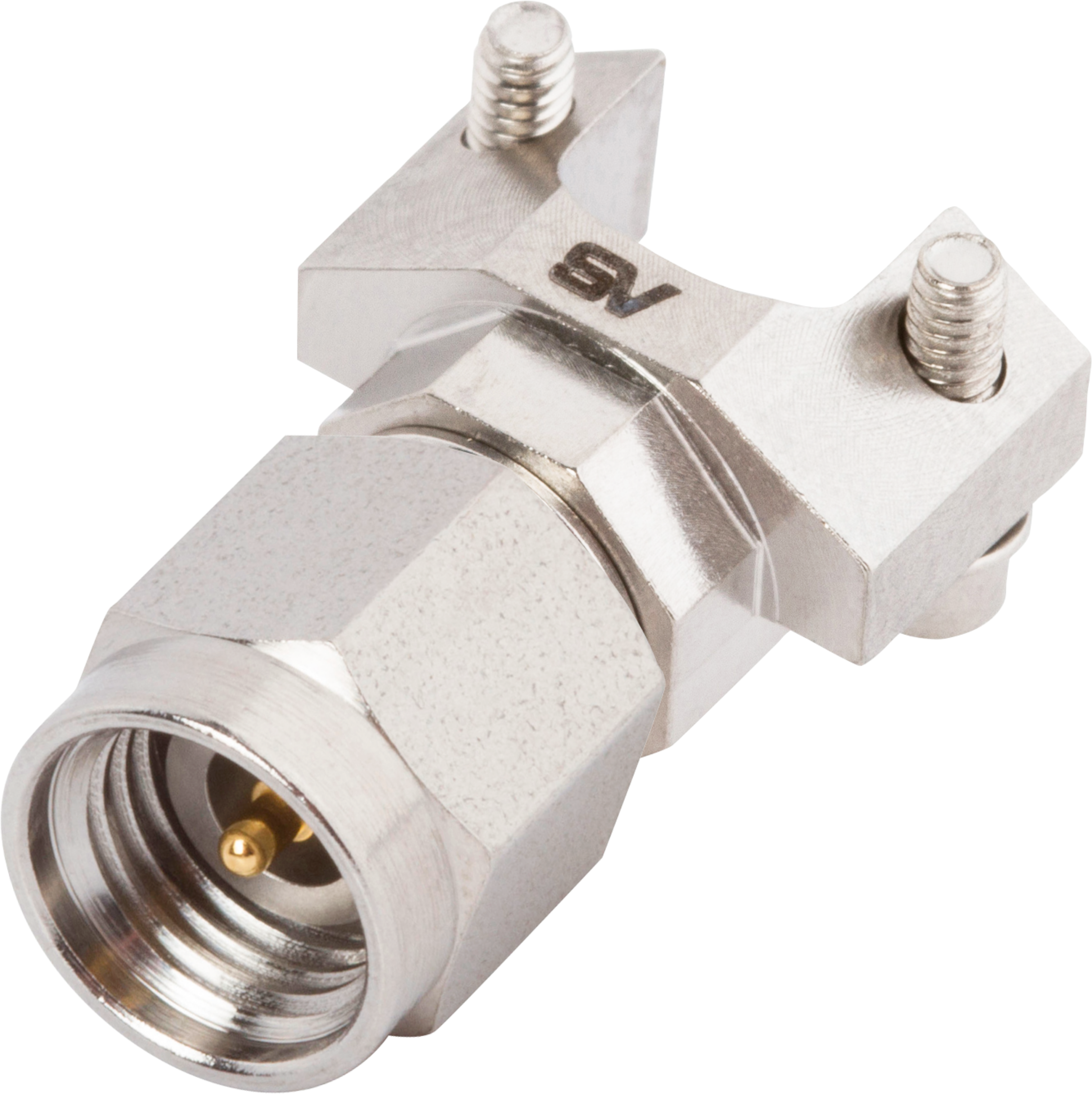

Part # SF1511-60111
2.92mm Male Solderless PCB Edge Launch Connector, 2 Hole
Available Inventory: 22
SF1511-60111
2.92mm Connectors SF1511-60111

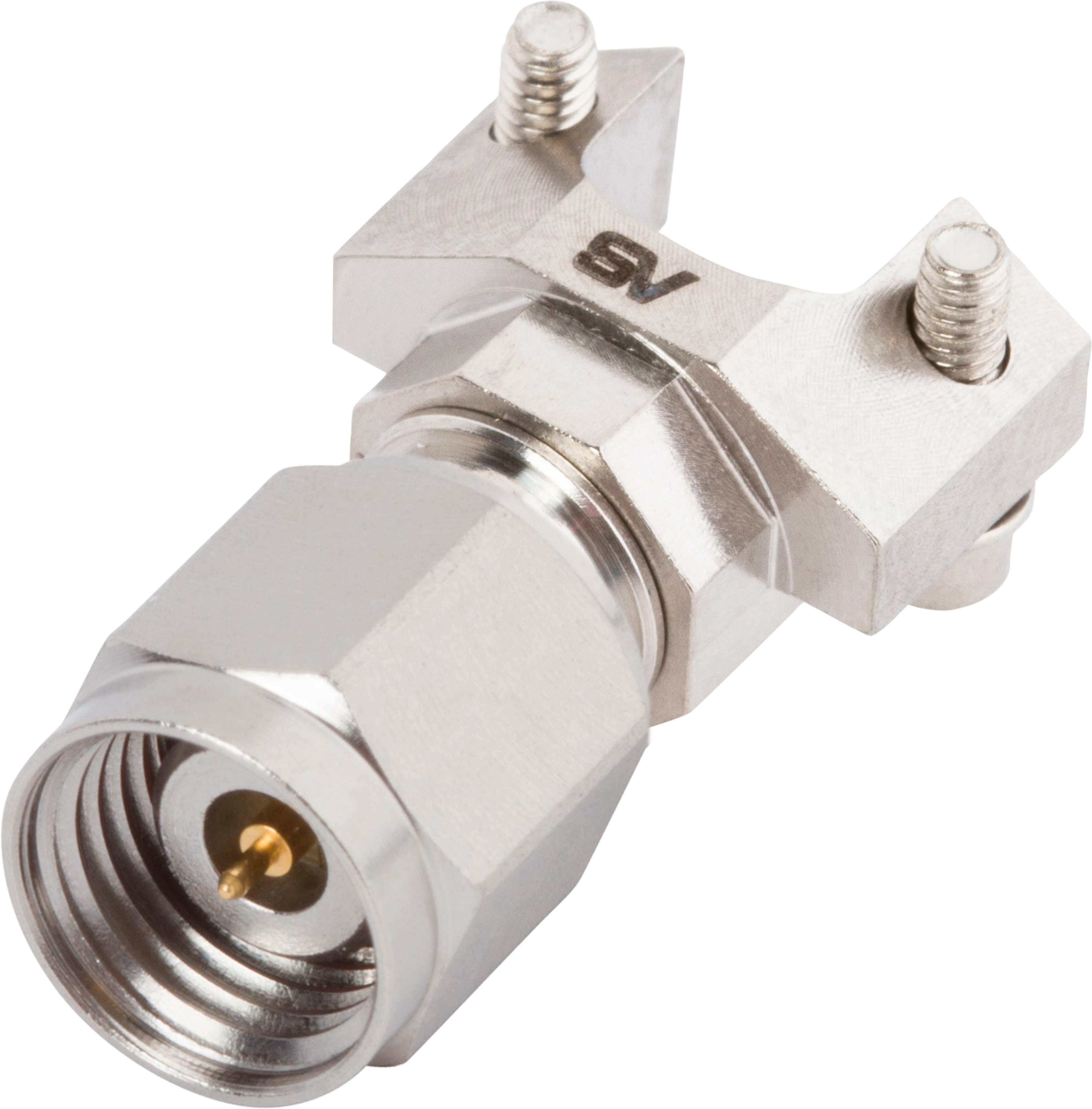

SF1611-60018
