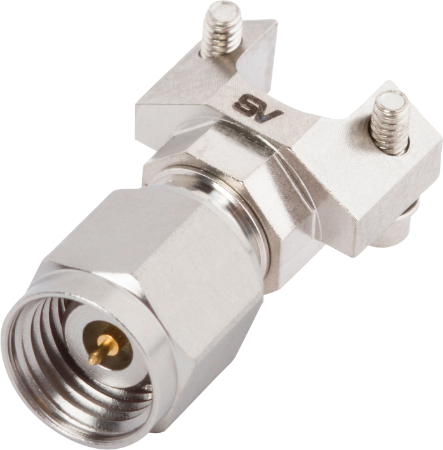

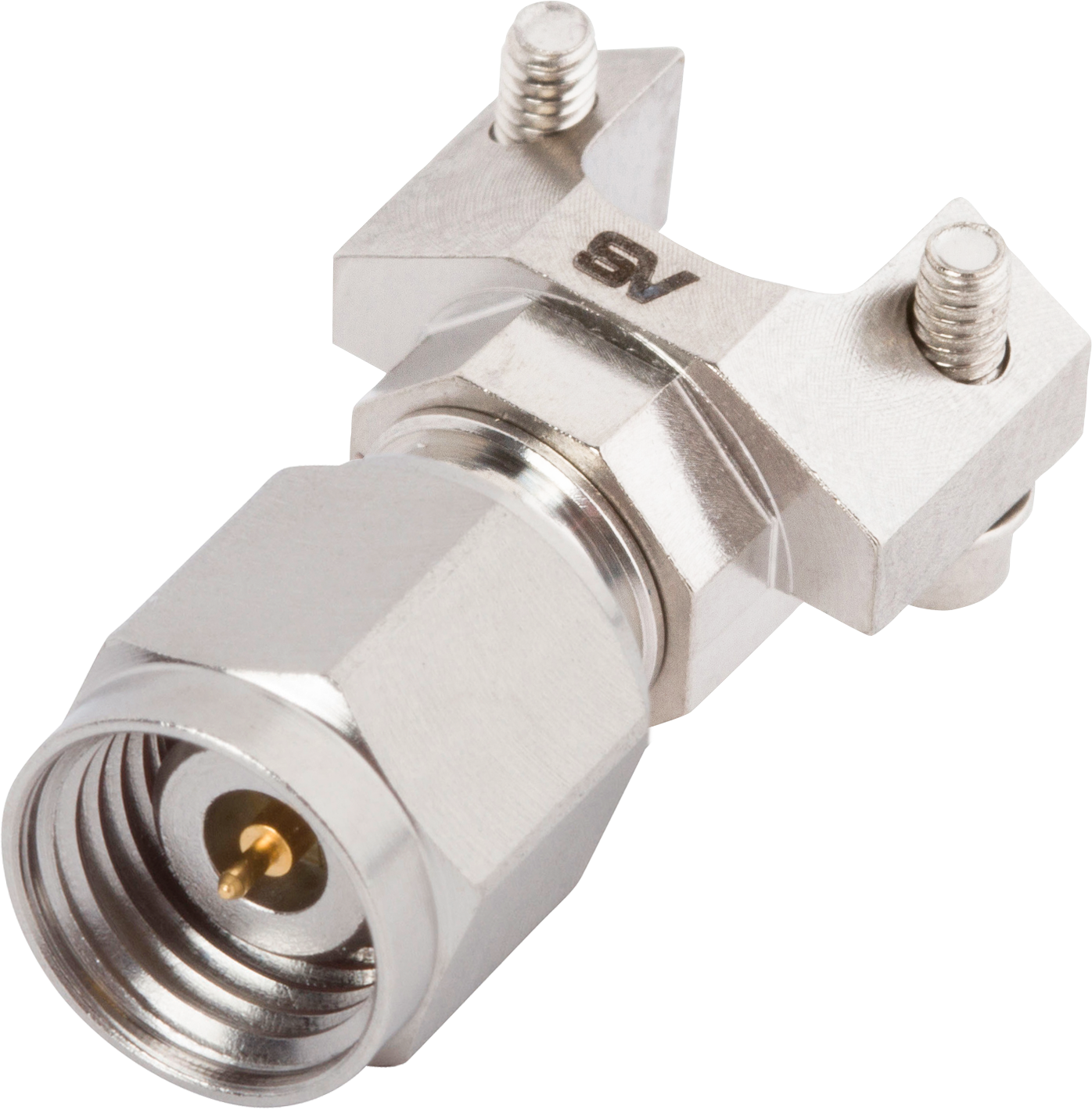

2.4mm Male Solderless PCB Edge Launch Connector, 2 Hole
P/N: SF1611-60018

Loading...
Products specifications
Attribute name Attribute value
Family Solderless
Gender Plug (Male)
RF Series 2.4 mm
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 50 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Intermateability 1.85mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
Family Solderless
Gender Plug (Male)
RF Series 2.4 mm
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 50 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Intermateability 1.85mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   SF1621-60036

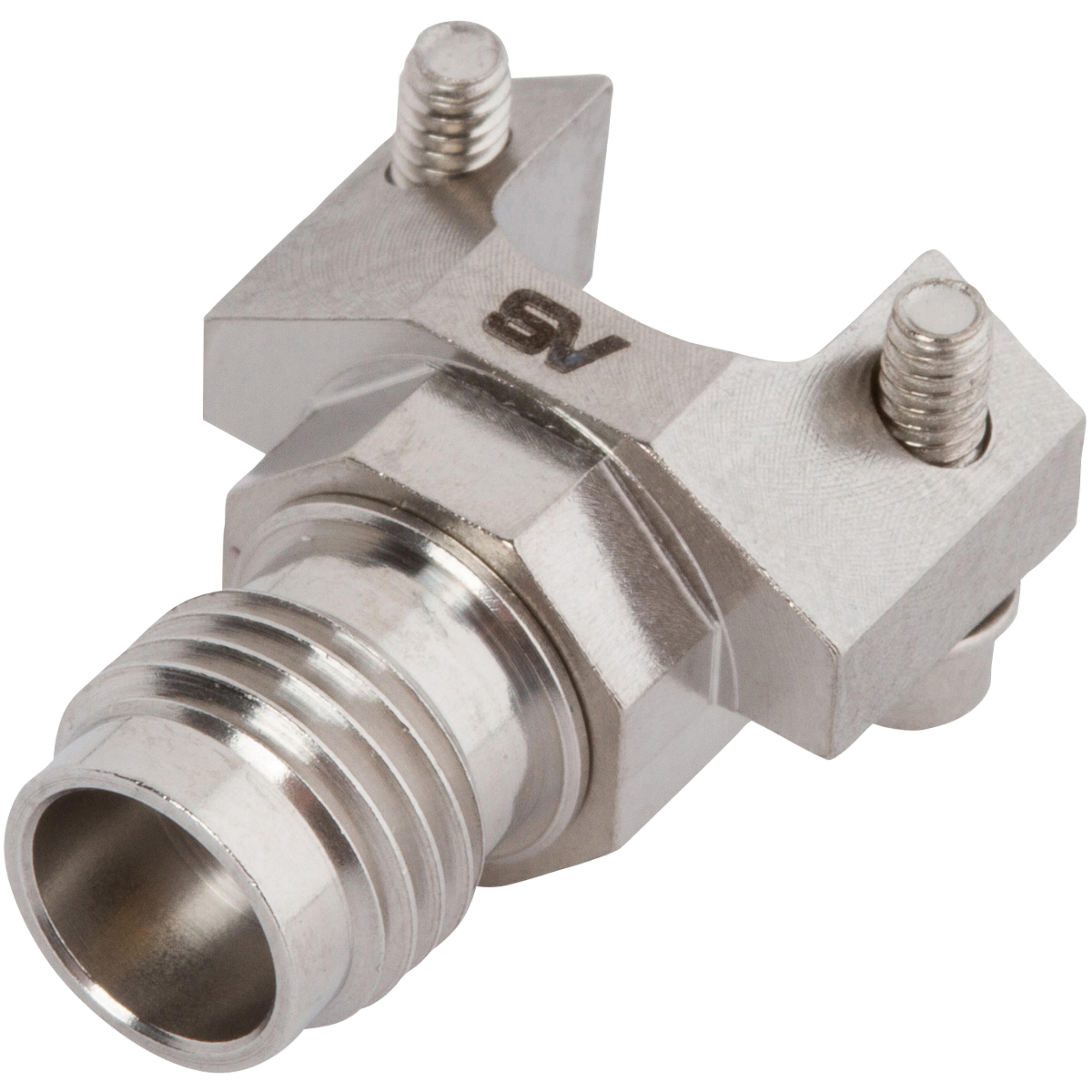

2.4mm Female Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 91
SF1621-60036
2.4mm Connectors SF1621-60036
Datasheet
Part #   SF1511-60111

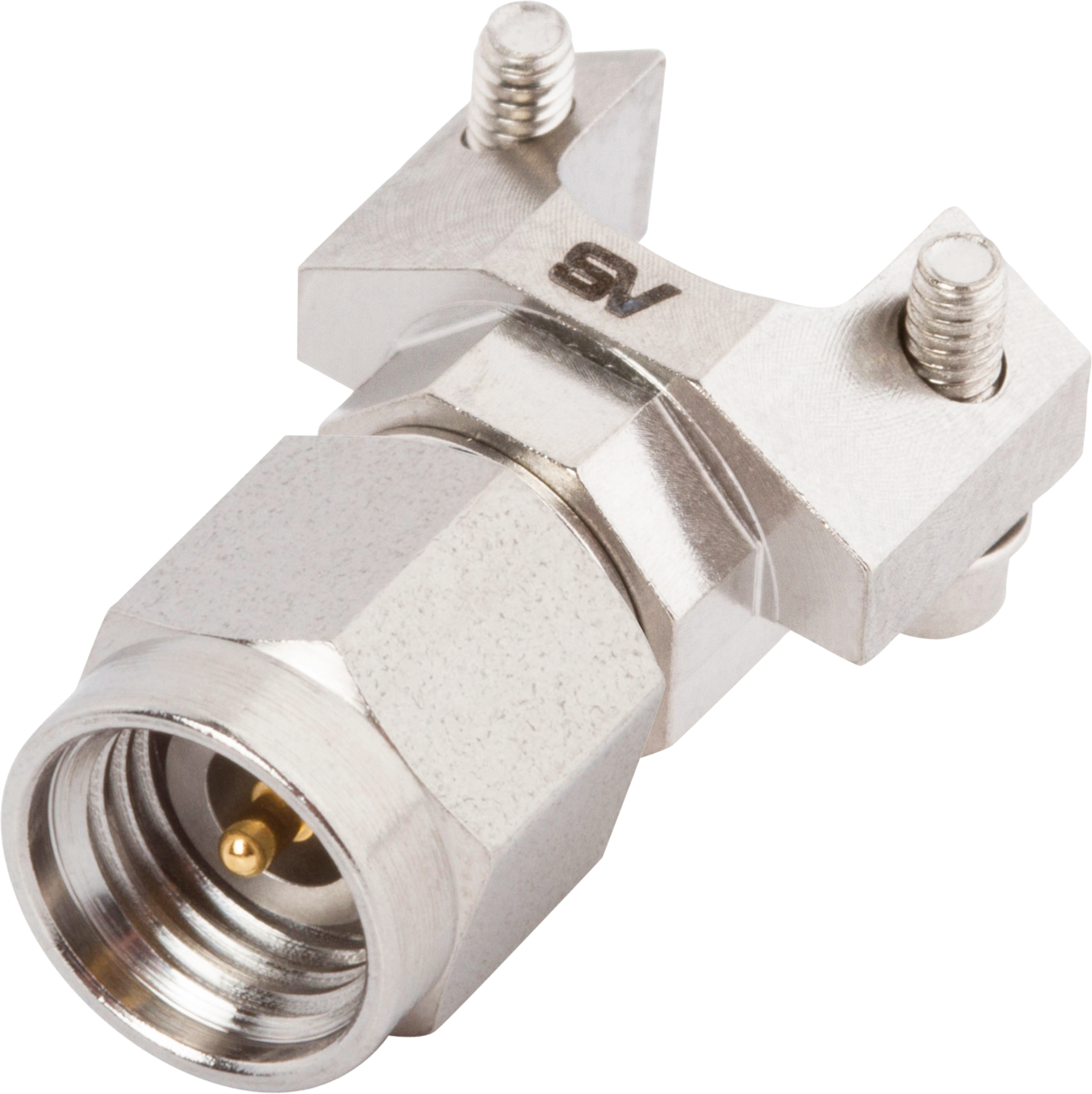

2.92mm Male Solderless PCB Edge Launch Connector, 2 Hole
