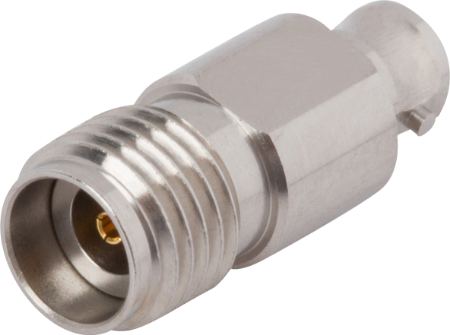

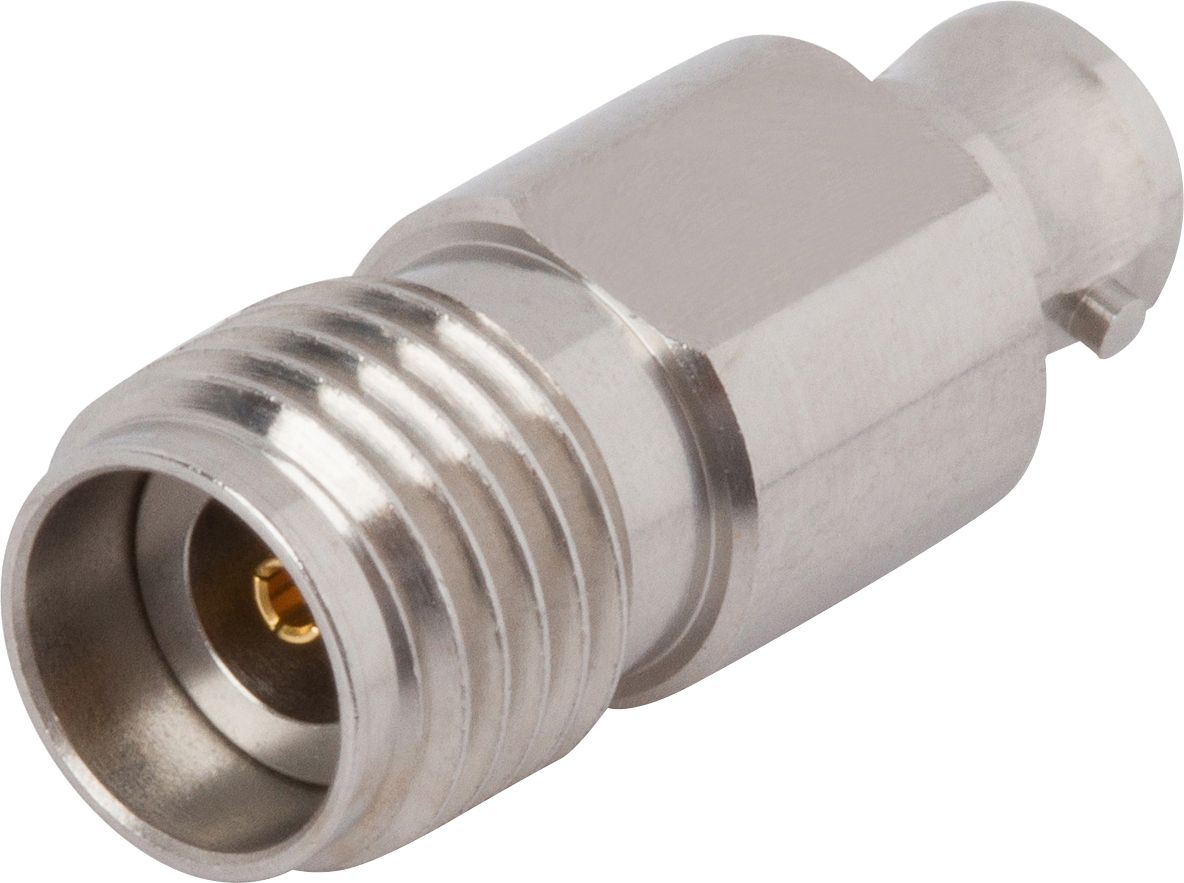

Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | QuarterBack |
| RF Series | 2.92 mm |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Keyed Subtype | 180-180 |
| Detent | Smooth Bore |
| Finish | Passivated |
| Orientation 2 (Body) | Straight |
| Gender 2 | Plug (Male) |
| Coupling | Keyed |
| RF Series 2 | SMP |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | SMA |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | QuarterBack |
| RF Series | 2.92 mm |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Keyed Subtype | 180-180 |
| Detent | Smooth Bore |
| Finish | Passivated |
| Orientation 2 (Body) | Straight |
| Gender 2 | Plug (Male) |
| Coupling | Keyed |
| RF Series 2 | SMP |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Inter-mate ability | SMA |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Customers Also Viewed
SF1132-6078

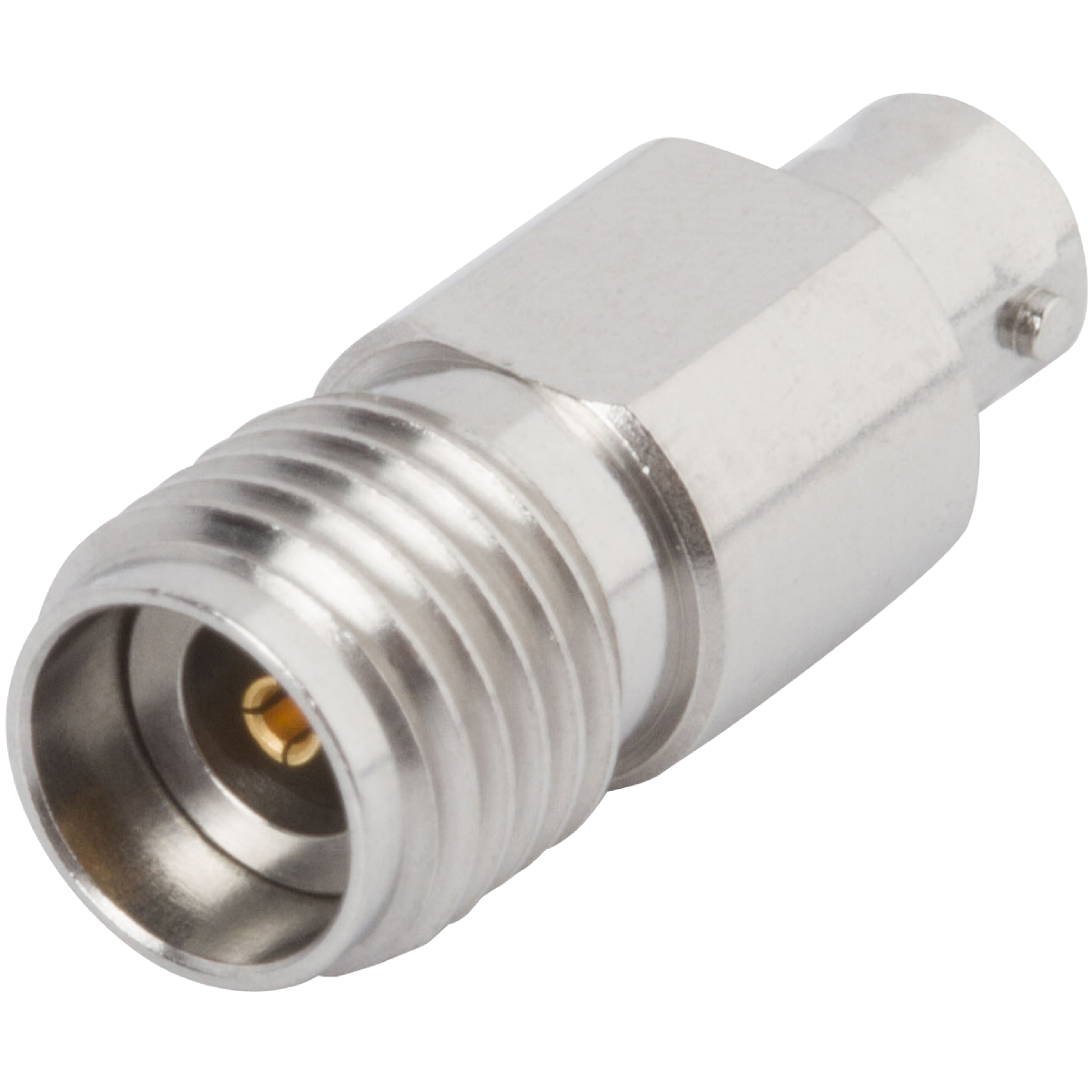

2.92mm Adapters SF1132-6078
1112-6114

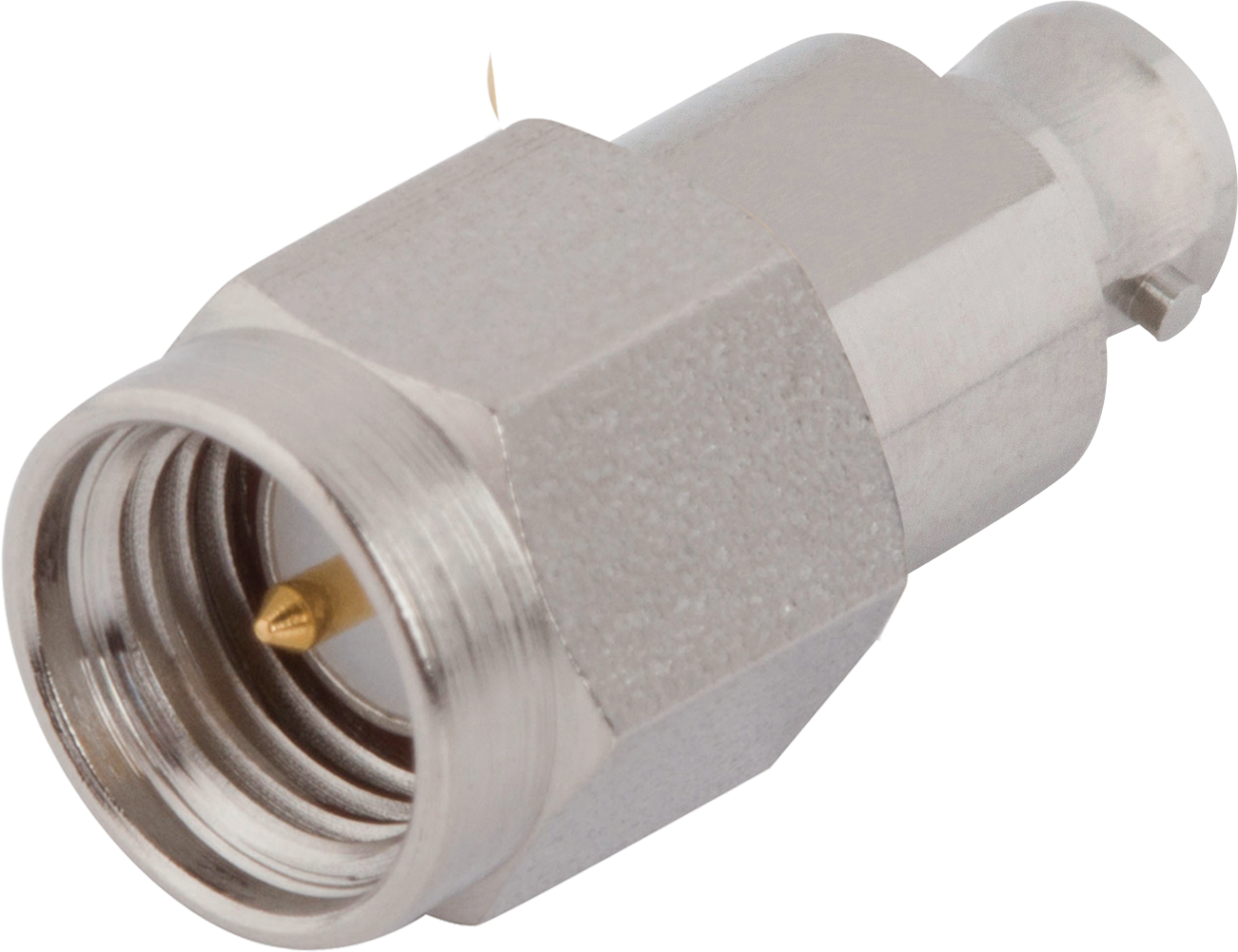

SMP Adapters 1112-6114
Part # 7012-1300

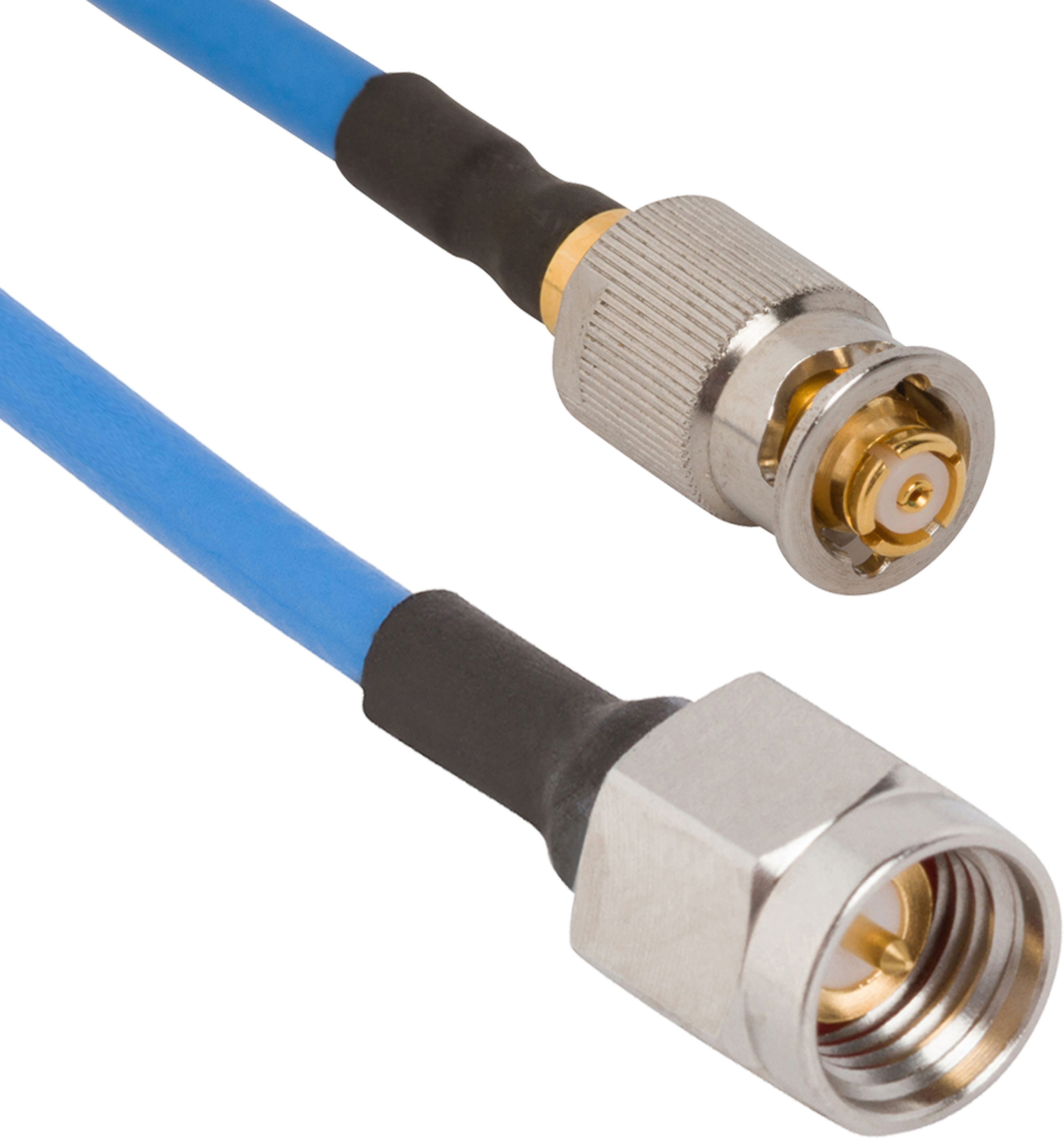

SMP Female QB to SMA Male 24" Cable Assembly for .085 Cable
