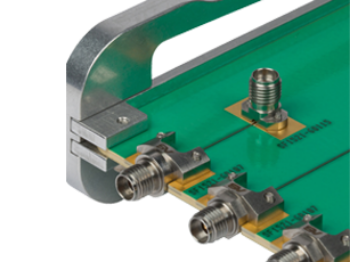

High Speed Solderless PCB Connectors

SV Microwave’s high speed RF/coaxial solderless compression mount connectors are ideal for high frequency printed circuit board applications where precision is key. Our solderless application makes assembly fast, easy and without damaging the PCB board. Current interface configurations include our high frequency SMA, 2.92mm, 2.4mm, 1.85mm, SMP and SMPM series.

Features / Benefits:

Solderless compression mount for fast and easy installation (includes screws)
SMA, 2.92mm, 2.4mm, and 1.85mm series available
Cost effective solutions for testing
Reusable, durable and rugged design
Customized PCB footprint design through simulation optimization
Minimal reflections through impedance matched PCB Launch

Applications:

RF test and measurement boards
Rapid prototyping
High speed digital component test
5G wireless test applications

2.4 mm

Impedance (Ω)	50
Frequency GHz	50 GHz
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	500 VRMS
Mating Cycles	500
Mating Torque	5 - 7 in - lbs
Inter-mate ability	1.85mm
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

2.92 mm

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -100 dB
Dielectric withstanding Voltage	750 VRMS
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Inter-mate ability	SMA
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMA

Impedance (Ω)	50
Frequency GHz	18 GHz (select models to 26.5 GHz)
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Inter-mate ability	2.92mm
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMP

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mating Cycles - SB	1000
Mating Cycles - LD	500
Mating Cycles - FD	100
Insertion Force - SB	3.0 lbs
Insertion Force - LD	5.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - LD	7.0 lbs
Withdrawal Force - FD	9.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Withdrawal Force - FD	6.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Grid List

Filters

Part # SF1621-60026

2.4mm Female Solderless PCB Compression Mount Connector, 2 Hole (CPW / Microstrip)

Available Inventory: 517

SF1621-60026

2.4mm Connectors SF1621-60026

High Speed Solderless PCB Connectors

Part # SF1621-60026

Available Inventory: 517

Part # SF1621-60029

Available Inventory: 3610

Part # SF1621-60026-1S

Available Inventory: 764

Part # SF1621-60029-1S

Available Inventory: 983

Part # SF1521-60070

Available Inventory: 0

Part # SF1521-60013

Available Inventory: 298

Part # SF1521-60061

Available Inventory: 2015

Part # SF1521-60070-1S

Available Inventory: 639

Part # SF1521-60061-1S

Available Inventory: 795

Part # SF1521-60070-2S

Available Inventory: 174

Part # SF2921-61345

Available Inventory: 880

Part # SF2921-61356

Available Inventory: 1674

Part # SF2921-61345-1S

Available Inventory: 2011

Part # SF2921-61356-1S

Available Inventory: 1629

Part # SF1211-66214

Available Inventory: 126

Part # SF1211-66214-1S

Available Inventory: 136

Part # SF1211-66344

Available Inventory: 73

Part # SF1211-60193-1S

Available Inventory: 168

Part # SF3211-60218

Available Inventory: 353

Part # SF3211-60193

Available Inventory: 215

Part # SF3211-60218-1S

Available Inventory: 277

Part # SF3211-60193-1S

Available Inventory: 2
