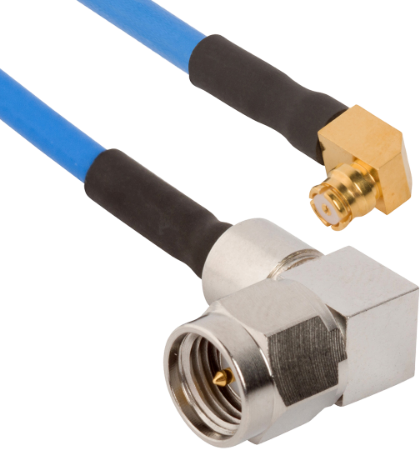

SMP Female R/A to SMA Male R/A 12" Cable Assembly for .085 Cable"
P/N: 7012-1328

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7012-1327

SMP Female R/A to SMA Male R/A 6" Cable Assembly for .085 Cable"

Available Inventory: 759
7012-1327
SMP Cable Assemblies 7012-1327
Datasheet
Part #   7012-1330

SMP Female R/A to SMA Male R/A 6" Cable Assembly for .047 Cable"

Available Inventory: 106
7012-1330
SMP Cable Assemblies 7012-1330
Datasheet
Part #   7012-1331

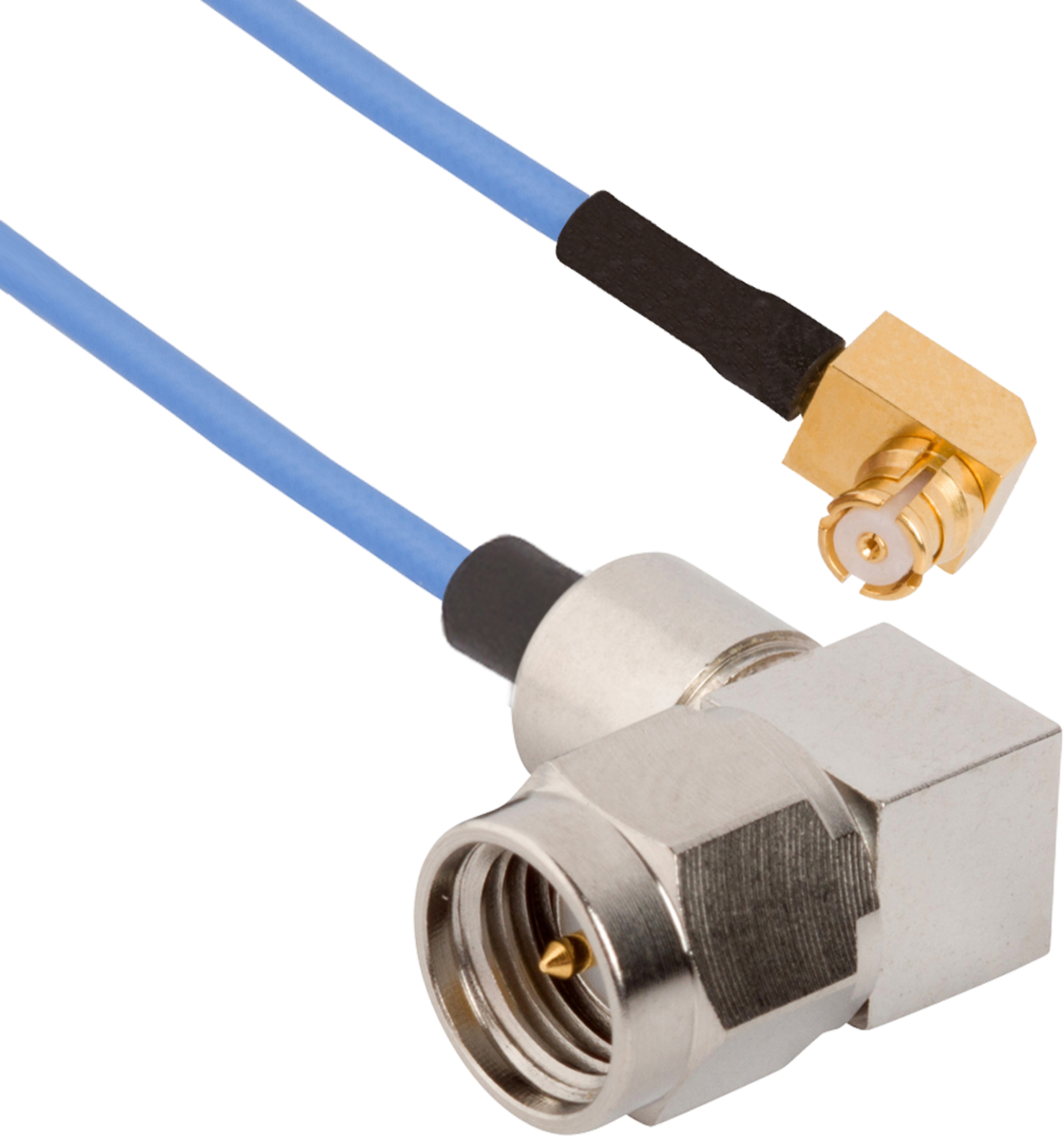

SMP Female R/A to SMA Male R/A 12" Cable Assembly for .047 Cable
