Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMP |
| Gender | Jack (Female) |
| Orientation (Body) | Right Angle |
| Coupling | Push-on |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Right Angle |
| Cable Type | 0.085 Flexible Coax |
| Cable Length | 6" |
| Electrical | |
| Frequency | 11 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 500 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - LD | 500 |
| Mating Cycles - SB | 1000 |
| Mating Cycles - FD | 100 |
| Insertion Force - LD | 5.0 lbs |
| Insertion Force - SB | 3.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Withdrawal Force - FD | 9.0 lbs |
| Radial Misalignment | 3° Max |
| Axial Misalignment | .010” Max |
| Environmental | |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Temperature Rating | -65°C to +165°C |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMP |
| Gender | Jack (Female) |
| Orientation (Body) | Right Angle |
| Coupling | Push-on |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Right Angle |
| Cable Type | 0.085 Flexible Coax |
| Cable Length | 6" |
| Electrical | |
| Frequency | 11 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 500 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - LD | 500 |
| Mating Cycles - SB | 1000 |
| Mating Cycles - FD | 100 |
| Insertion Force - LD | 5.0 lbs |
| Insertion Force - SB | 3.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Withdrawal Force - FD | 9.0 lbs |
| Radial Misalignment | 3° Max |
| Axial Misalignment | .010” Max |
| Environmental | |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Temperature Rating | -65°C to +165°C |
Customers Also Viewed

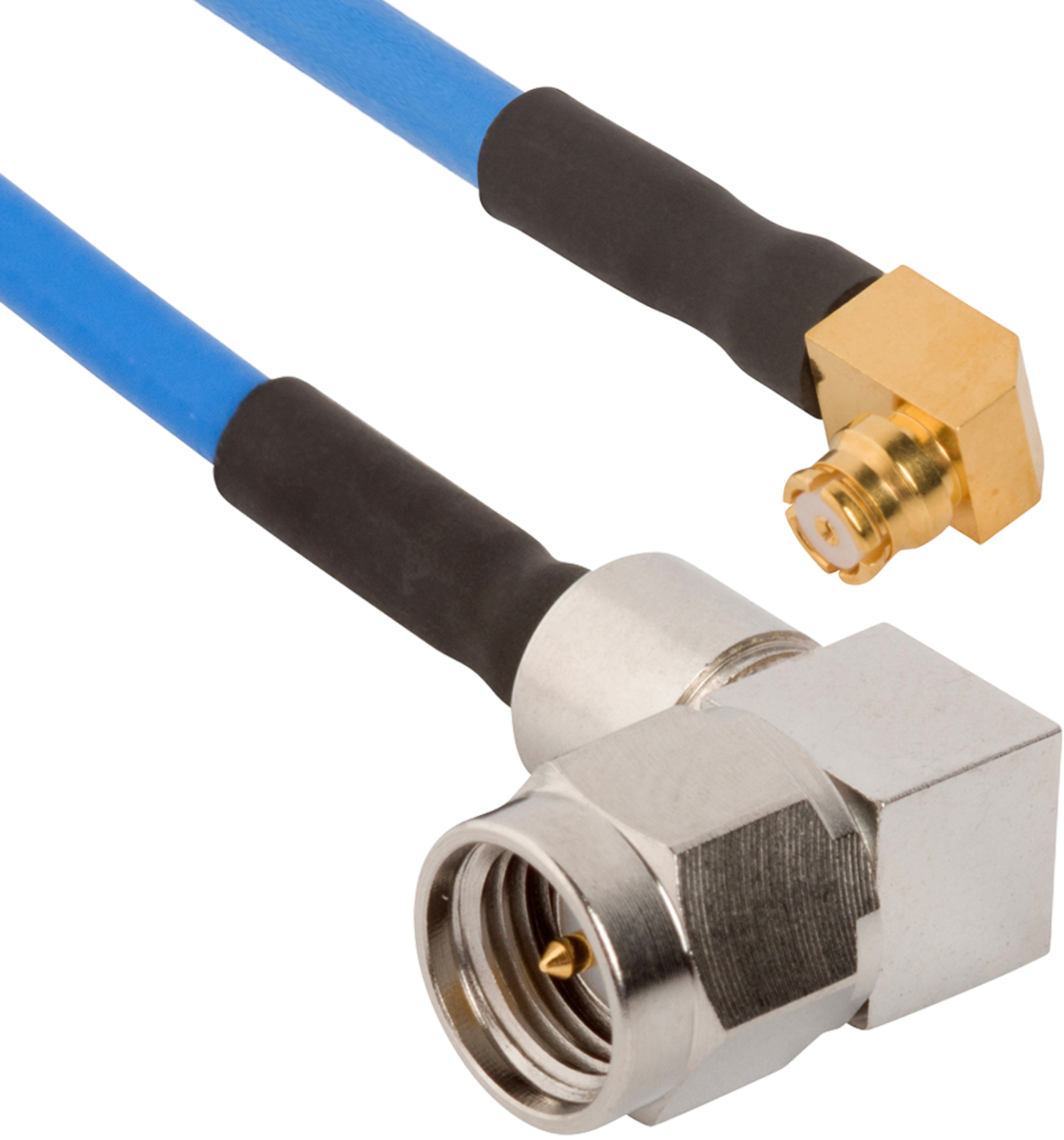

Part # 7012-1328
SMP Female R/A to SMA Male R/A 12" Cable Assembly for .085 Cable"
Available Inventory: 433
7012-1328
SMP Cable Assemblies 7012-1328
Part # 7012-1330
SMP Female R/A to SMA Male R/A 6" Cable Assembly for .047 Cable"
Available Inventory: 106
7012-1330
SMP Cable Assemblies 7012-1330

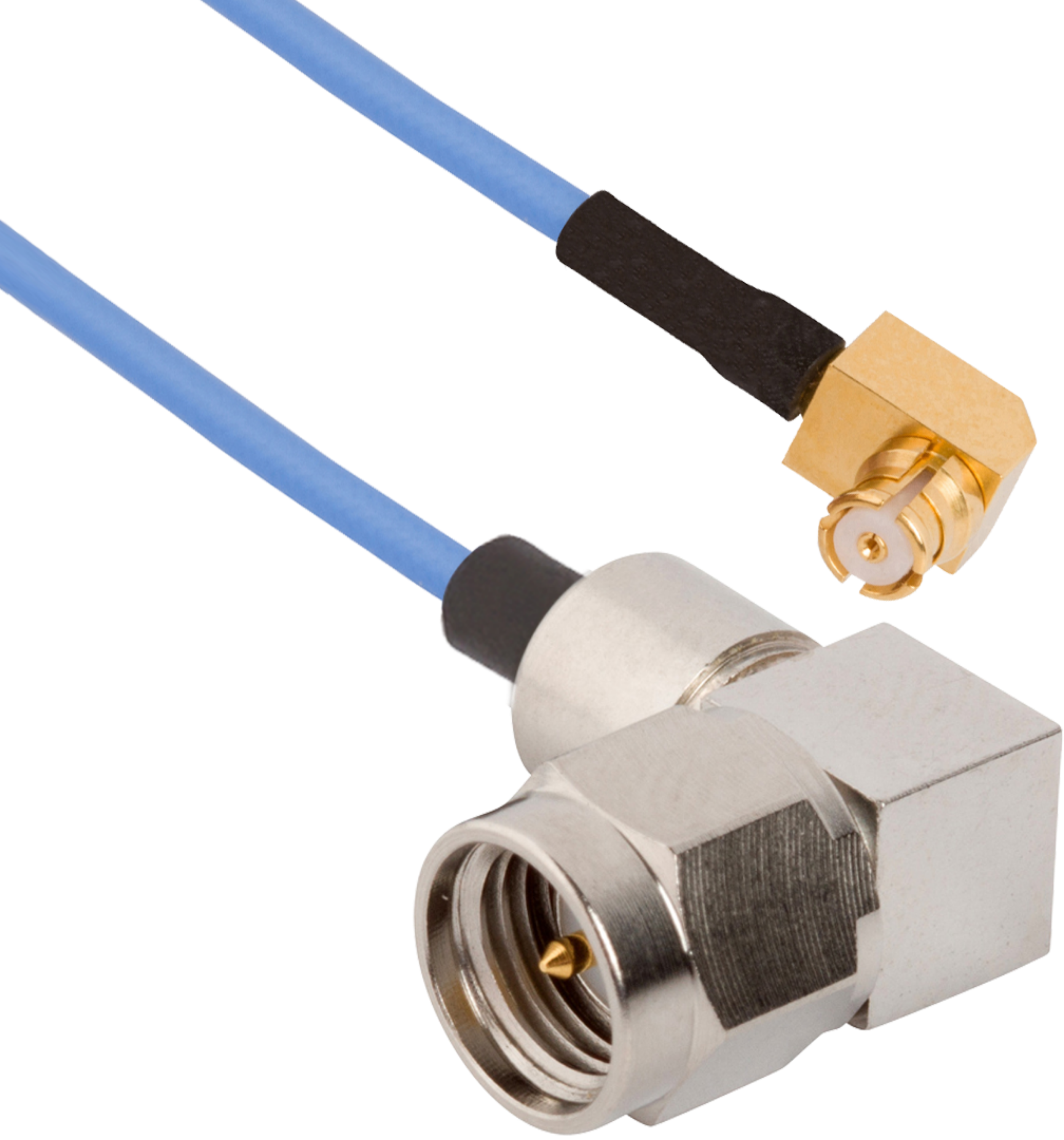

Part # 7012-1331
