Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMPM |
| Orientation (Body) | Straight |
| Gender | Plug (Male) |
| Detent | Smooth Bore |
| Coupling | Push-on |
| Termination Style | Solder (Pre-Tinned) |
| Mounting Type | PCB Vertical Launch |
| Finish | Gold |
| Style | Glass Seal |
| Family | Pre-Tinned |
| Number of Ports | Single |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 40 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles - SB | 1000 |
| Mating Cycles - LD | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 3.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Insertion Force - LD | 5.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Axial Misalignment | .010” Max |
| Withdrawal Force - FD | 9.0 lbs |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
3211-20028
SMPM Connectors 3211-20028

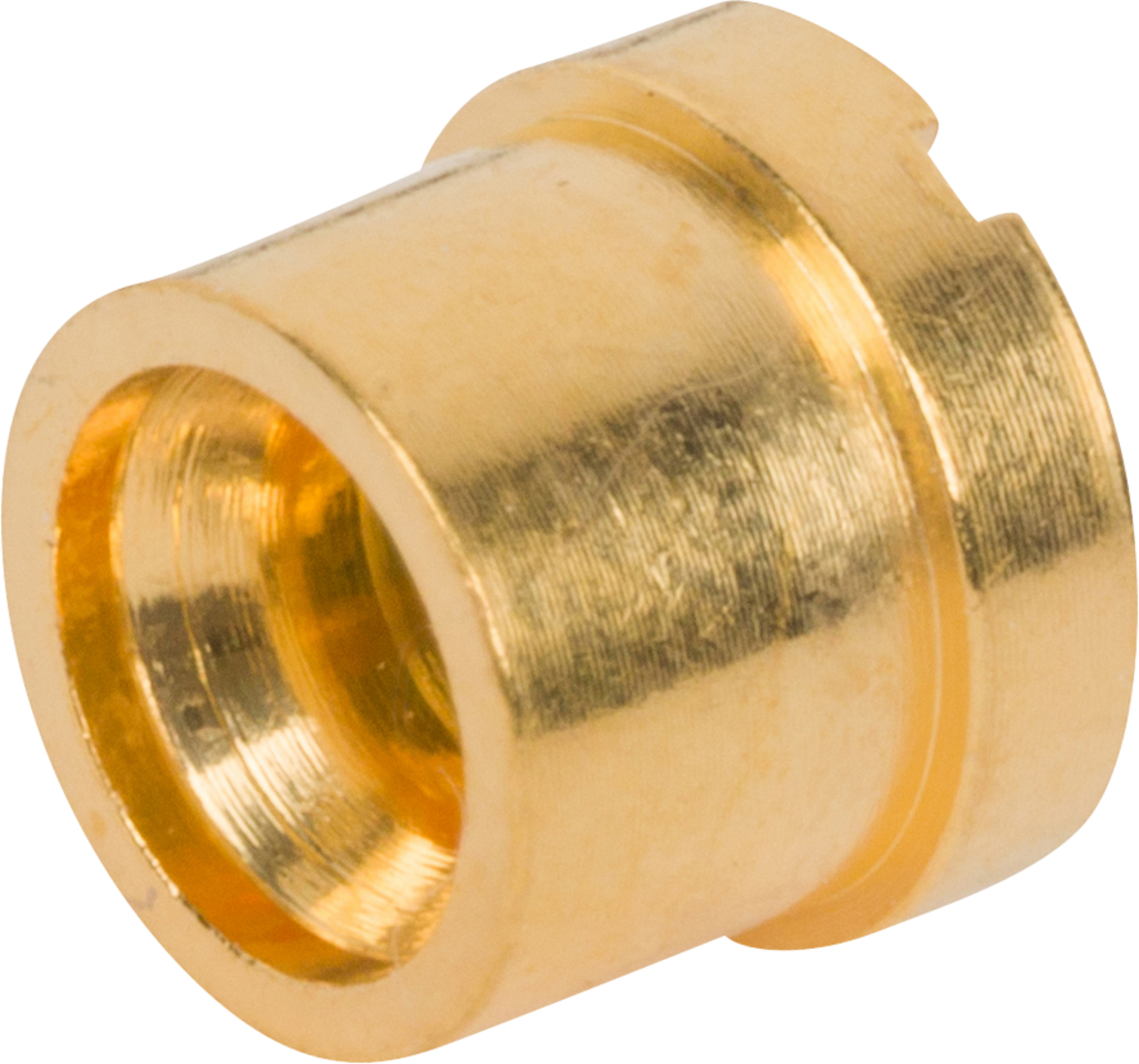

Part # 3211-20034
SMPM Male PCB Surface Mount Connector (Glass Seal, Pre-Tinned), FD
Available Inventory: 199
3211-20034
SMPM Connectors 3211-20034

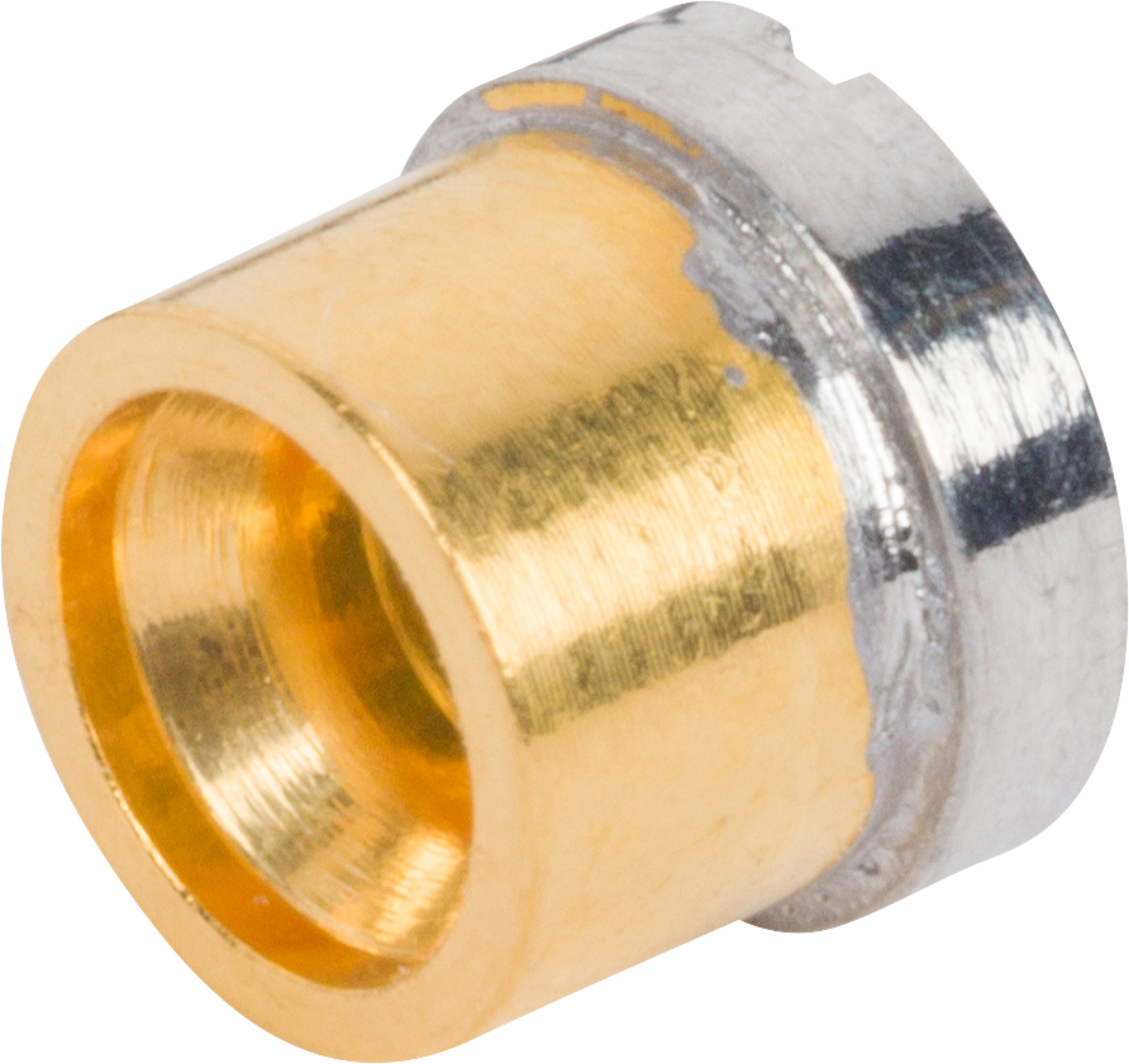

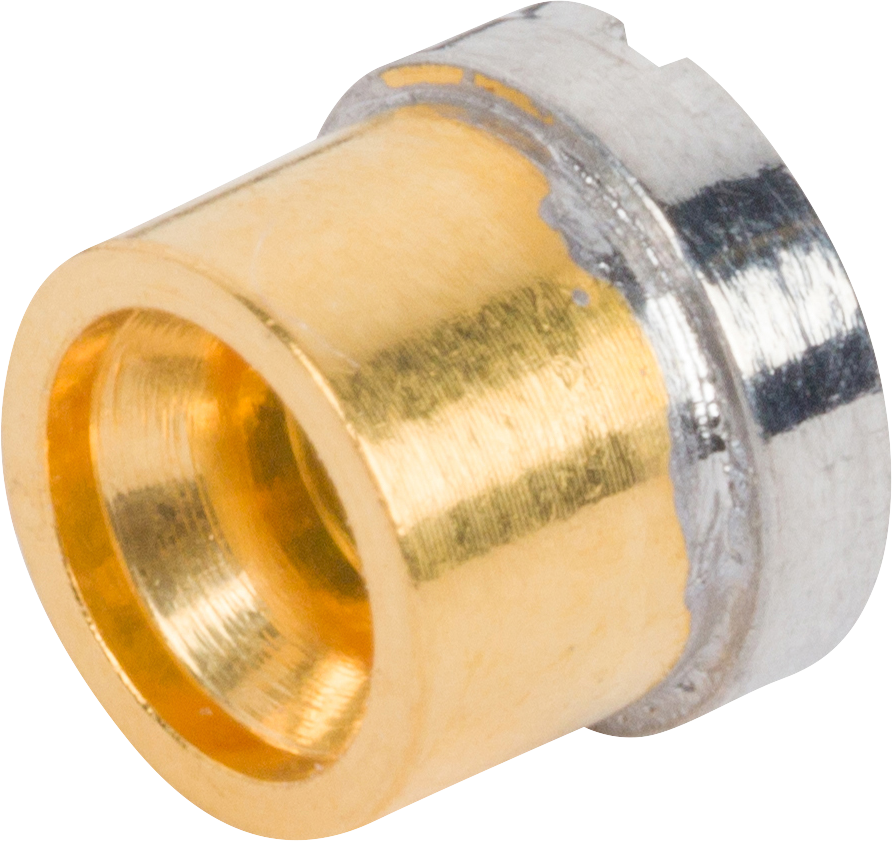

Part # 3211-20033
