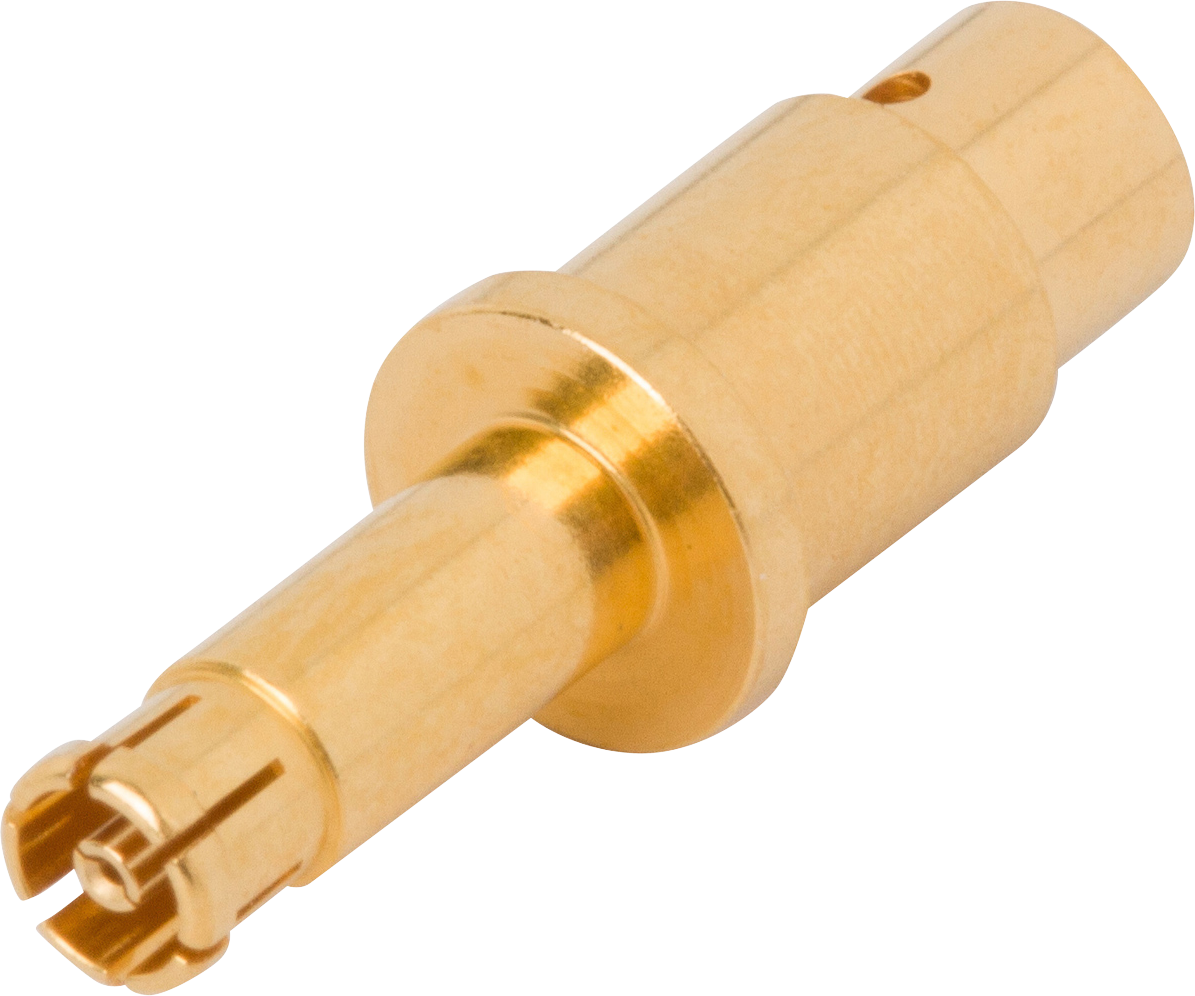

Products specifications
| Attribute name | Attribute value |
|---|---|
| Gender | Pin |
| RF Series | SMPM |
| Coupling | Push-on |
| Style | Size 12 |
| Orientation (Body) | Straight |
| Mounting Type | D38999 Series I, II, III and IV |
| Termination Style | Solder |
| Number of Ports | Single |
| Finish | Gold |
| Cable Type | 0.085 Flexible Coax, 0.087-LL Flexible Coax |
| Family | SOSA Aligned |
| Cable Builder Attributes | |
| Mating Connector | SF1115-6086 |
| Electrical | |
| Frequency | 65 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - FD | 4.5 lbs |
| Insertion Force - SB | 2.5 lbs |
| Withdrawal Force - FD | 6.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Radial Misalignment | 3° Max |
| Axial Misalignment | .010” Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
Customers Also Viewed
8001-4107

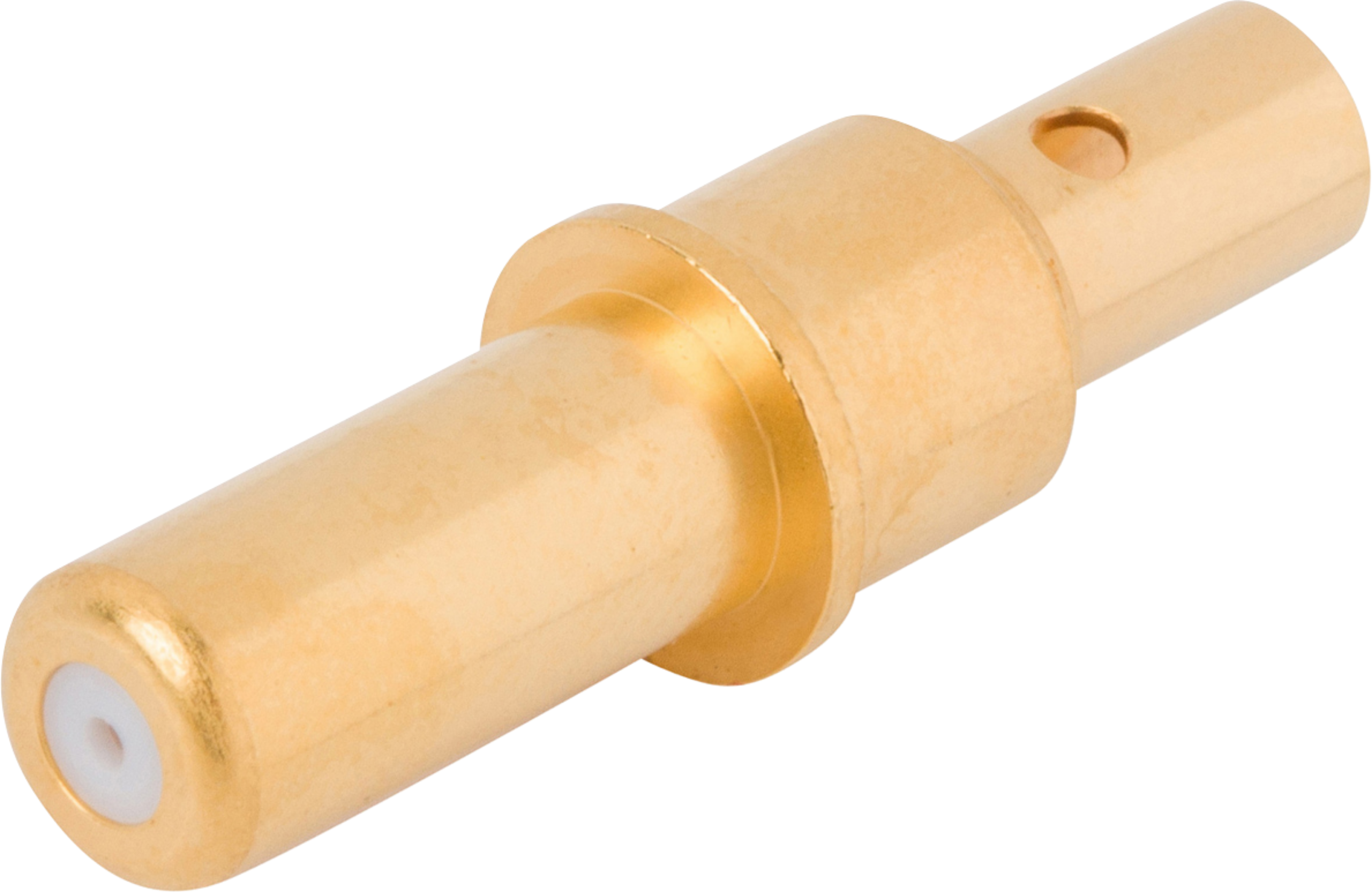

NSME Connectors 8001-4107
9921-40001

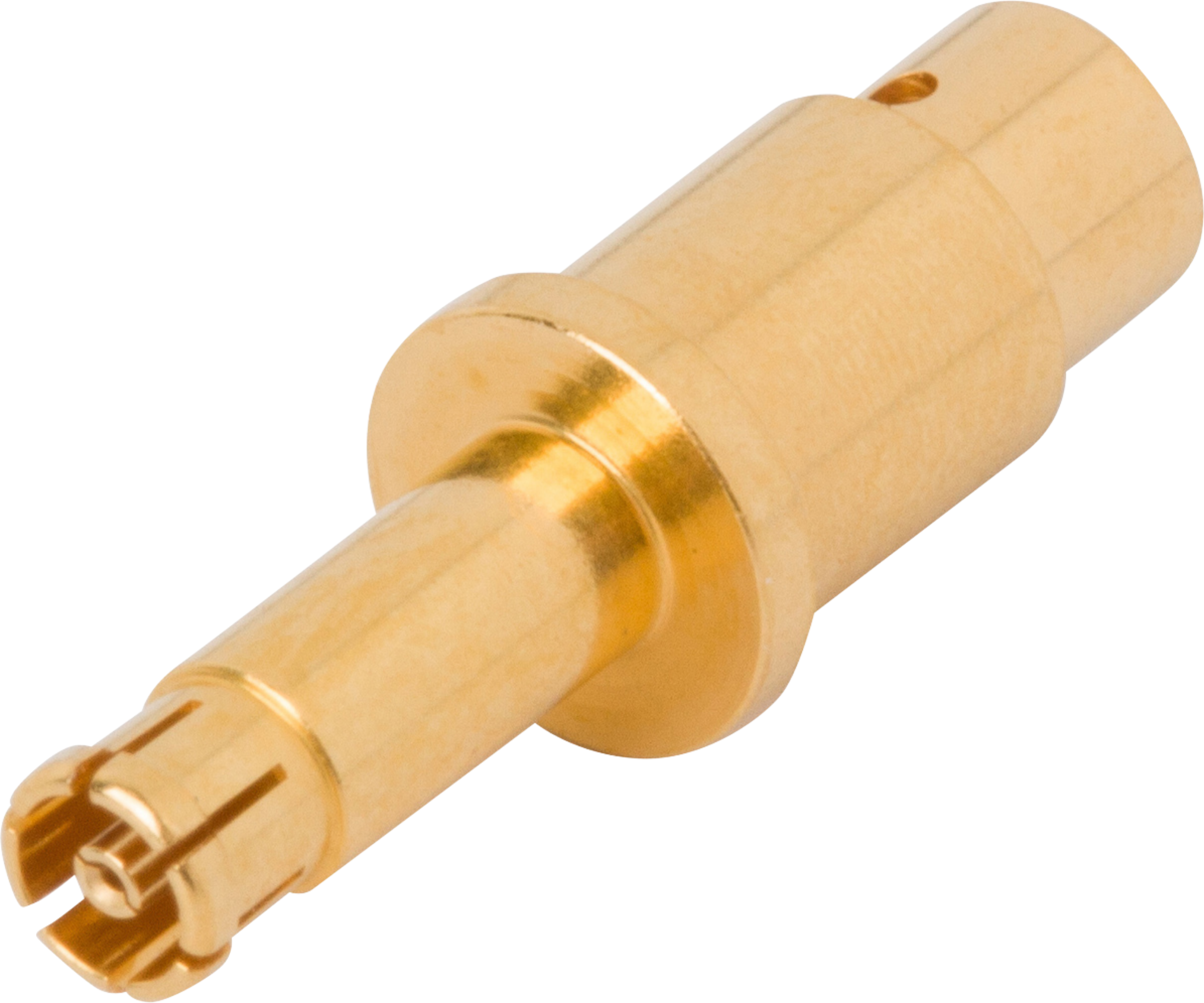

SMPS Connectors 9921-40001
SF3211-6004

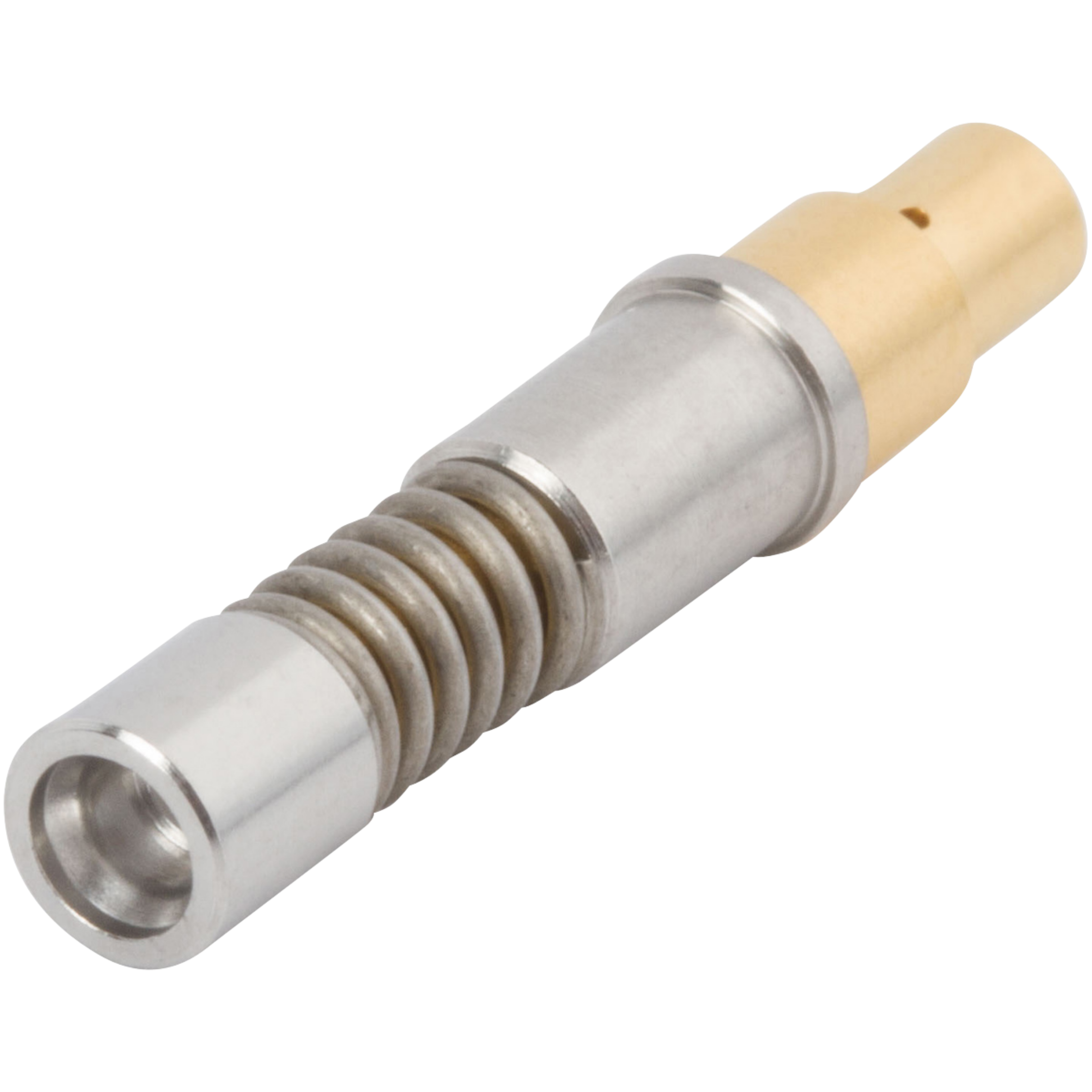

SMPM Connectors SF3211-6004
