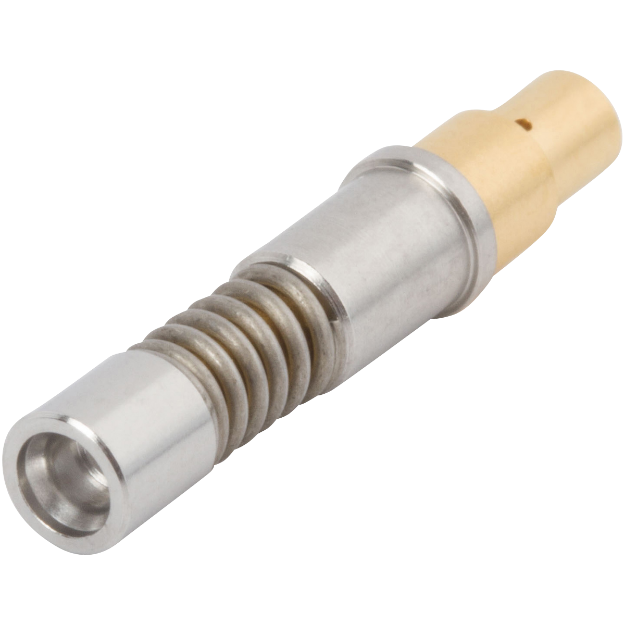

SMPM Socket D38999 Contact (Size 12) for .085 Cable
P/N: SF3211-6004

Name: SMPM Socket D38999 Contact (Size 12) for .085 Cable
SKU: SF3211-6004
Price: 50.00 USD
Availability: OutOfStock

Loading...

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Downloads

Products specifications

Attribute name	Attribute value
Gender	Socket
RF Series	SMPM
Orientation (Body)	Straight
Coupling	Push-on
Mounting Type	D38999 Series I, III and IV
Termination Style	Solder
Style	Size 12
Number of Ports	Single
Finish	Passivated
Cable Type	0.085 Flexible Coax, 0.087-LL Flexible Coax
Family	SOSA Aligned
Cable Builder Attributes
Mating Connector	1115-6088
Electrical
Frequency	65 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mechanical
Mating Cycles - SB	500
Insertion Force - FD	4.5 lbs
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Withdrawal Force - FD	6.5 lbs
Withdrawal Force - SB	1.5 lbs
Radial Misalignment	3° Max
Axial Misalignment	.010” Max
Environmental
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Temperature Rating	-65°C to +165°C
Vibration	MIL-STD-202, Method 204, Condition D
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Shock	MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Product tags

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:20:31 AM

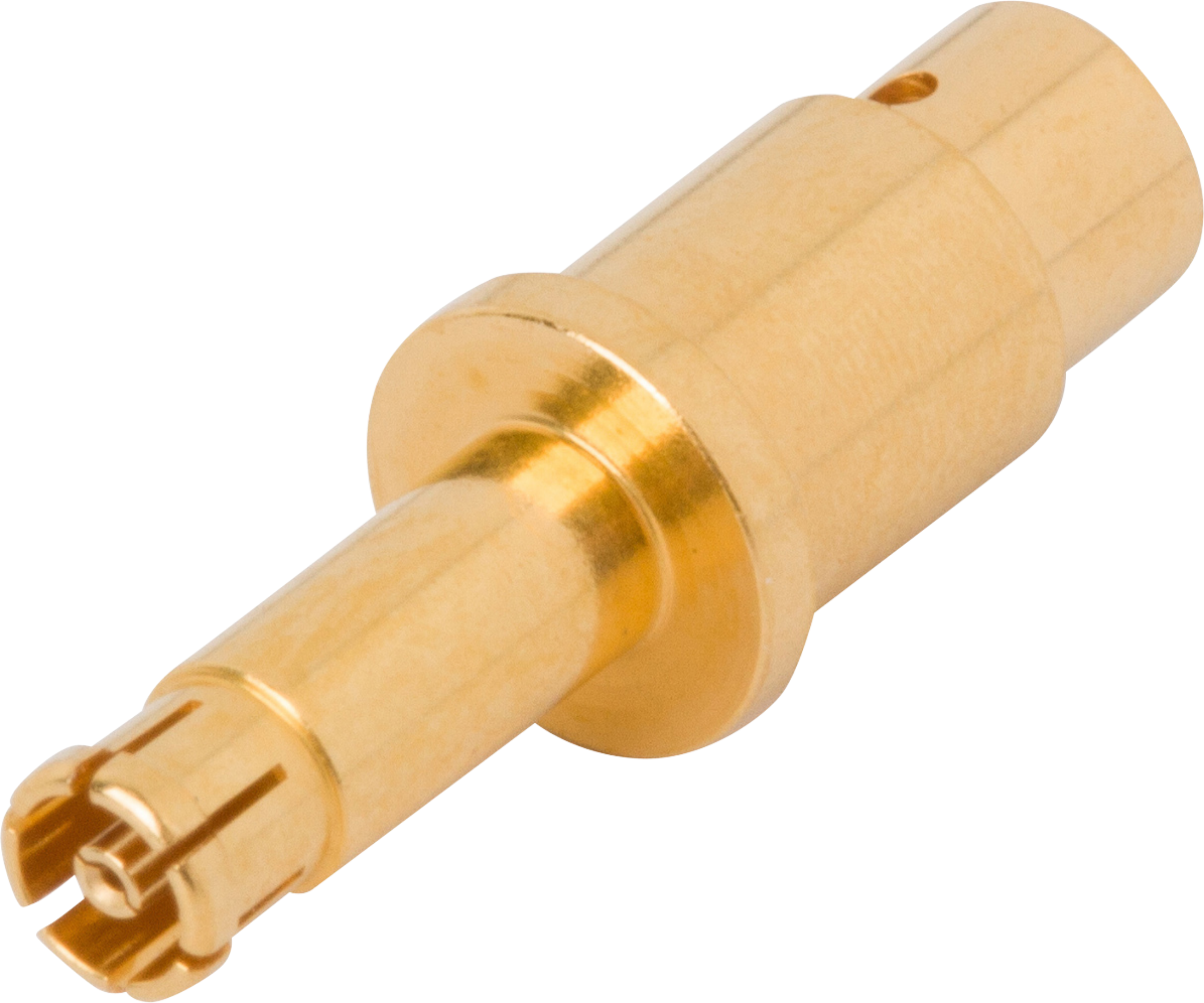

SMPM Pin D38999 Contact (Size 12) for .085 Cable
